Description & Operation

Antenna for the radio is integral with the windshield. It connects to the radio by a clip located either under a trim cover on the dashboard, or under the windshield A-pillar trim. See Fig 1 or Fig 2 . For Porsche 968 models, the convertible vehicles utilize the same windshield antenna. Plug is located just below the windshield and is accessible with the hood open. Porsche 968 hardtop vehicles use a roof-mounted antenna. See Fig 3 and Fig 4 .

Fig 1: Identifying Antenna Clip Under Dash Trim

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 2: Identifying Antenna Clip Under A-Pillar Trim

Courtesy of PORSCHE OF NORTH AMERICA, INC.

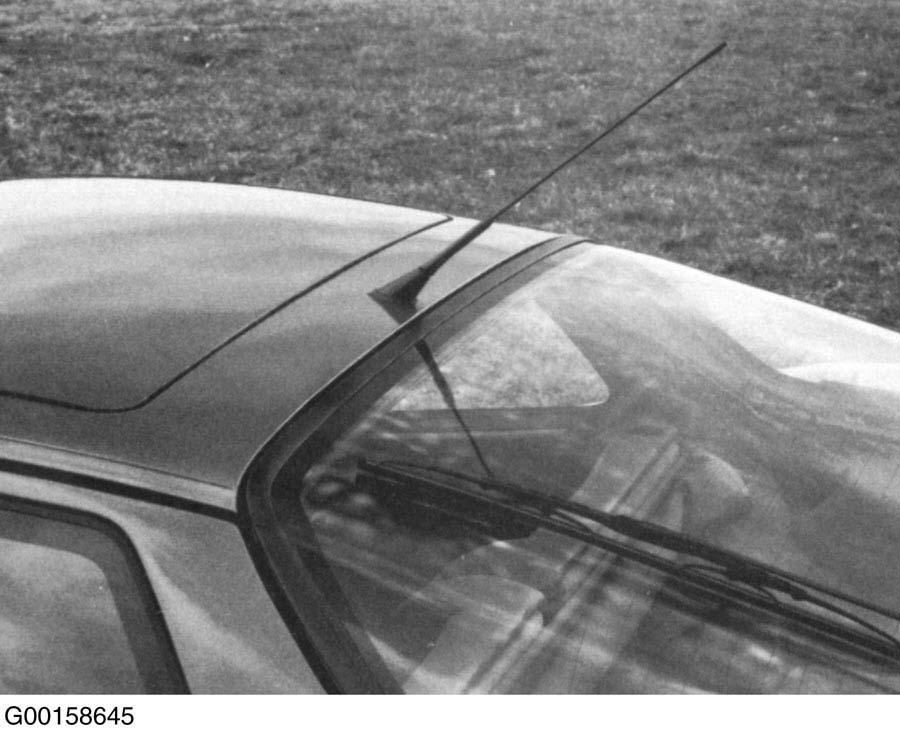

Fig 3: Porsche 968 Hardtop Roof-Mounted Antenna

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 4: Porsche 968 Convertible Antenna Connector Plug

Courtesy of PORSCHE OF NORTH AMERICA, INC.
