Removing And Installing GPS Antenna: Removal

  1. Unclip cover from behind and take out.

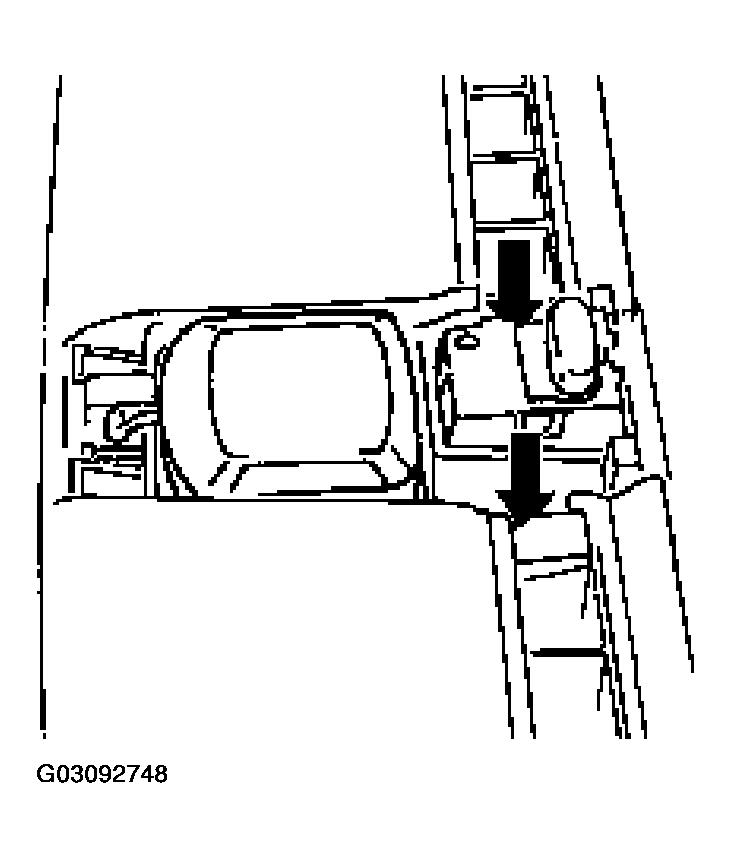

    Fig 1: Unclipping Cover From Behind
    G03092748Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Undo both Torx T20 fastening screws with an angled screwdriver. Caution: Fastening screws could fall out.
  3. Remove housing with GPS antenna, disconnect electrical plug connection on the bottom, and remove GPS antenna (magnet).
