DTC P1503: Throttle Jacking Unit, Position Error - Signal Implausible: Wiring Diagram

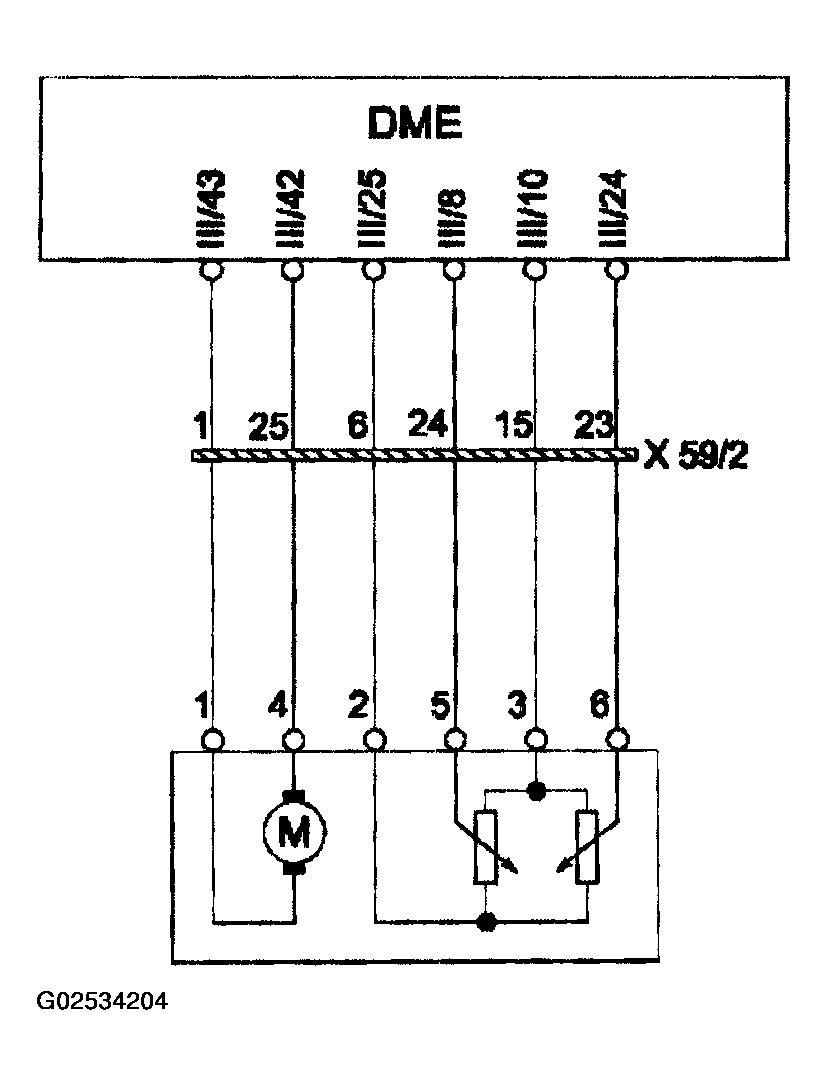

Fig 1: DTC P1503 Wiring Diagram

G02534204

Courtesy of PORSCHE OF NORTH AMERICA, INC.
