Assembling intake distributor

Tighten the micro-encapsulated hexagon-head bolts M6 x 16 in the prescribed sequence.

Tightening torque 9.7 Nm (7 ftlb.).

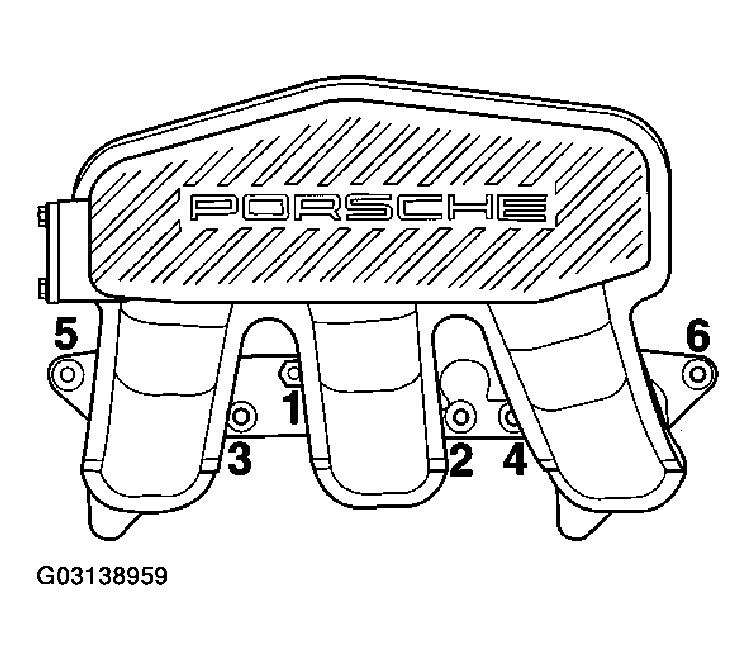

Fig 1: Assembling Intake Distributor (Manifold)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
