Removing And Installing Valve Tappets - Engine Removed: Tools

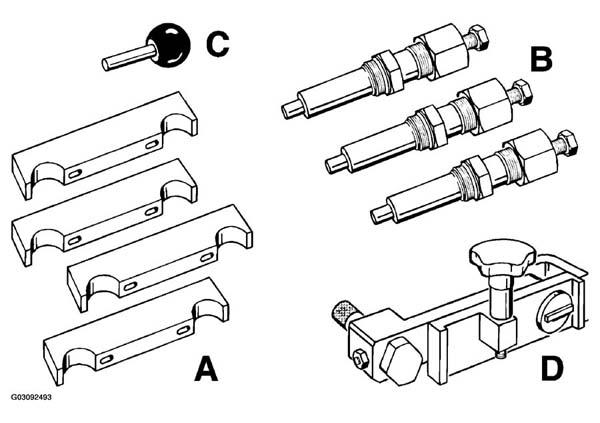

Fig 1: Identifying Special Tools - Valve Tappets

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS - VALVE TAPPETS

Item

Designation

Special tool

Explanation

A⁽¹⁾

Holding-down device for camshafts

9611

1 set = 4 ea.

B⁽¹⁾

Auxiliary chain tensioner for valve timing adjustment

9599

1 set = 3 ea.

C⁽¹⁾

Fixing pin for belt pulley

9595

1 set = 2 ea. (use short fixing pin)

D⁽¹⁾

Locking device for camshafts in timing position

9612

⁽¹⁾	For explanation see Fig 1.
