Removing And Installing Oil Protection Tube - Engine Removed: Installation

  1. Coat sealing rings with tire mounting paste. Push tube onto pressure piece, special tool 9605. Place hand pressure piece, special tool 9604, onto the pressure piece.

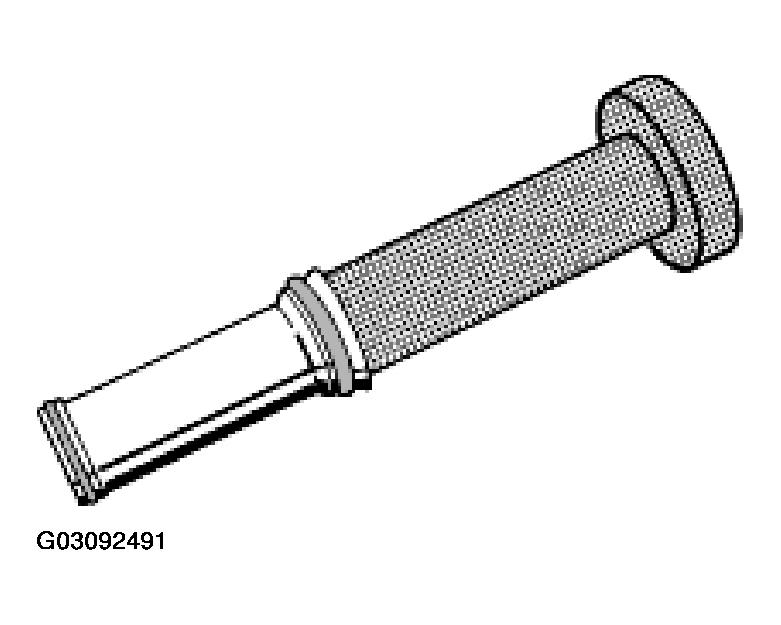

    Fig 1: Pushing Oil Protection Tube Onto Pressure Piece
    G03092491Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Manually press the oil protection tube as far as it will go into the fitted cylinder-head cover.

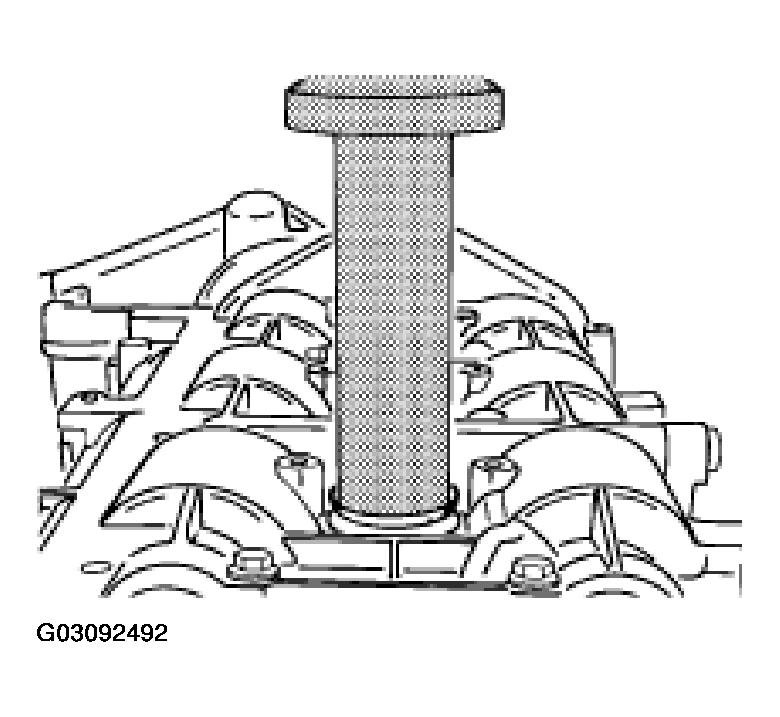

    Fig 2: Pressing Oil Protection Tube Into The Fitted Cylinder-Head Cover
    G03092492Courtesy of PORSCHE OF NORTH AMERICA, INC.
