Wiring Diagrams

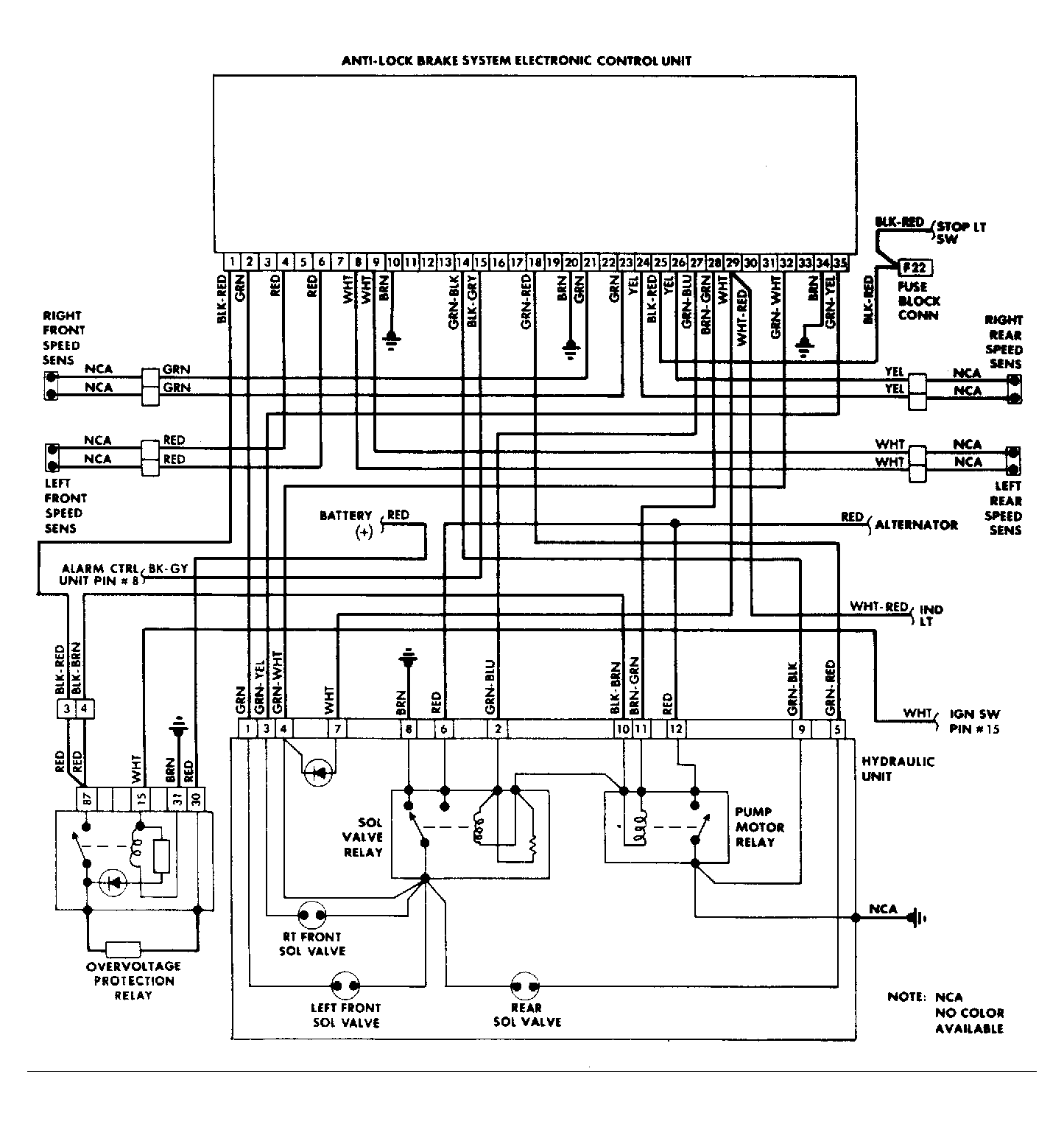

Fig 1: Porsche 928S ABS Wiring Diagram

G50793

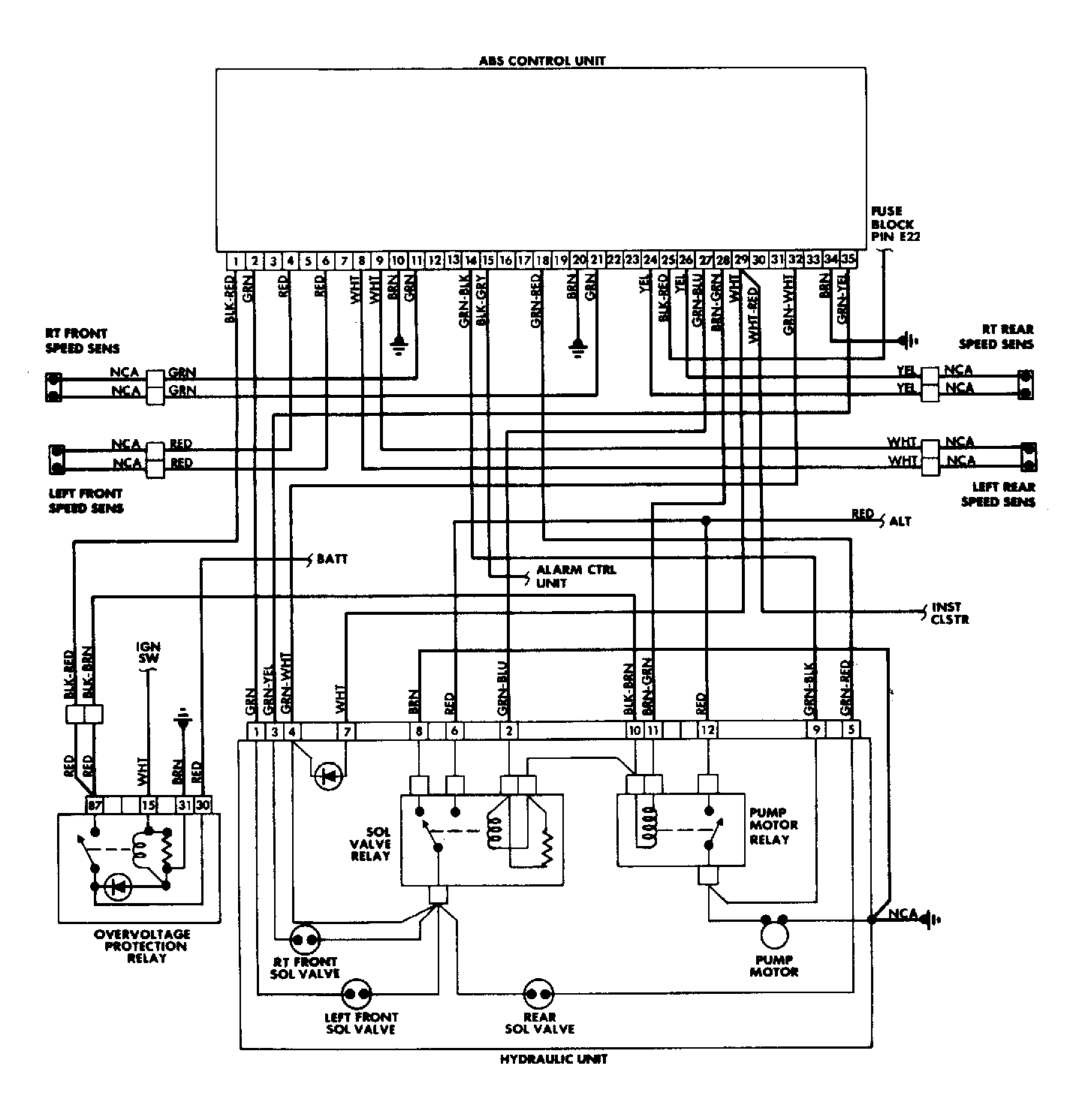

Fig 2: Porsche 944, 944S & 944 Turbo ABS Wiring Diagram

G58278
