Fuel Injection System - BOSCH Cis: Wiring Diagram

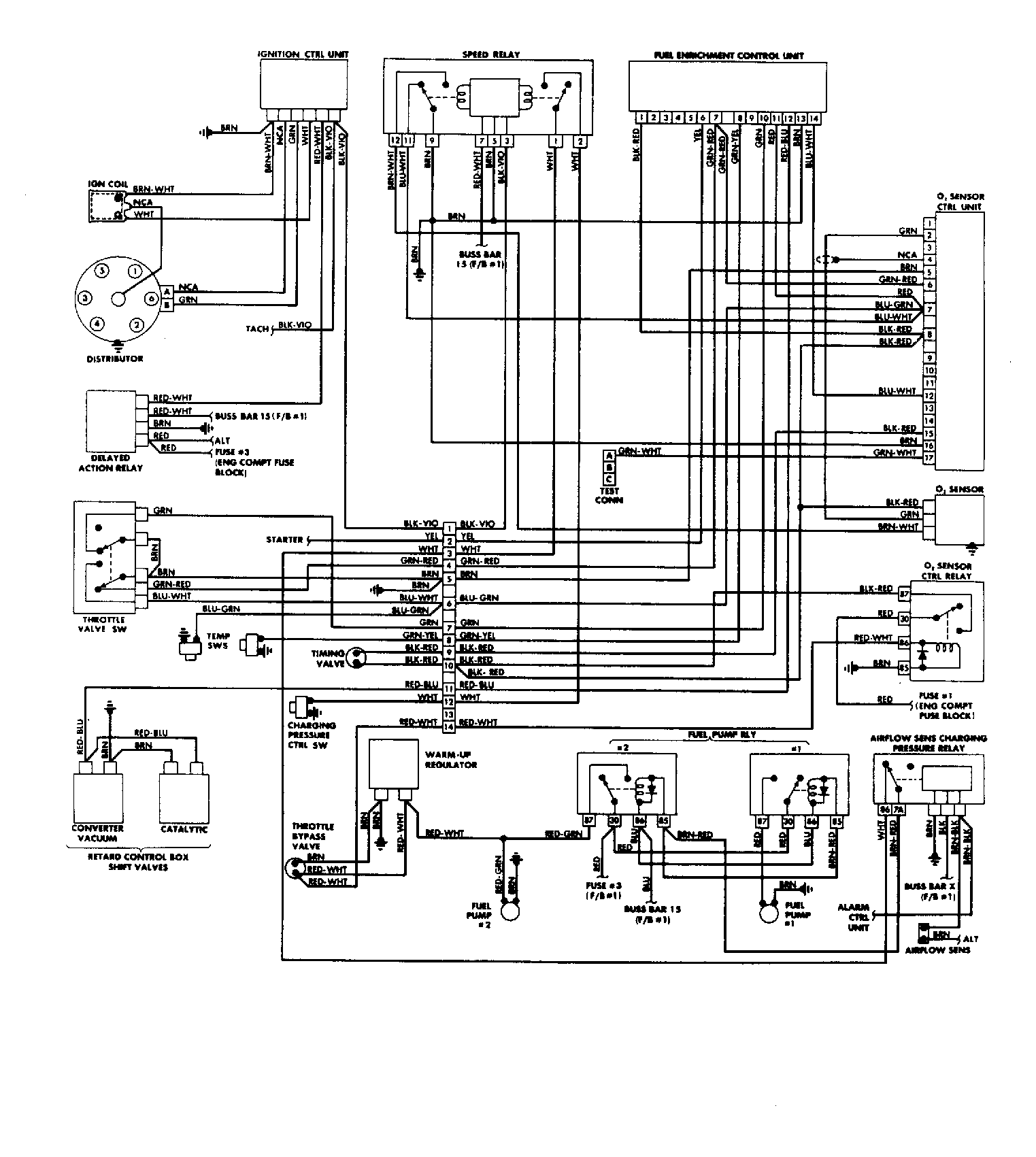

Fig 1: CIS (Lambda) Wiring Diagram for Porsche 911 Turbo

G62314
