Fuel Injection System - BOSCH LH: Wiring Diagram

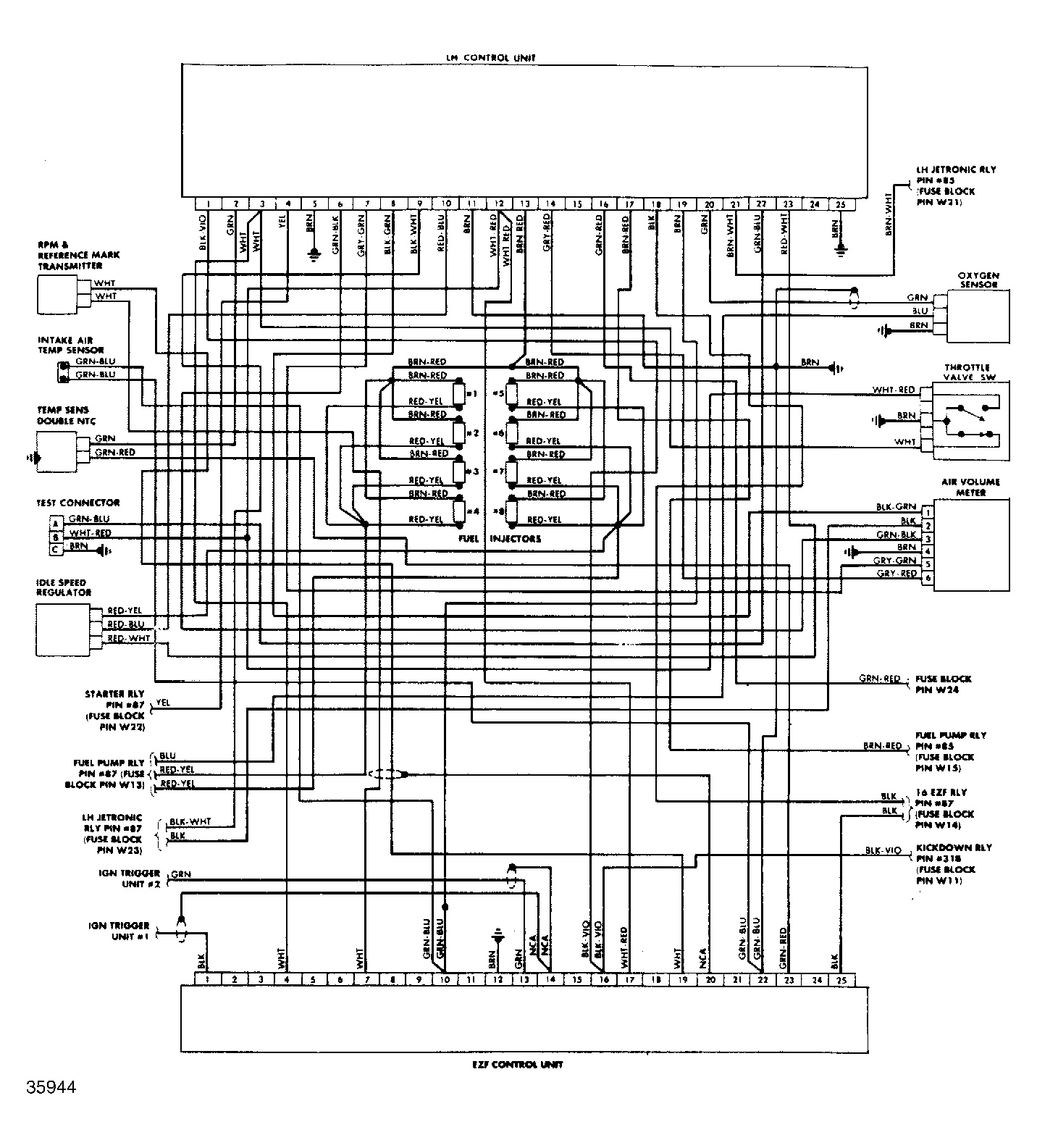

Fig 1: LH Fuel Injection Wiring Diagram (928S)

G35944
