Auxiliary Air Valve
The auxiliary air valve provides additional air during cold engine starts and warm-up. The valve consists of an electrically heated bi-metallic strip, movable disc and air by-pass channel. The heater coil on the bi-metallic strip is energized by the fuel pump relay.

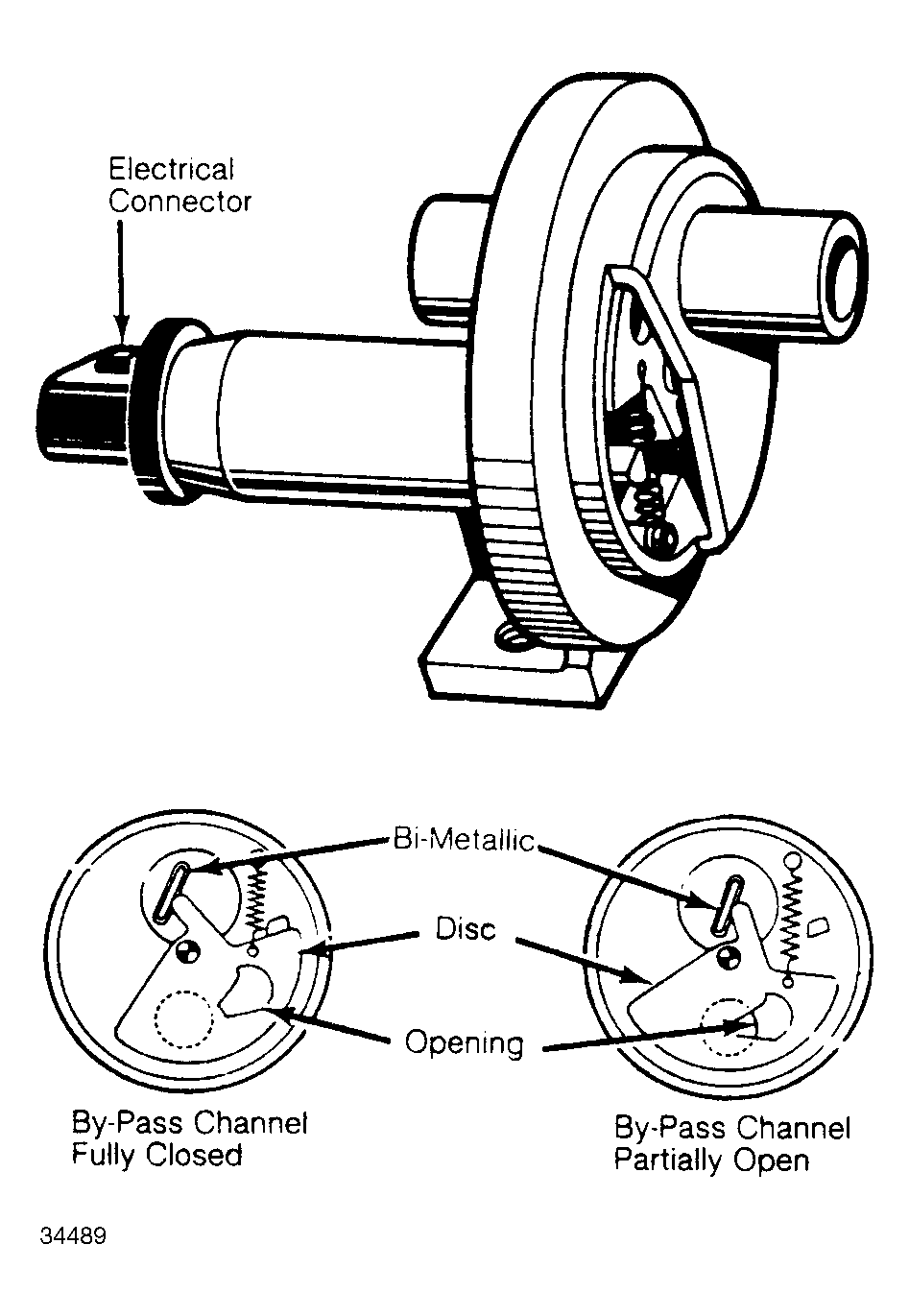

Control of the valve is based upon engine temperature. The air by-pass channel is open when engine is cold and gradually closes as temperature rises. At predetermined temperatures, air by-pass channel is blocked and additional air flow stops. See Fig 1 .
