Fuse Block

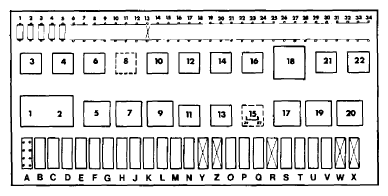

Fuse block is located in passenger footwell. It contains 34 fuses and 22 relays. Two 400mA in-line fuses are located above the fuse panel and protect the security system. Circuits protected by fuses are as follows, from left to right:
- - 16 Amp Fog Lights
- - Not Connected
- - 8 Amp License Light, Engine Compartment Light
- - 8 Amp Switch Illumination Light
- - 16 Amp Cigar Lighter
- - 16 Amp Windshield Wipers
- - Not Used
- - 16 Amp Sunroof
- - 8 Amp Back-Up Lights, Mirror, Rear Wiper, A/C
- - 8 Amp Brake Lights, Automatic Speed Control
- - 8 Amp Instrument Panel Lights
- - 8 Amp Instrument Warning Lights
- - Not Connected
- - 25 Amp Power Seats
- - 16 Amp Power Antenna, Horn, Rear Wiper
- - 25 Amp Electric Radiator Fan
- - 25 Amp Heater, Air Conditioning Blower
- - 15 Amp Rear Window Defogger
- - 16 Amp Headlight Motor
- - 16 Amp Headlight Washer
- - 25 Amp Power Windows
- - 16 Amp Fuel Pump
- - 8 Amp Interior Lights, Clock
- - 8 Amp Left Headlight (High Beam)
- - 8 Amp Right Headlight (High Beam)
- - 8 Amp Left Headlight (Low Beam)
- - 8 Amp Right Headlight (Low Beam)
- - 8 Amp Left Side Markers
- - 8 Amp Right Side Markers
- - 8 Amp Front Left Turn Signal
- - 8 Amp Rear Left Turn Signal
- - 8 Amp Front Right Turn Signal
- - 8 Amp Rear Right Turn Signal
- - Not Connected
Relay circuits are below the fuses in the main electrical panel. Other relays include the seat return relay (below seat), the rear wiper relay (at left rear corner behind tool kit tray) and the seat belt relay (behind radio).
- 1 & 2 - Defogger
- 3 - Not Used
- 4 - Not Used
- 5 - Hazard Flasher Unit
- 6 - Window Controls
- 7 - Headlight Washer Pump
- 8 - Not Used
- 9 - Not Used
- 10 - Horns
- 11 - Not Used
- 12 - Fog Lights
- 13 - Intermittent Wiper Speed Control
- 14 - Starter Relay Bridge
- 15 - Washer Pump
- 16 - EFI Control Unit
- 17 - Fuel Pump
- 18 - Extra Cooling Fan for A/C
- 19 & 20 - Retractable Headlight Relay
- 21 - Fresh Air Fan
- 22 - Defroster
