Wiring Diagrams: UNDERDASH

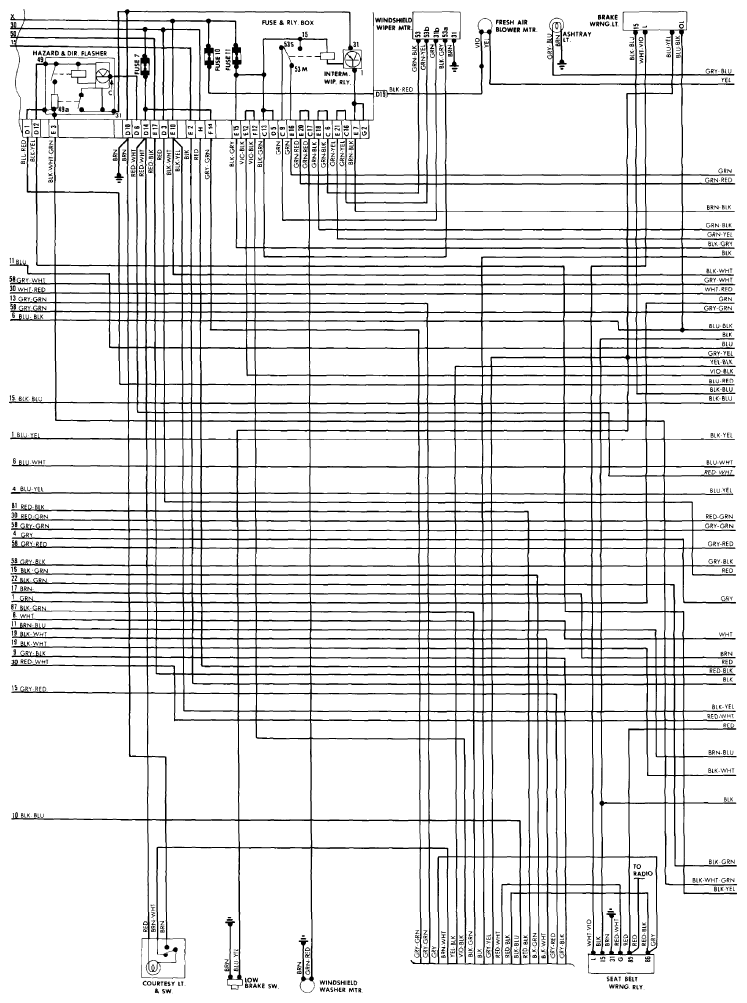

Fig 1: Wiring Diagram - Porsche 924 & 924 TURBO (3 of 4)

G09304510

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
