Steering Column Assembly: Installation

To install, reverse removal procedures. Tighten attaching shear bolts until heads break off.

1. To install, reverse removal procedures. Tighten shear bolts retaining column to panel until heads break off.

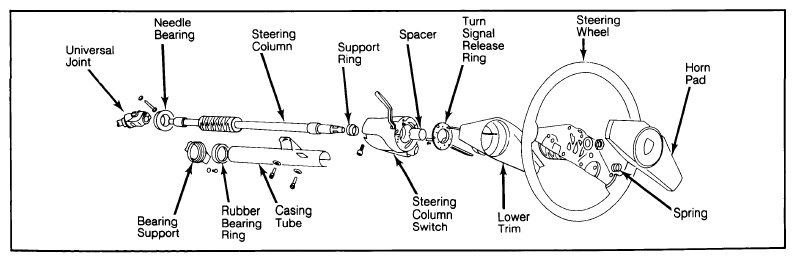

   Fig 1: Exploded View Of Porsche 924 Steering Column

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Steering must be centered and hub lubricated when installing steering wheel. Tighten to specified torque with spokes in horizontal position.
