924 (Front & Rear)

  1. Front height is adjusted by changing front spring. Spring plate removal is not required to adjust rear height at 2-piece spring plate. Loosen mounting bolt and adjust vehicle height with eccentric. See  Fig 1 .
  2. Height should be 0.319 - 0.331" (8.1 - 8.4 mm) when measured from torsion bar center to center of wheel.
    NOTE: If spring plate angle is 19° with stabilizer bar or 23° 40' without stabilizer bar, vehicle height is correct.

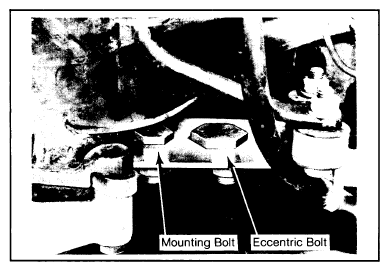

    Fig 1: Location Of 924 & 944 Rear Riding Height & Camber Adjusting Bolts
    G09358447Courtesy of PORSCHE CARS NORTH AMERICA, INC.
