PORSCHE Vacuum Diagrams
PORSCHE Vacuum Diagrams

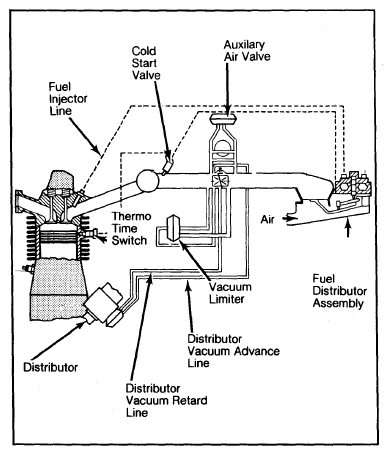

Fig 1: Porsche 911SC Vacuum Diagram
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

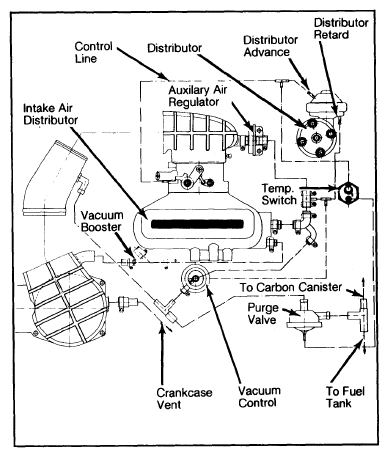

Fig 2: Porsche 924 Vacuum Diagram
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

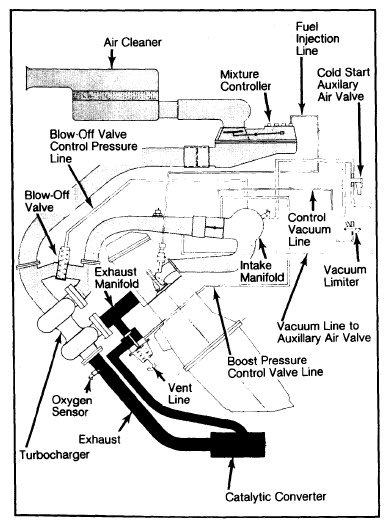

Fig 3: Porsche 924 Turbo Vacuum Diagram
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

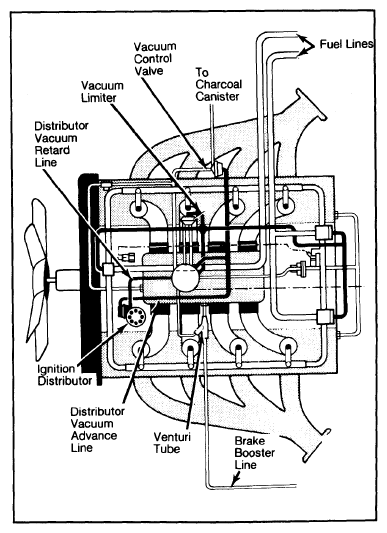

Fig 4: Porsche 928 Vacuum Diagram
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

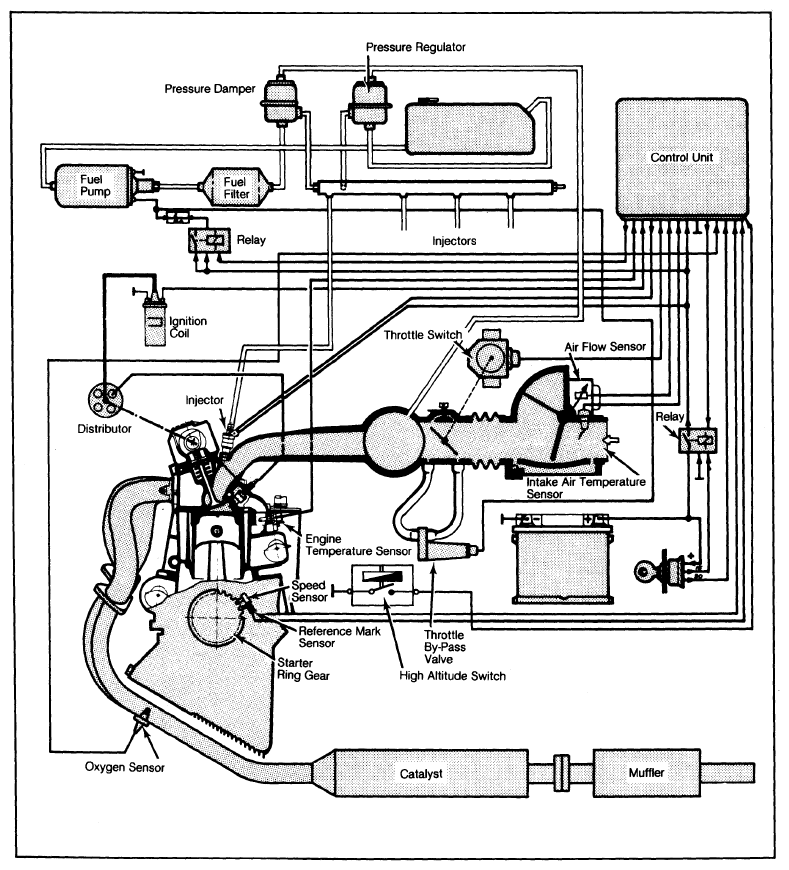

Fig 5: Porsche 944 Exhaust Emission System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
