Fuse Blocks, Flashers & Relays
| Manufacturer & Models | Fuse Locations | Flasher Locations | Relay Locations | |
|---|---|---|---|---|
| Honda | ||||
| Accord | 9 | 9 | 5 A/C, Cooling Fans; 9 Others | |
| Civic | 9 | 9 | 5 A/C, Cooling Fans; 9 Others | |
| Prelude | 9 | 9 | 8 Horn, Bypass Valve; 6 A/C, Main, Cooling Fan; 7 Heater Fan; 9 Others | |
| Isuzu & LUV | ||||
| I-Mark | 8 | 9 | 9 Heater; 6 Others | |
| Pickups | 7 | 9 | 4 Glow Plugs; 9 Heater; 7 Fuel Pump; 6 Others | |
| Jaguar | ||||
| XJ6 | 9, 2, 6 | 2 | 9 A/C, Heater; 5 Horn; 2 Back-Up Light, Fuel Pump Protection, Ignition Load, Starter; 6 Dimmer, Cold Start, Fuel Pump | |
| XJS | 9 | 2 | 12 Antenna; 6 Cooling Fan, Dimmer, Horn; 14 Fuel Pump; 4 Starter Injector, Starter; 2 Others | |
| Mazda | ||||
| B2000 & B2200 | 7 | 9 | 4 Check & Choke; 7 Glow Plug; 6 Horn; 8 Buzzer, 3-Point; 9 Others | |
| GLC Hatchback | 9 | 9 | 6 3-Point, Horn; 9 Others | |
| GLC Wagon | 9 | 9 | 6 Check & Choke; 4 Carb. Richer; 5 Horn | |
| RX7 | 9 | 8 | 7 Check & Choke; 8 Others | |
| 626 | 9 | 8 | 6 Check; 8 Others | |
| Mercedes-Benz | ||||
| 240D | 7 | 11 | 12 Antenna; 9 Windows, Defogger; 6 Others | |
| 300D, CD & TD | 7 | 11 | 12 Antenna; 9 Power Windows; 6 Others | |
| 300SD | 7 | 11 | 6 Glow Plug, Antenna; 7 Others | |
| 380SL | 1 | 11 | 12 Antenna; 2 Fuel Pump; 8 Others | |
| 380 SEC & SEL | 1 | 9 | 8 Seat Belt; 12 Antenna; 7 Others | |
| Peugeot | ||||
| 504 | 9 | 9 | 7 Starter; 9 Others | |
| 505 | 7 | 11 | 6 Cooling Fan, Starter; 9 Cruise Control, Fuel Pump; 5 Others | |
| 604 | 9 | 11 | 5 Fan, Coil; 9 Others | |
| Porsche | ||||
| 911SC | 6, 12 | 9 | 6 | |
| 924 & 924 Turbo | 9 | 9 | 9 | |
| 928 | 1 | 3 | 11 Seat Belt; 12 Rear Wiper; 13 Seat Release; 3 Others | |
| 944 | 9 | 9 | 9 Fan, Fuel Pump, A/C, Headlight Washer, Defogger, Horn, Wipers, Turn Signals | |
| Renault | ||||
| Fuego | 9 | 7 | 13 Injector; 7 Others | |
| Le Car | 11 | 10 | 10 Seat Belt | |
| 18i | 9 | 9 | 7 | |
NOTE:

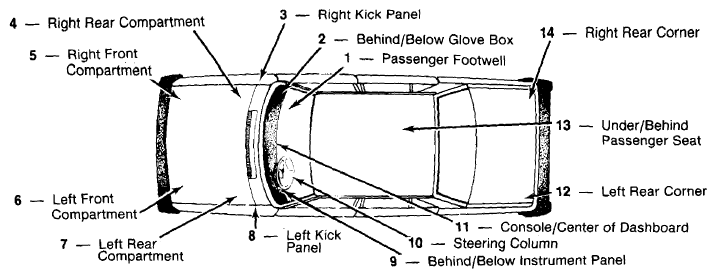

Locate the make and model of the vehicle in the left column. Use the numbers listed under the appropriate column (Fuse Blocks, Flashers or Relays) and refer to Fig 1 above to find the general area where component is located.
