Front Wiper Motor: Installation

Install motor on bracket and connect wiring. Let motor run and return to park position, then install crank arm so wiper arms are parked at bottom of windshield. Replace motor cover.

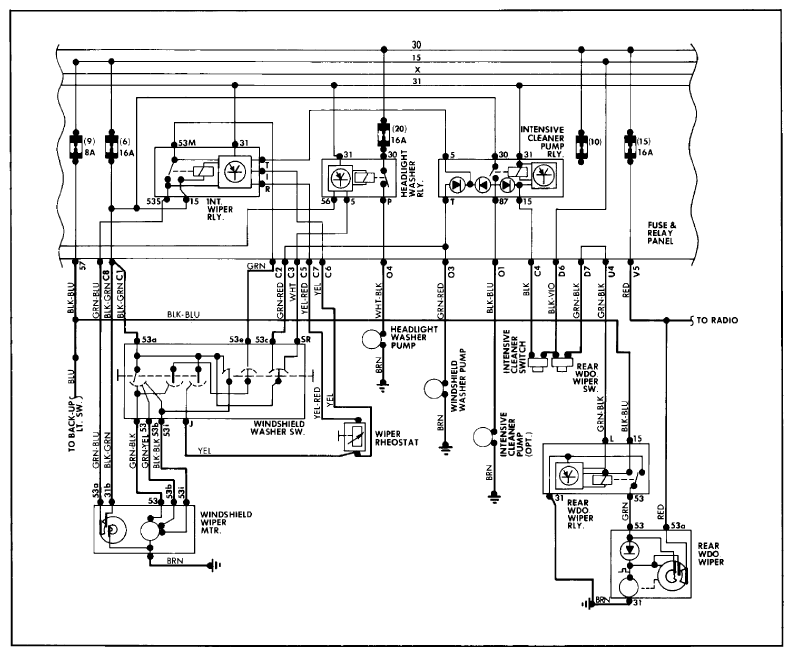

Fig 1: 911SC Wiper System Wiring Diagram

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 2: 924 & 924 Turbo Wiper System Wiring Diagram

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 3: 928 Wiper System Wiring Diagram

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
