Wiring Diagrams: Wiring Diagram

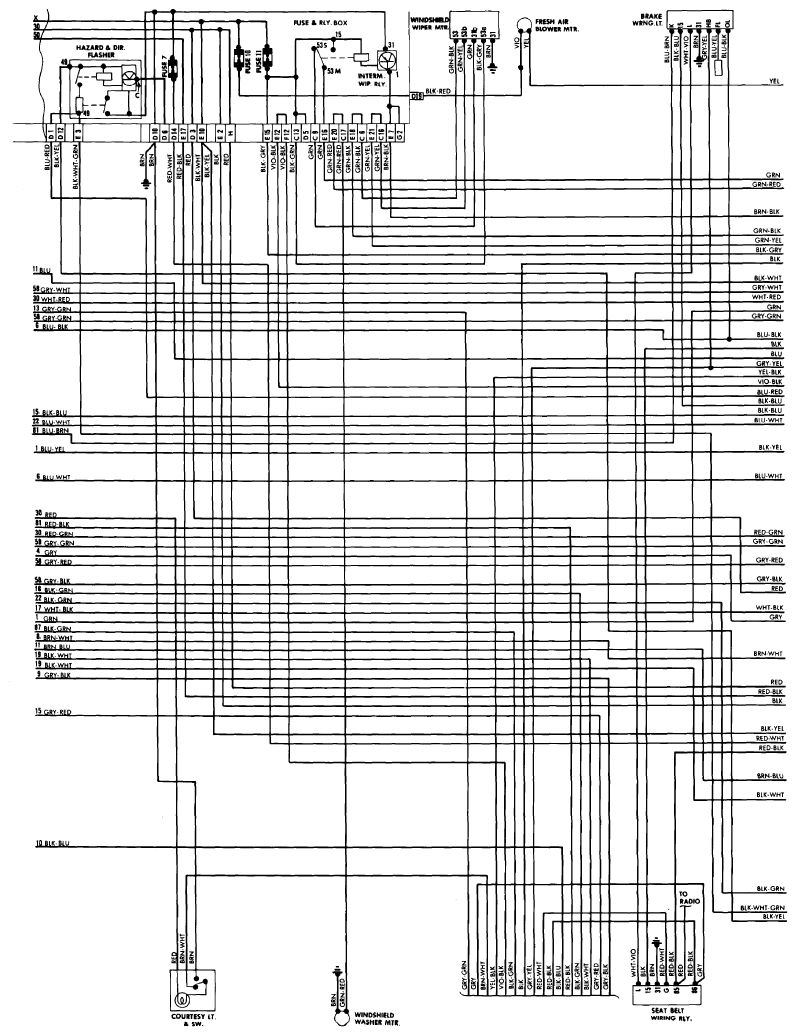

Fig 1: Wiring Diagram - 924 (1 of 2)

G09303814

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

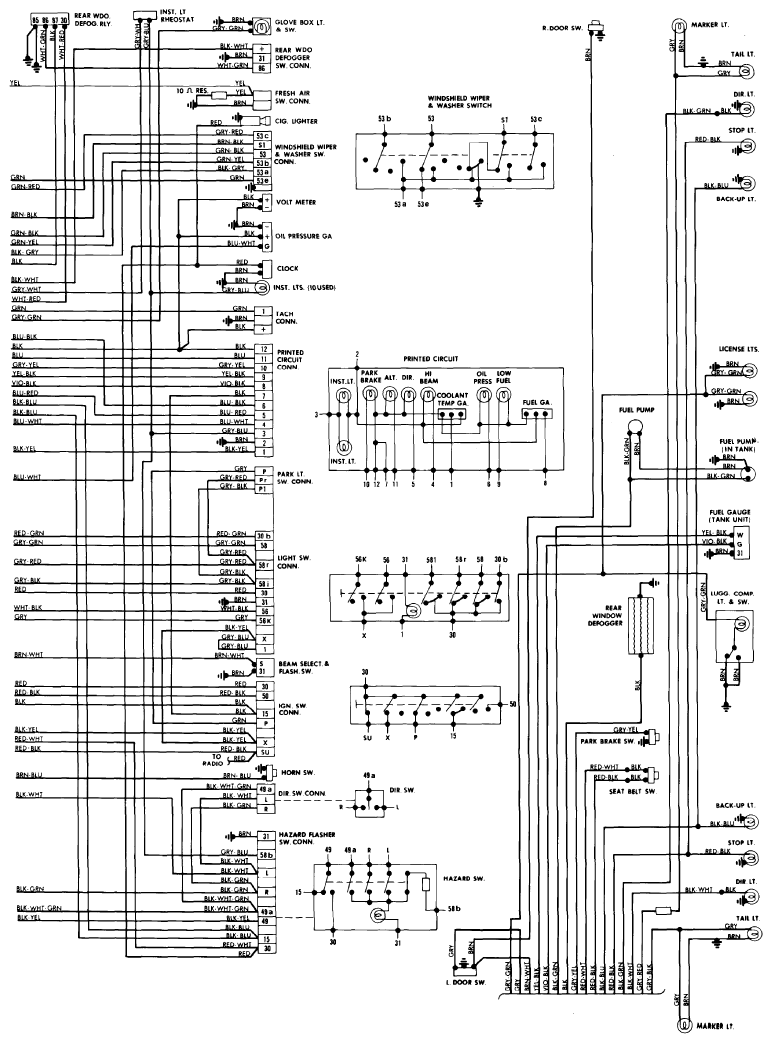

Fig 2: Wiring Diagram - 924 (2 of 2)

G09303815

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
