Wiring Diagram
Wiring Diagrams: Wiring Diagram

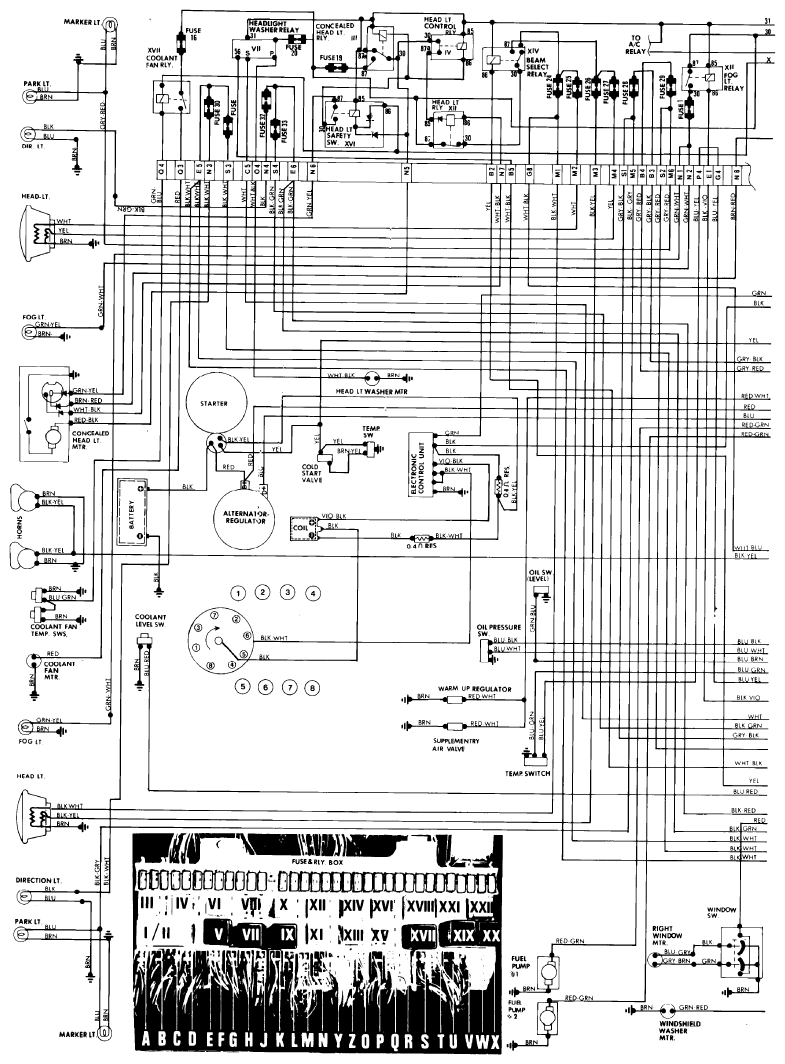

Fig 1: Wiring Diagram - 928 (1 of 4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

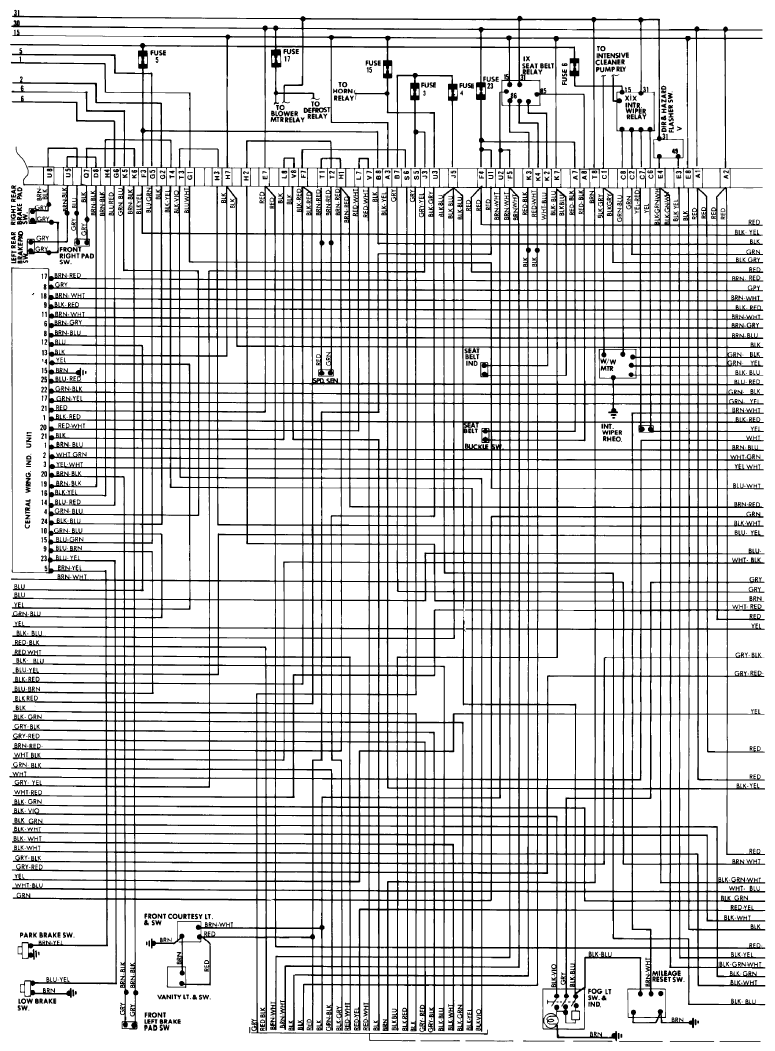

Fig 2: Wiring Diagram - 928 (2 of 4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

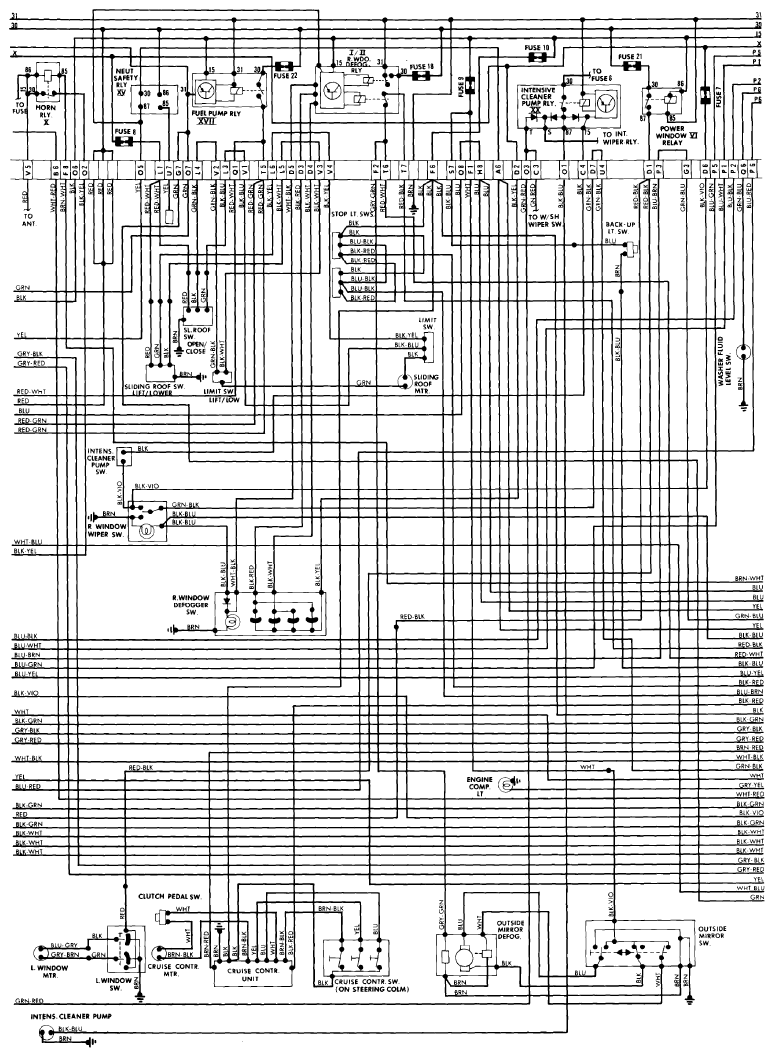

Fig 3: Wiring Diagram - 928 (3 of 4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

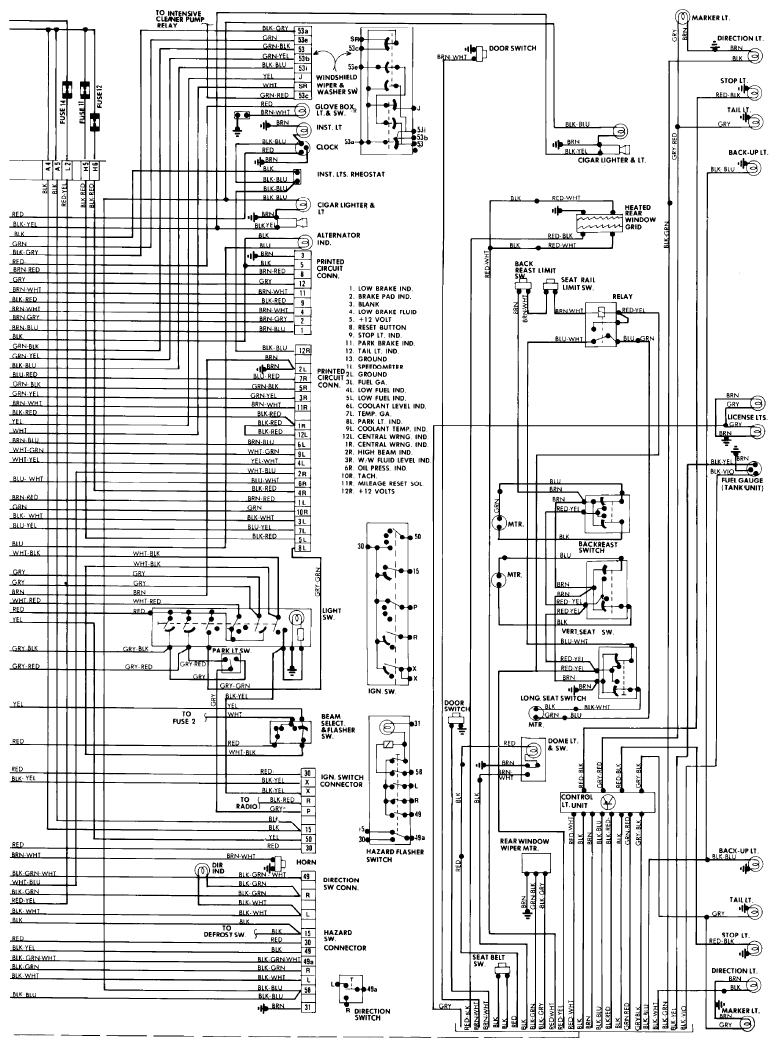

Fig 4: Wiring Diagram - 928 (4 of 4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
