Wiring Diagrams: Wiring Diagram

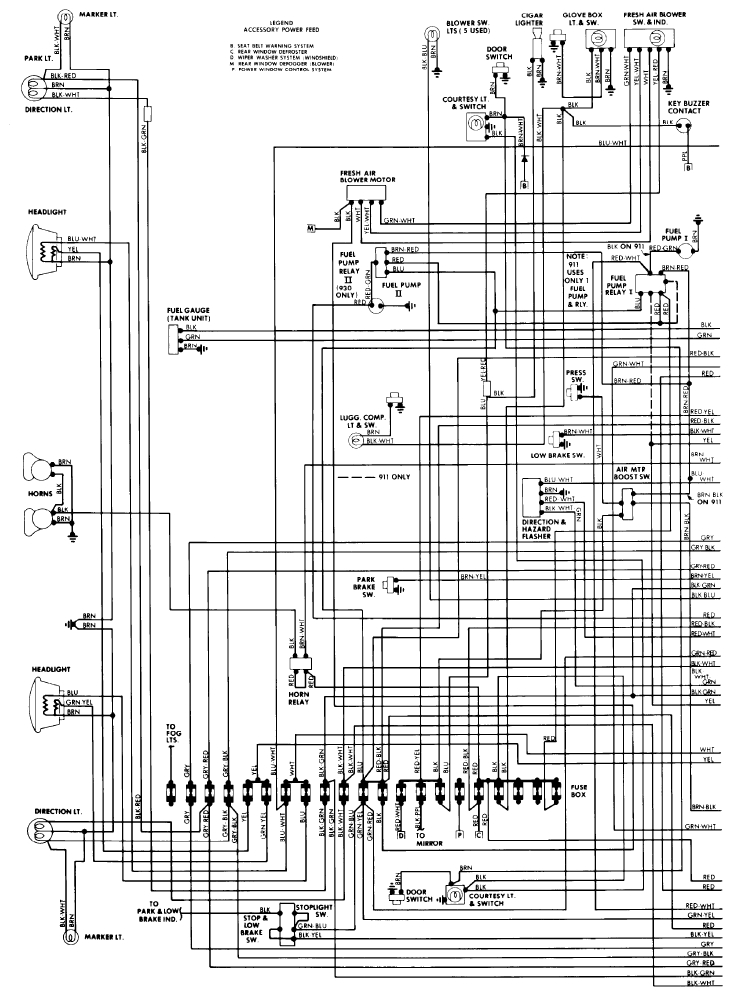

Fig 1: Wiring Diagram - 911S and Turbo-Carrera (1 of 2)
G09303332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

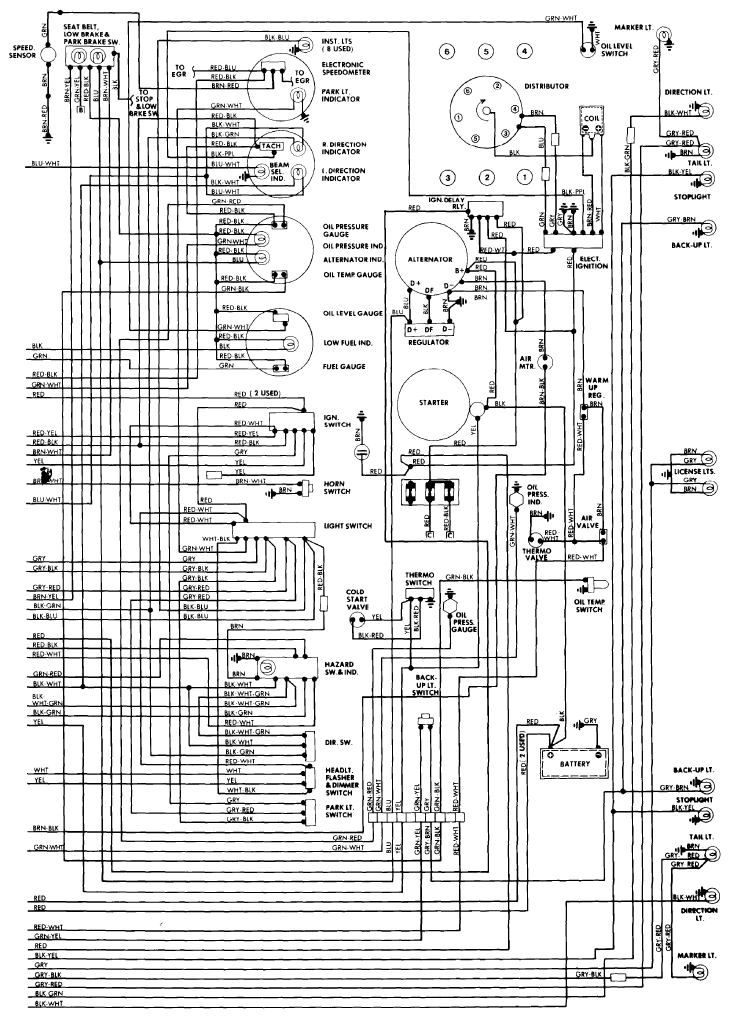

Fig 2: Wiring Diagram - 911S and Turbo-Carrera (2 of 2)
G09303333Courtesy of PORSCHE CARS NORTH AMERICA, INC.
