Engine Overrun

At high engine speeds and with the throttle closed (deceleration), vacuum is present in the intake air distributor. In this condition, the pneumatic valve will open so that air can pass through the hose from the air cleaner to the intake air distributor. The air/fuel mixture is thus leaned out with this additional air to provide a more complete combustion during engine overrun (deceleration) conditions.

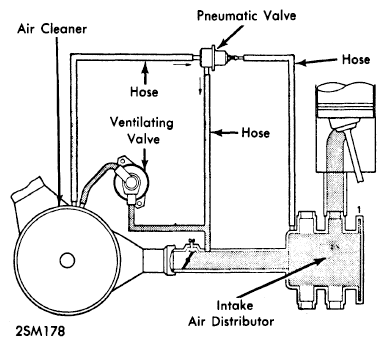

Fig 1: Engine Overrun Air Supply System
G09309412Courtesy of PORSCHE CARS NORTH AMERICA, INC.
