Lower Fuse Block

  1. - Left High Beam.
  2. - Right High Beam.
  3. - Left Low Beam.
  4. - Right Low Beam.
  5. - Left Side Marker.
  6. - Right Side Marker.
  7. - License Plate and Luggage Compartment Lights
  8. - Electric Sun Roof.

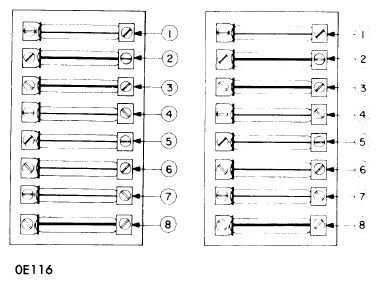

    Fig 1: 1968-69 912 Porsche Fuse Block
    G09319189Courtesy of PORSCHE CARS NORTH AMERICA, INC.
