Steering Gear: Notes

Steering gear adjusting methods vary according to type of steering rack pressure block: (1) Steel pressure block with plastic contact surface and external housing dust boot seat; (2) Plastic pressure block with no external housing dust boot seat.

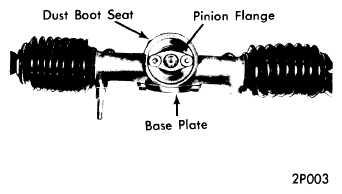

Fig 1: Housing Assembly (Steel Pressure Block)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
