Removal Procedure

  1. Ensure the front wheels are in the straight ahead position.
  2. Remove the upper instrument panel. Refer to Instrument Panel Upper Trim Pad Replacement .

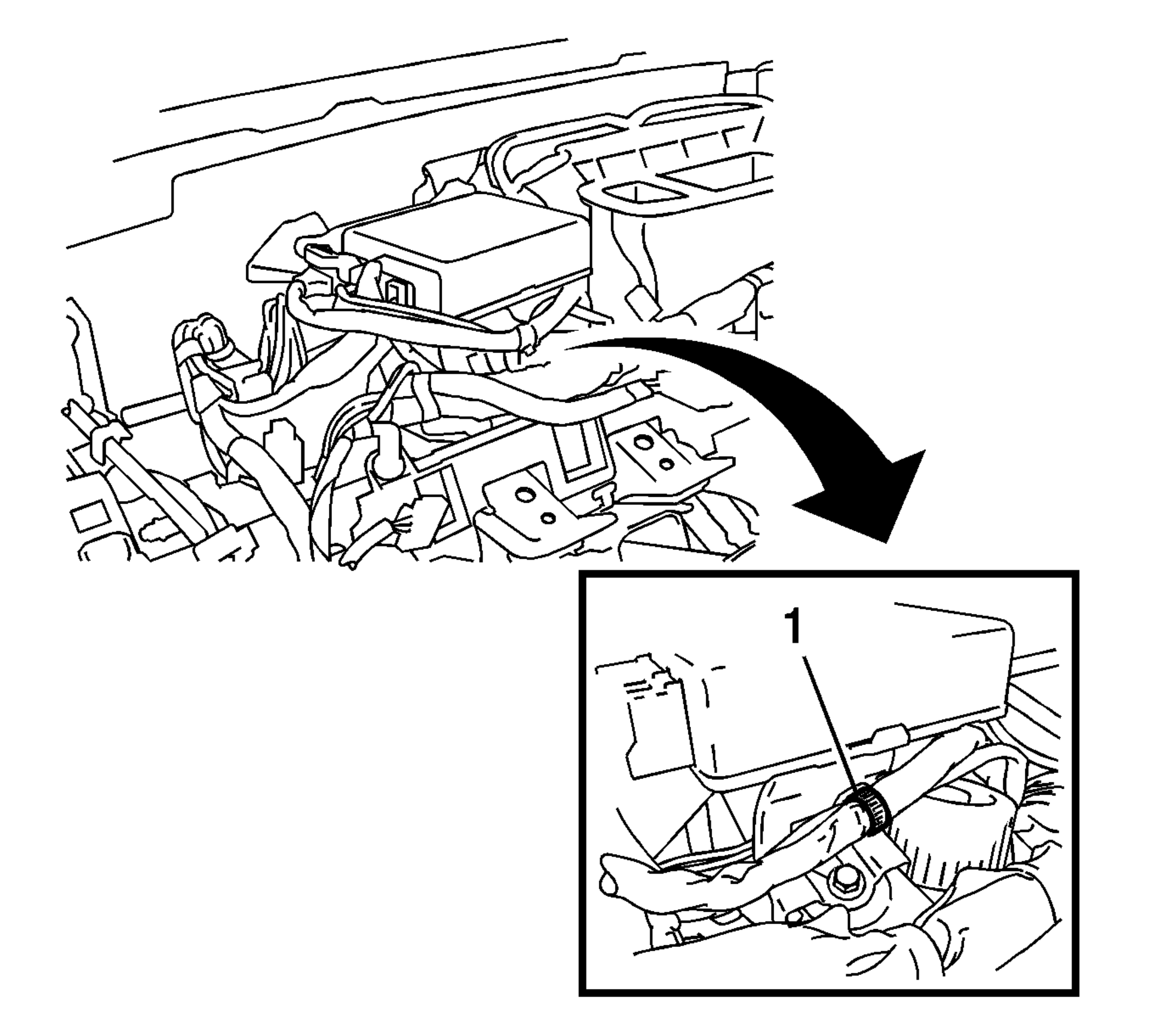

    3. Fig 1: Wire Harness Clamp
    GM2030462Courtesy of GENERAL MOTORS CORP.
  3. Separate the wire harness clamp (1) from the electronic power steering motor control module.

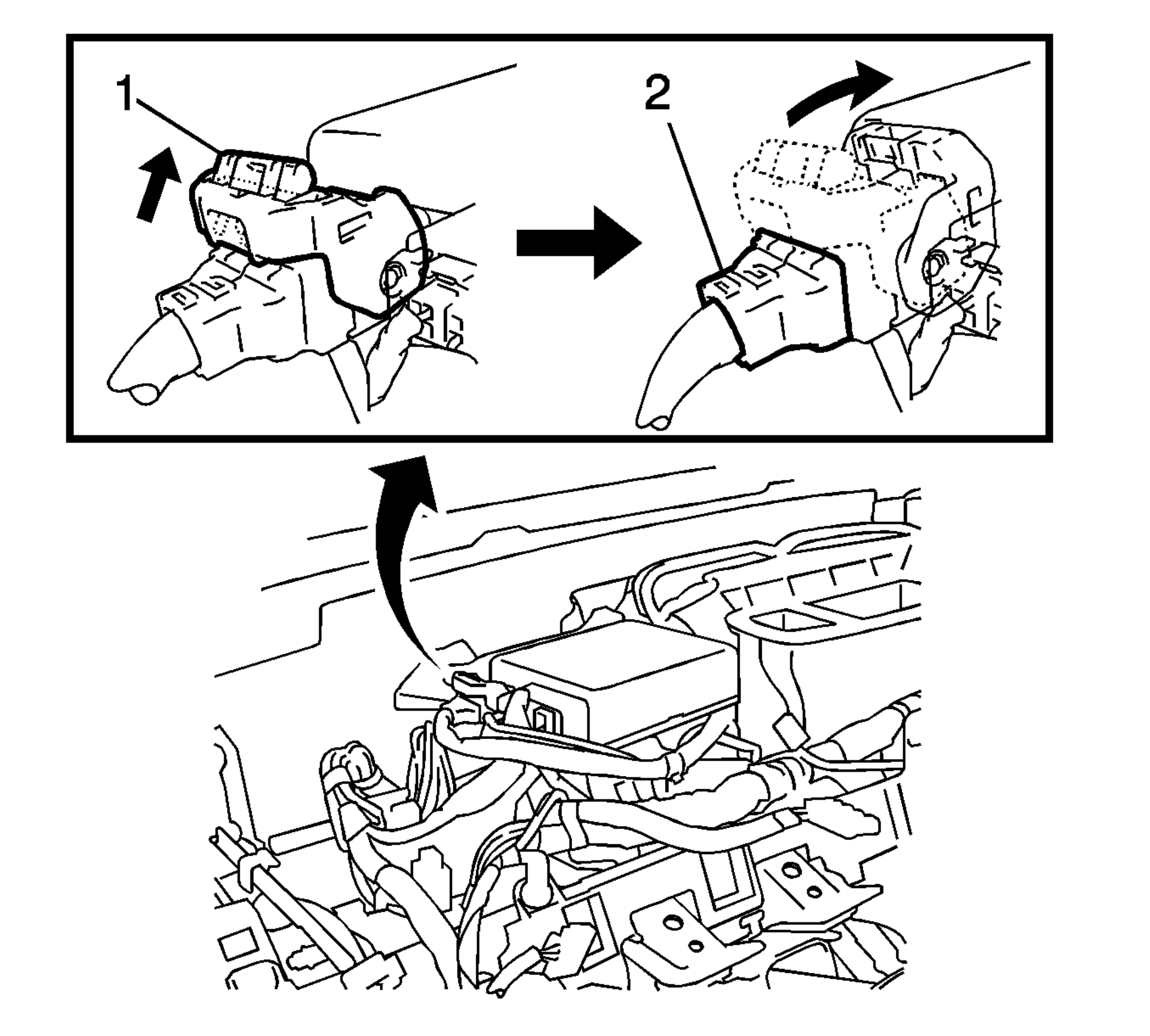

    4. Fig 2: Identifying Lock, Lock Lever & Connector
    GM2030460Courtesy of GENERAL MOTORS CORP.
  4. Pull out the lock (1) of the lock lever.
  5. Turn the lock lever in order to disconnect the connector (2) from the module.
    6. Fig 3: View Of Electrical Connectors
    GM2030463Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the 3 connectors (1, 2, 3) from the module.
    7. Fig 4: Identifying Power Steering Motor Control Module Bolt & Nuts
    GM2030464Courtesy of GENERAL MOTORS CORP.
  7. Remove the bolt (3), the 2 nuts (1, 2), and the module from the vehicle.
