Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

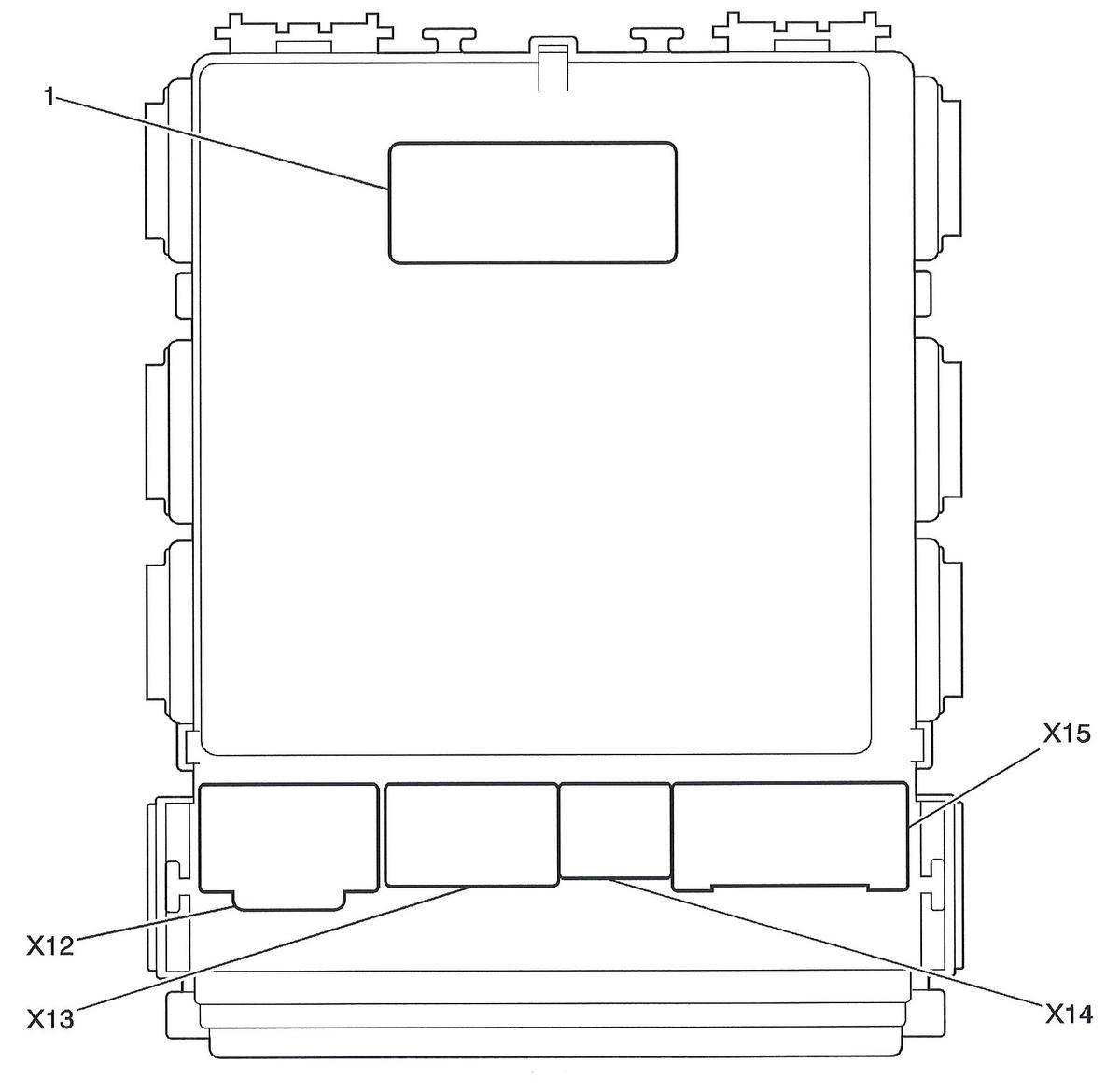

| Body Control Module (BCM) (1) | Rear of instrument panel fuse block. See Figure. |

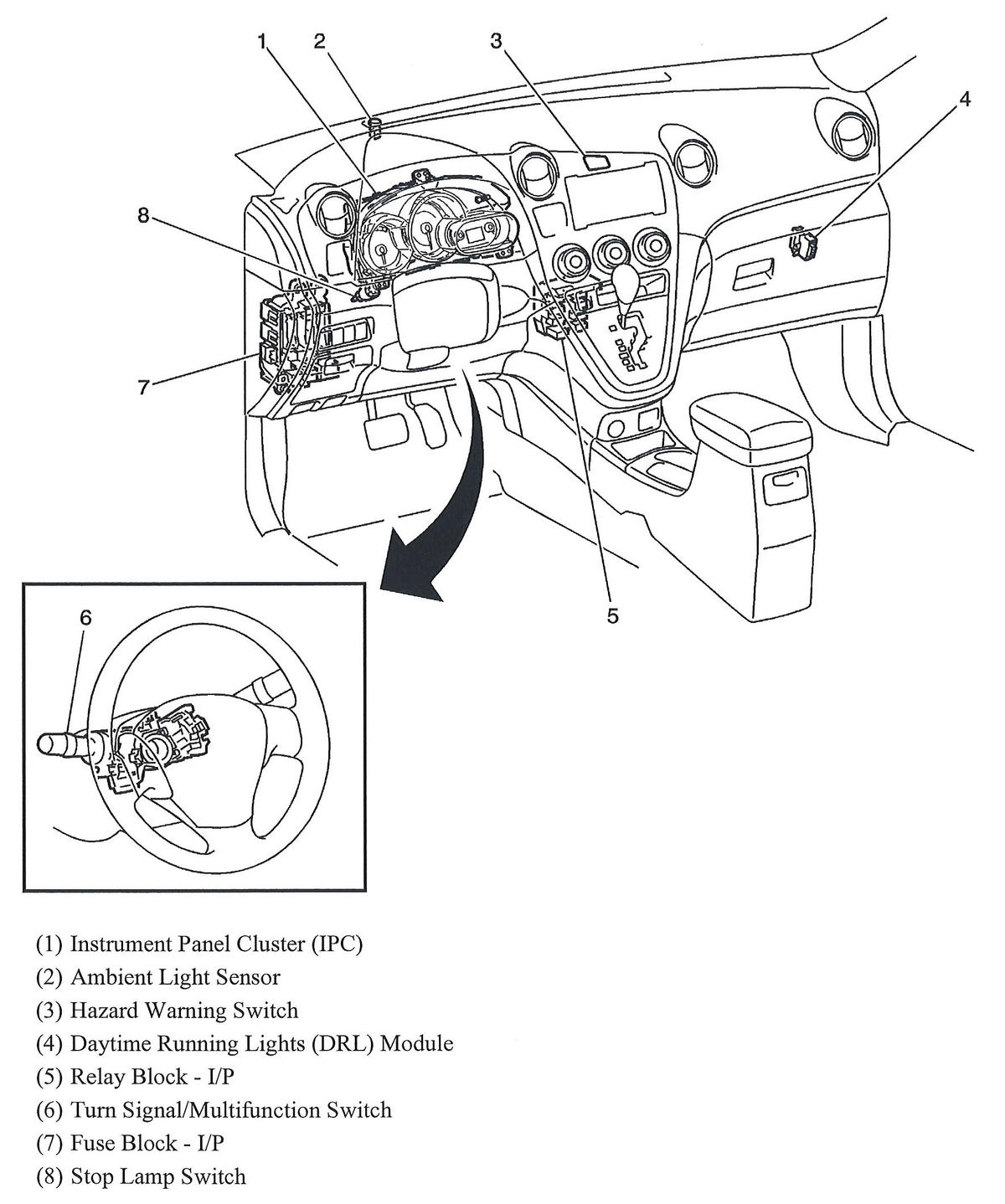

| Daytime Running Lights (DRL) Module | Left side of dash. See Figure. |

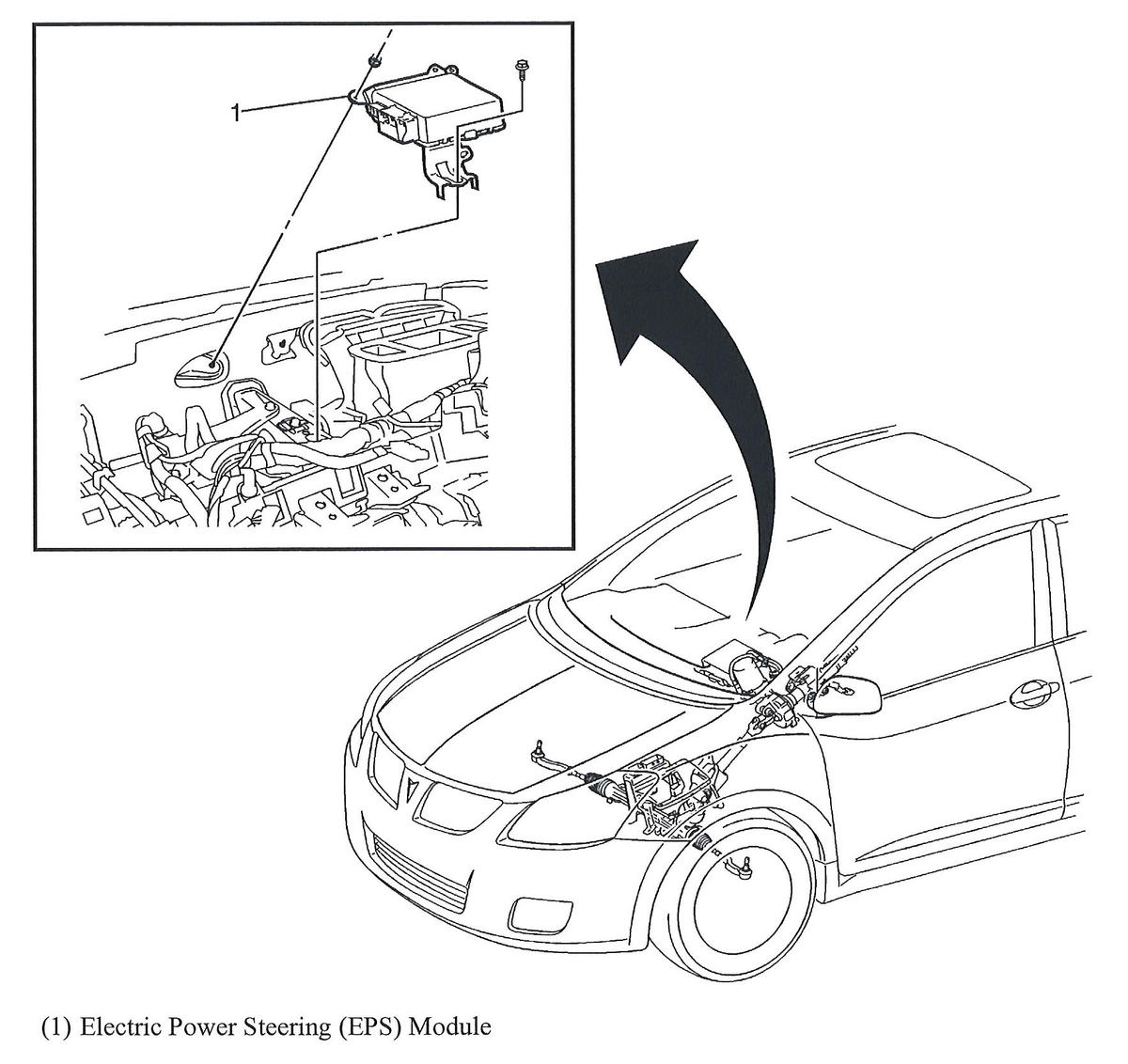

| Electric Power Steering (EPS) Module | Left side of dash. See Figure. |

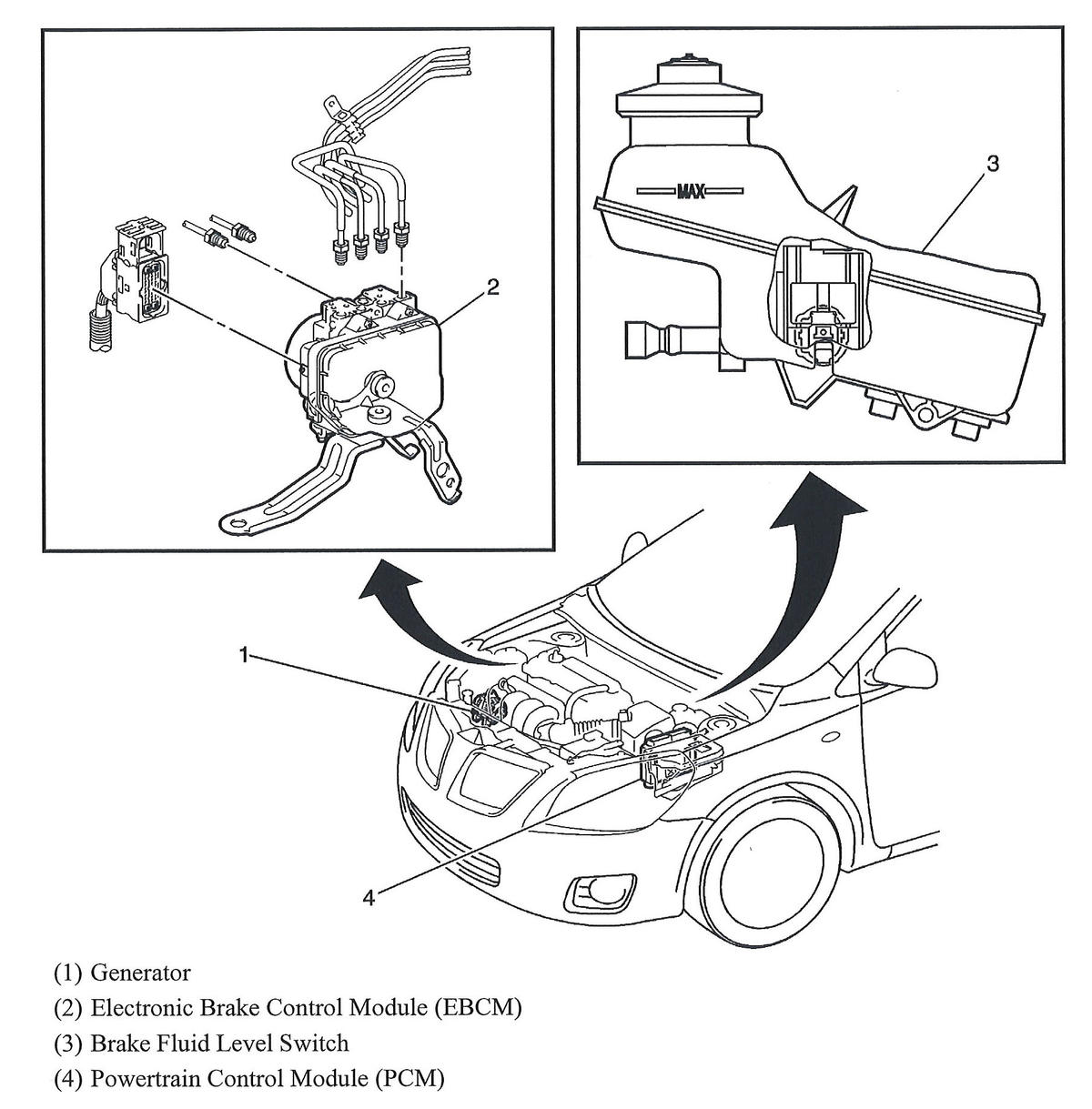

| Electronic Brake Control Module (EBCM) | Right side of engine compartment. See Figure. |
| Fan Control Module | Behind radiator. |

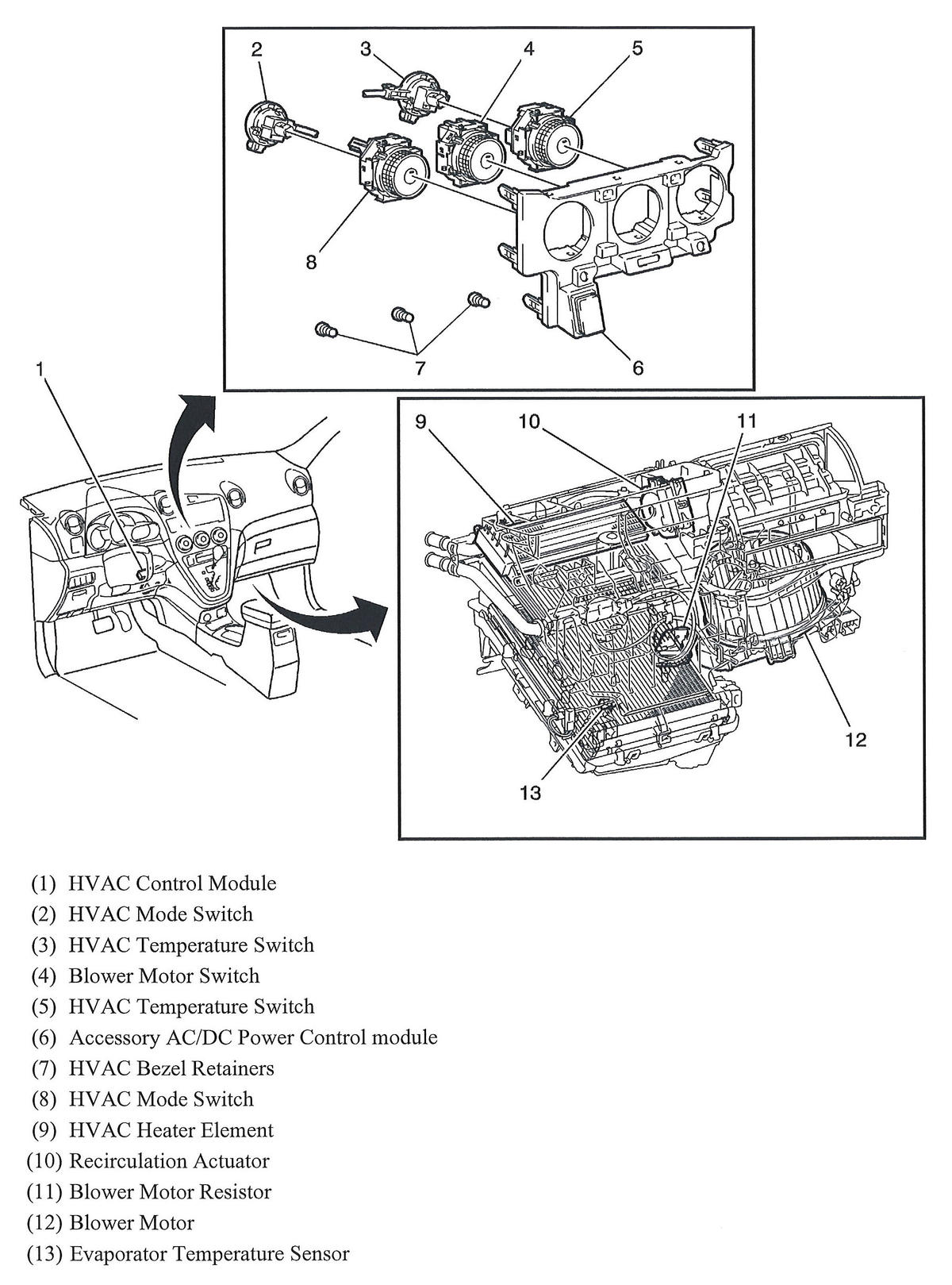

| HVAC Control Module | Center of dash. See Figure. |

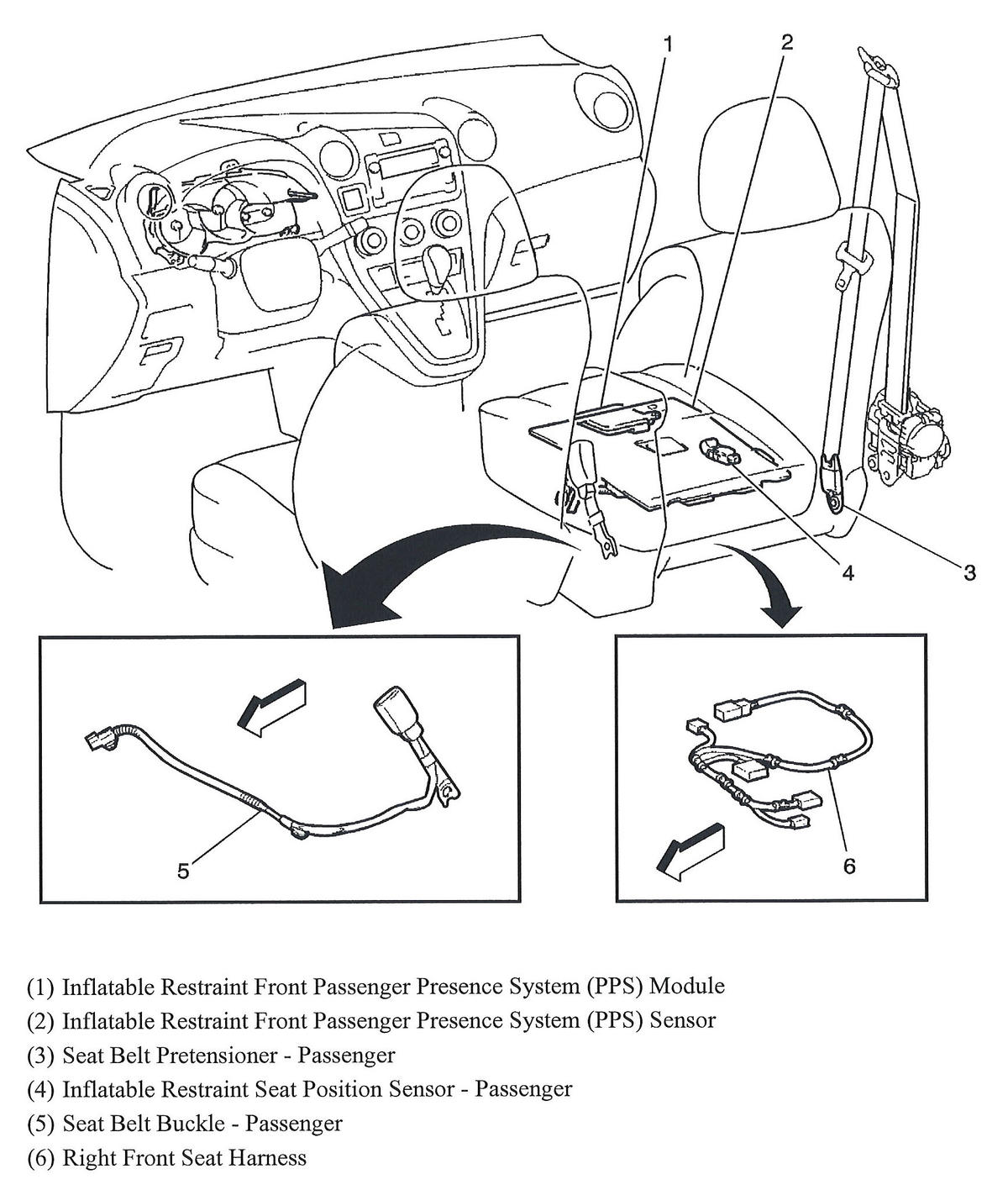

| Inflatable Restraint Front Passenger Presence System (PPS) Module | Under front passenger's seat. See Figure. |

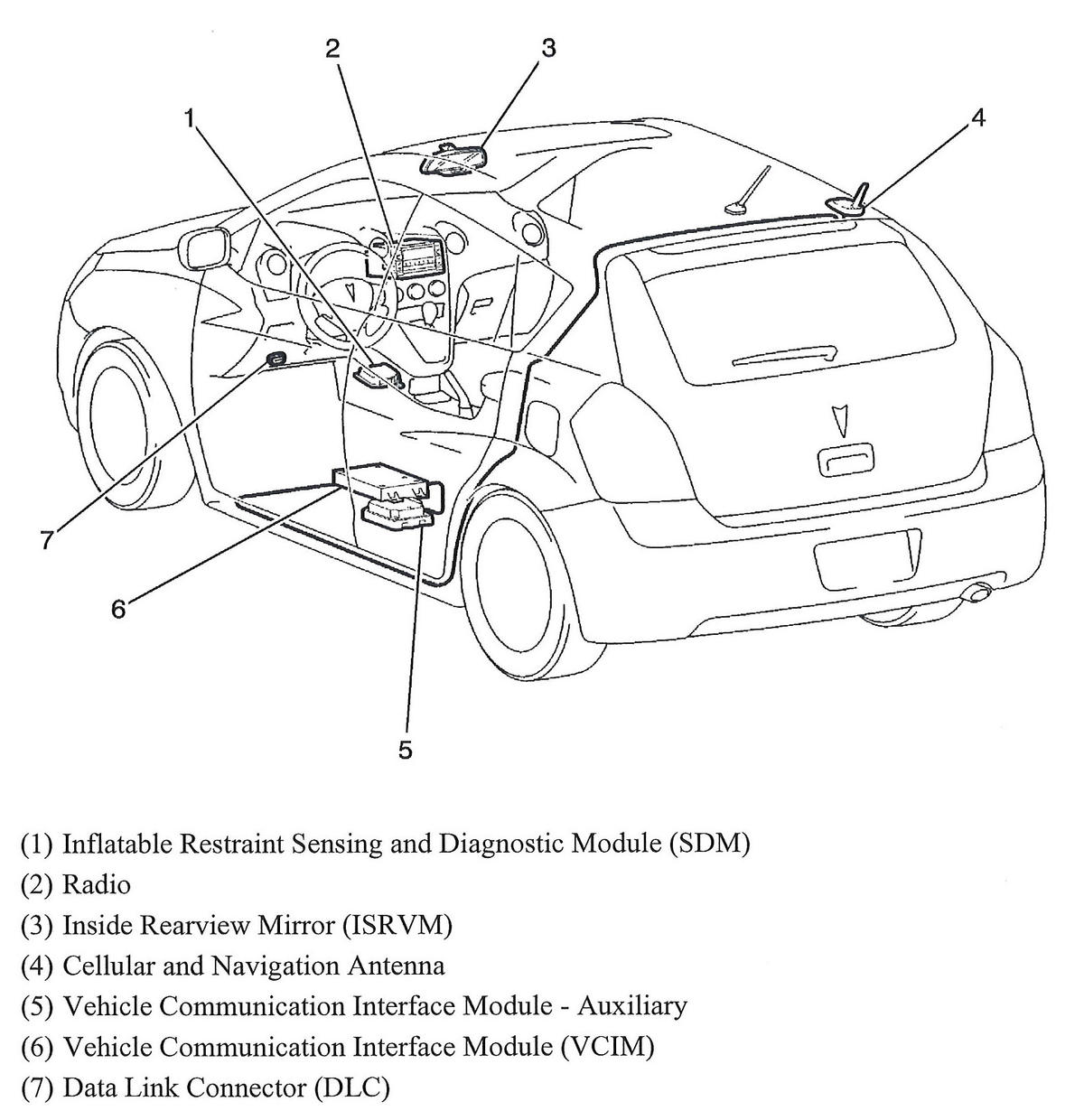

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under center console. See Figure. |
| Powertrain Control Module (PCM) | Left side of engine compartment. See Figure. |
| Serial Data Gateway (SDG) Module | Right side of dash. |

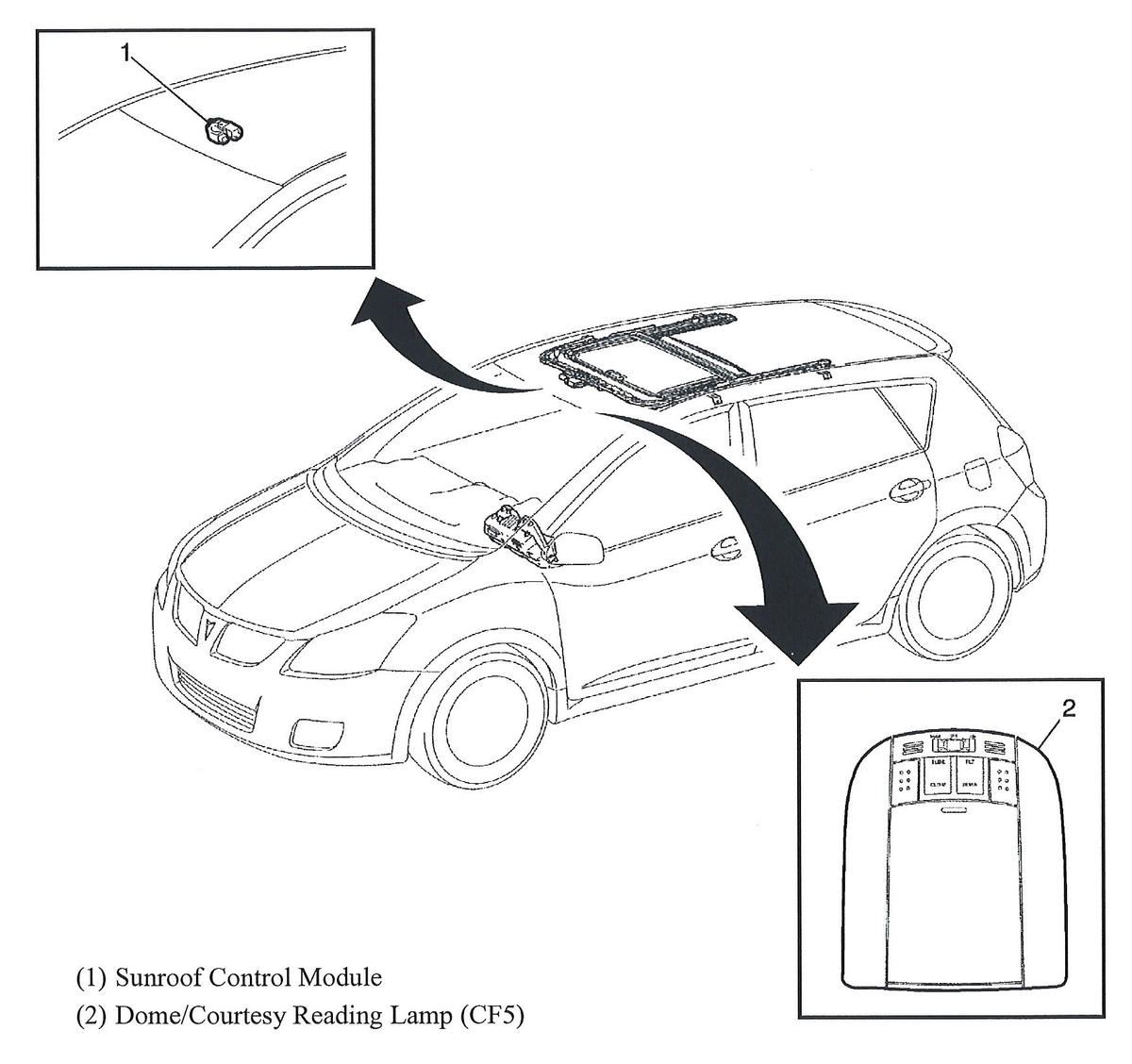

| Sunroof Control Module | Forward of sun roof. See Figure. |

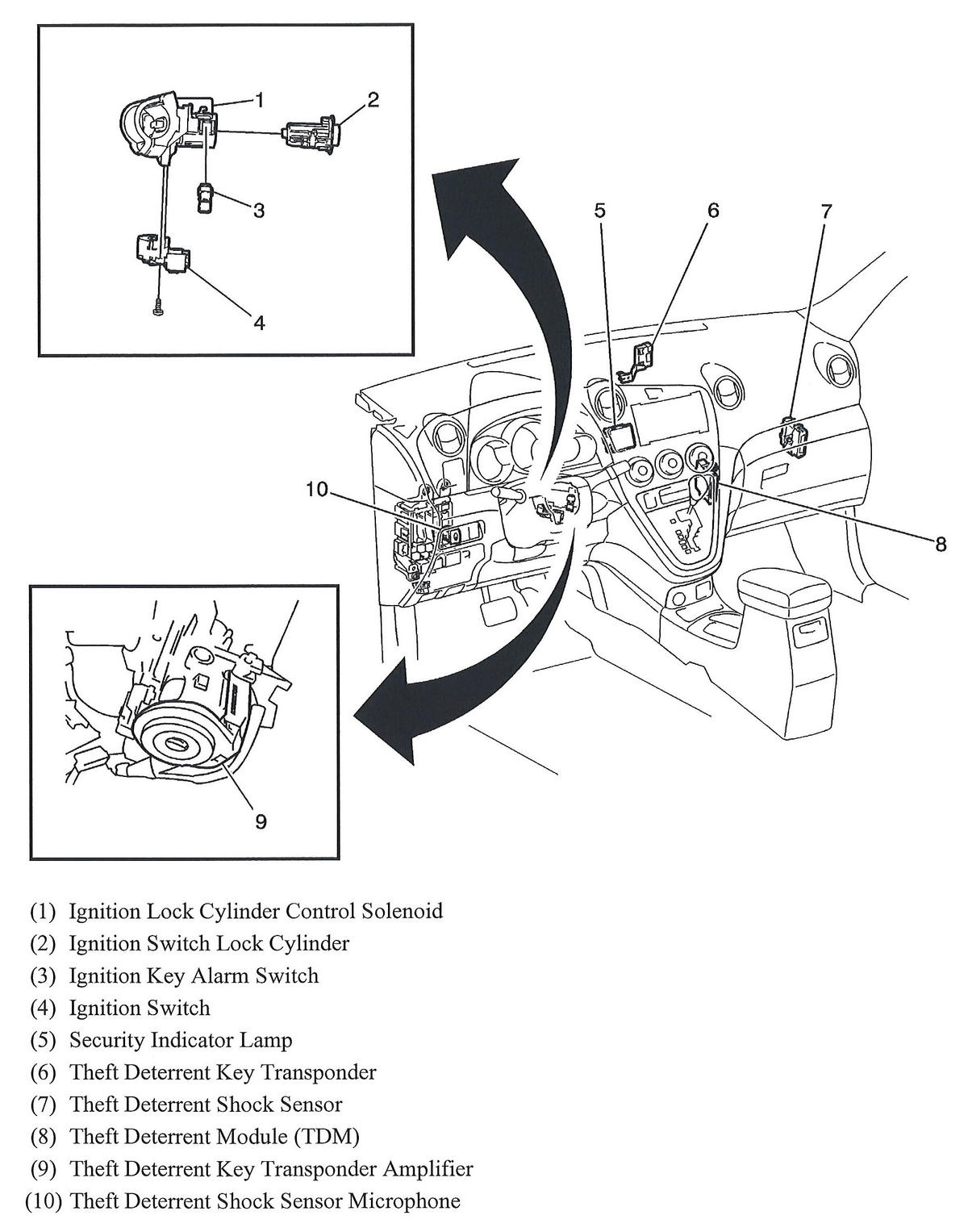

| Theft Deterrent Module (TDM) | Right side of dash. See Figure. |

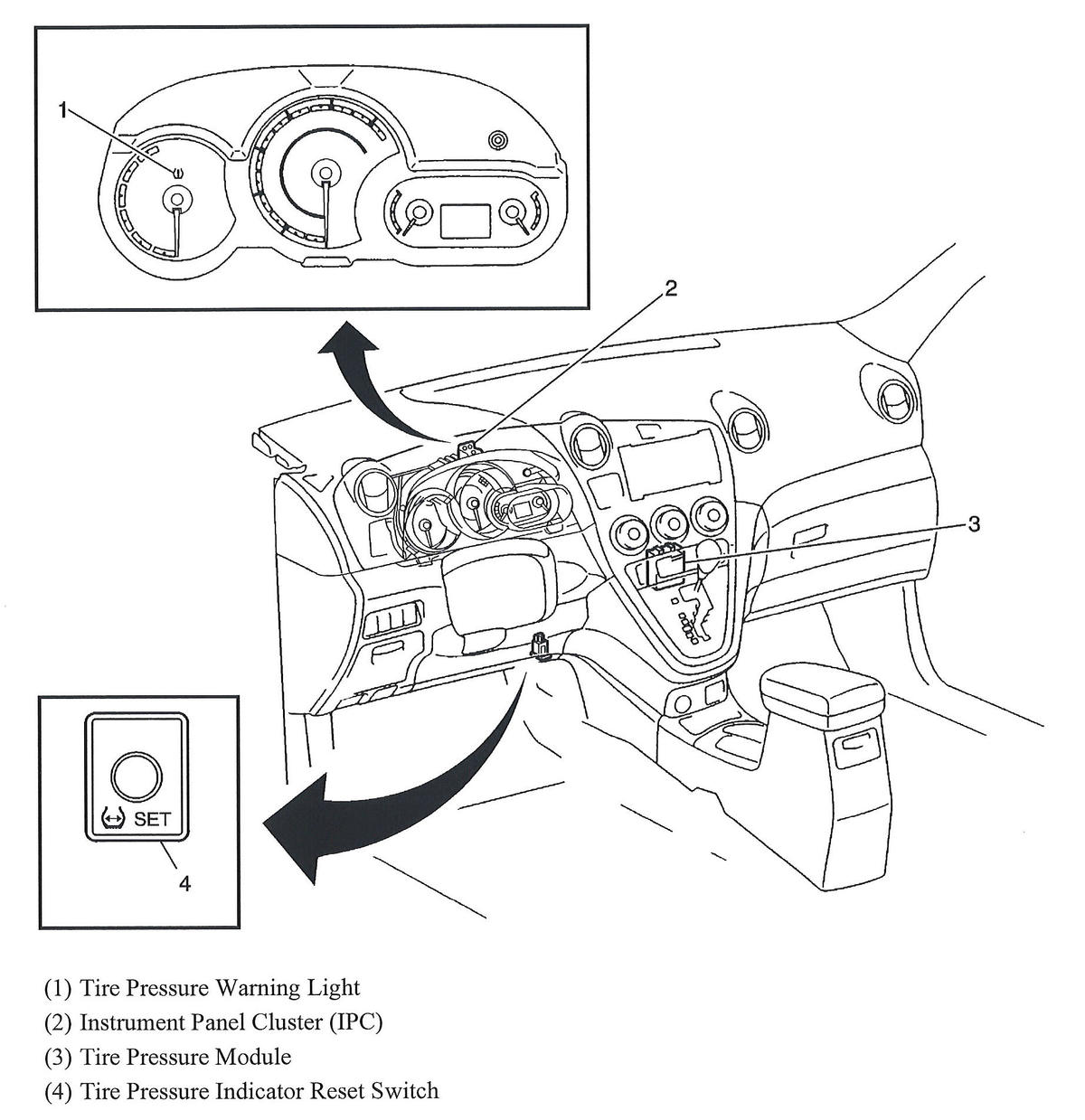

| Tire Pressure Module | Right side of dash. See Figure. |

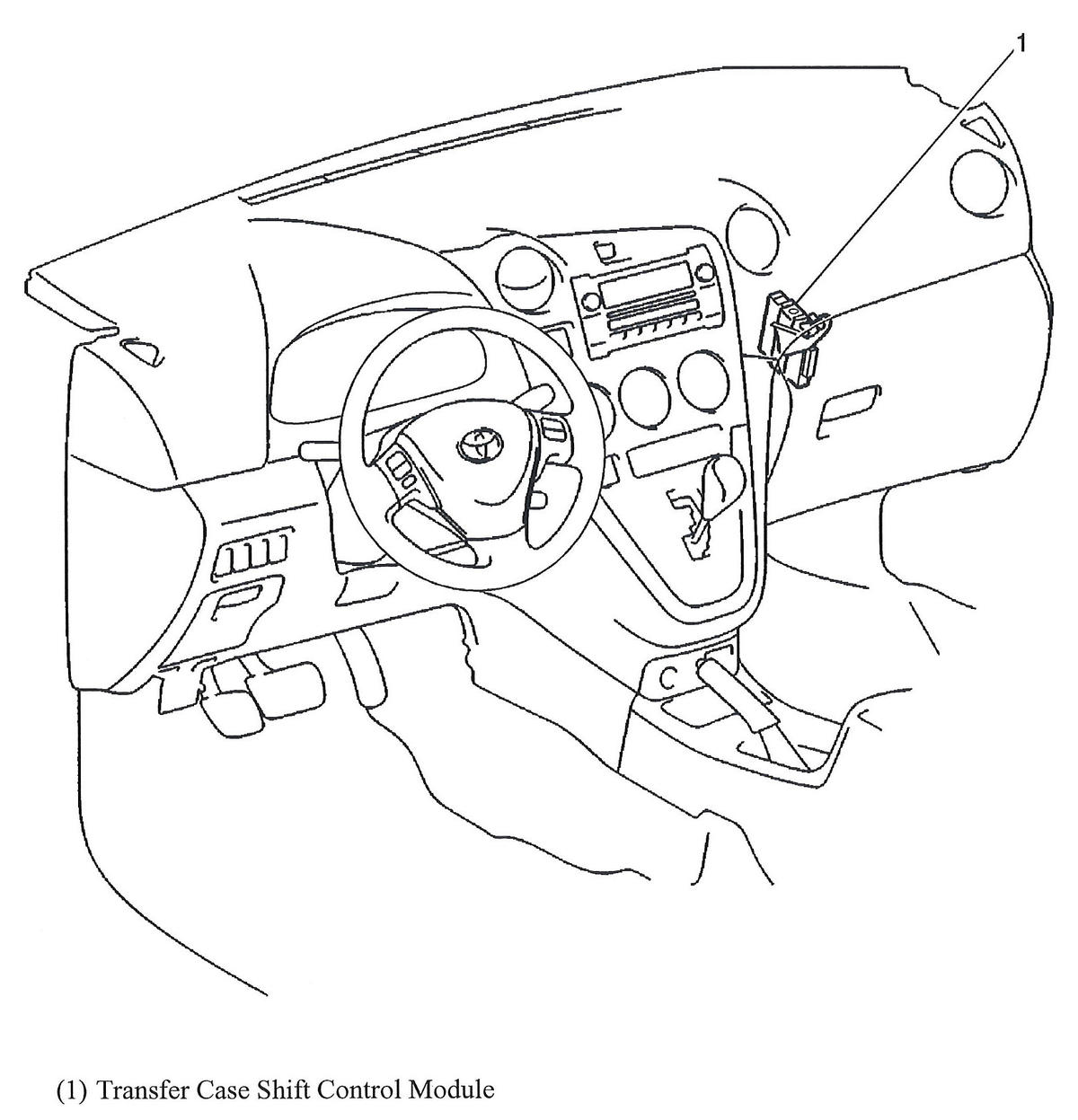

| Transfer Case Shift Control Module | Right side of dash. See Figure. |
| Vehicle Communication Interface Modules | Under driver's seat. See Figure. |

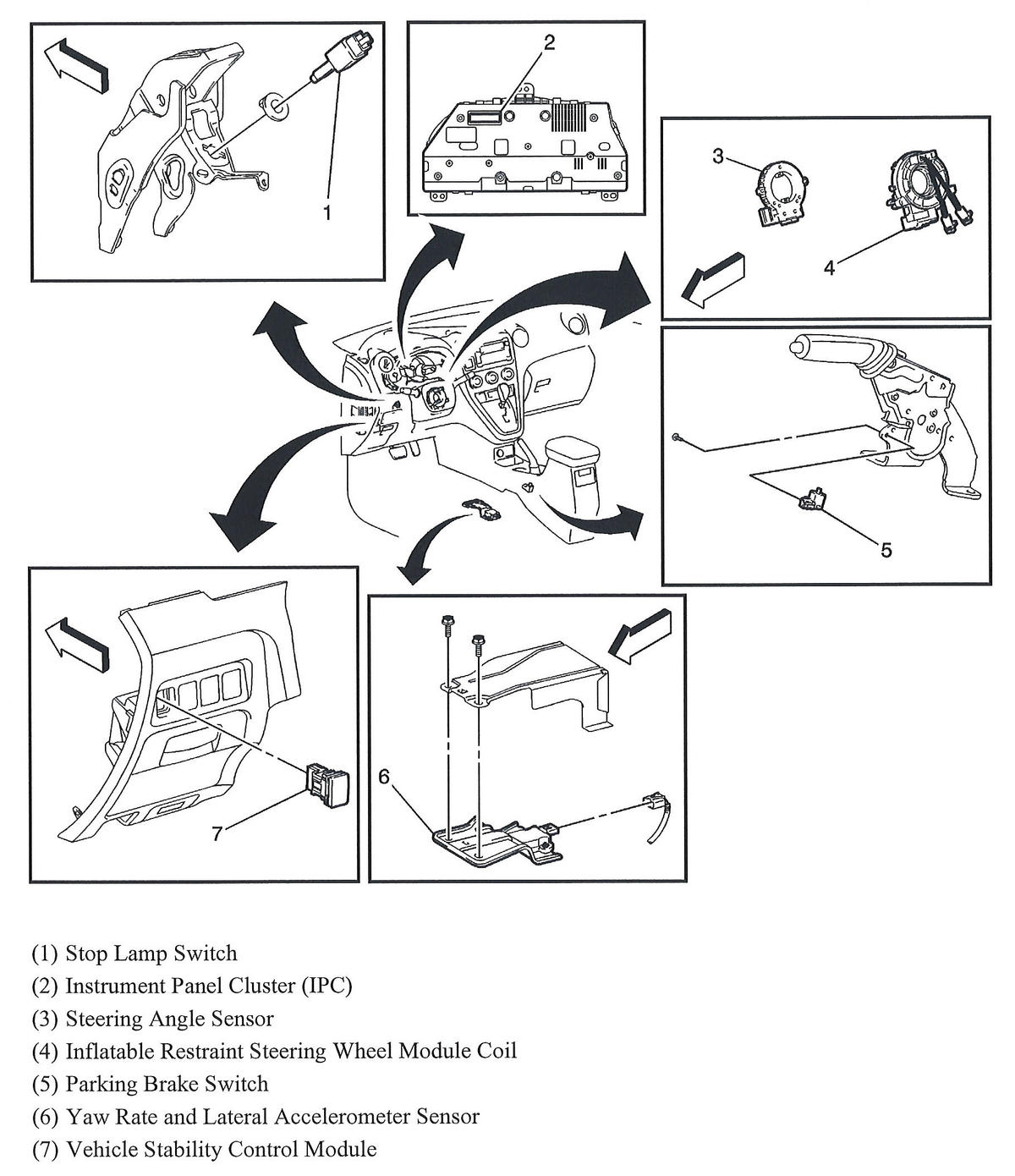

| Vertical Stability Control Module | Left side of dash. See Figure. |
