Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

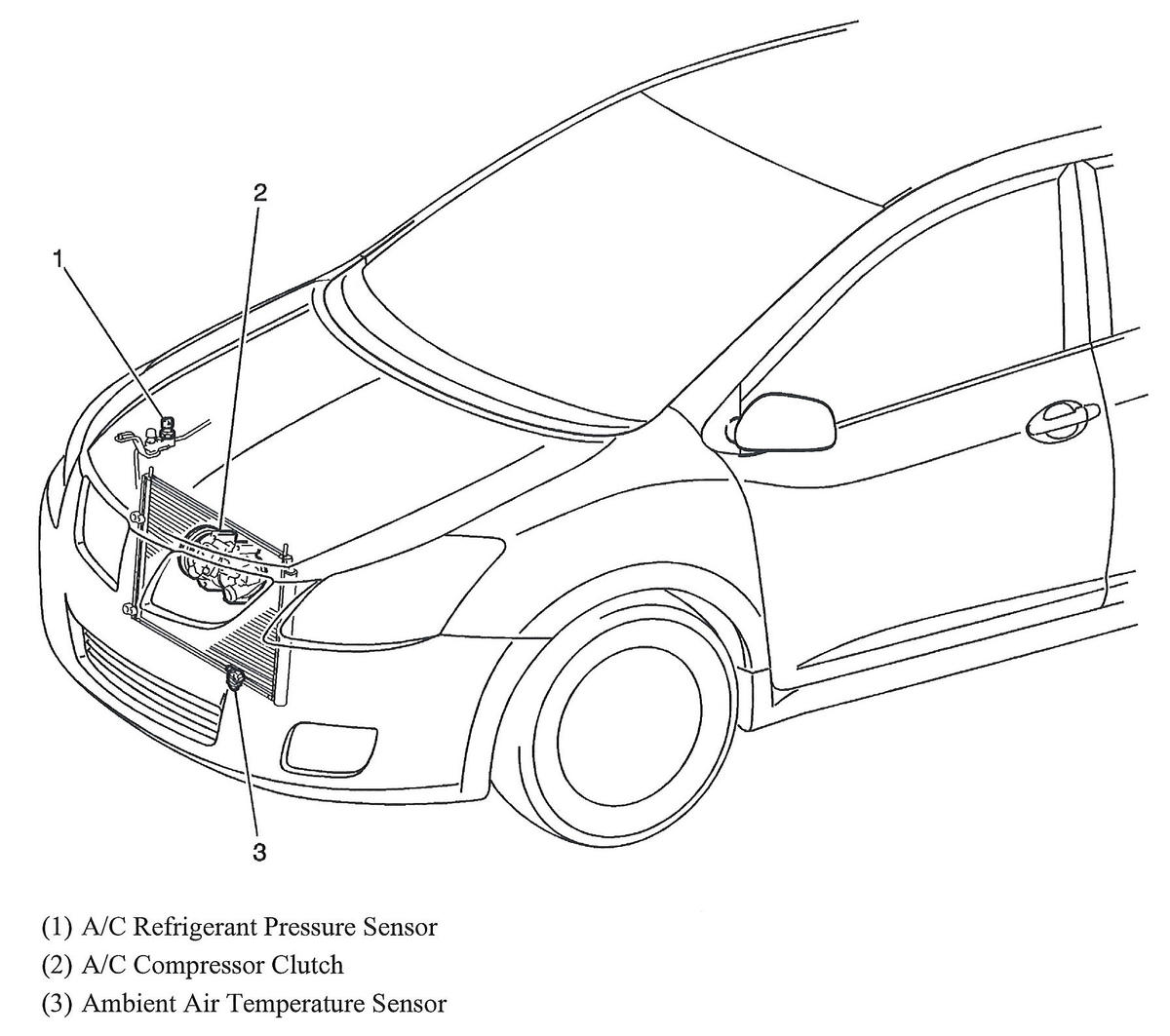

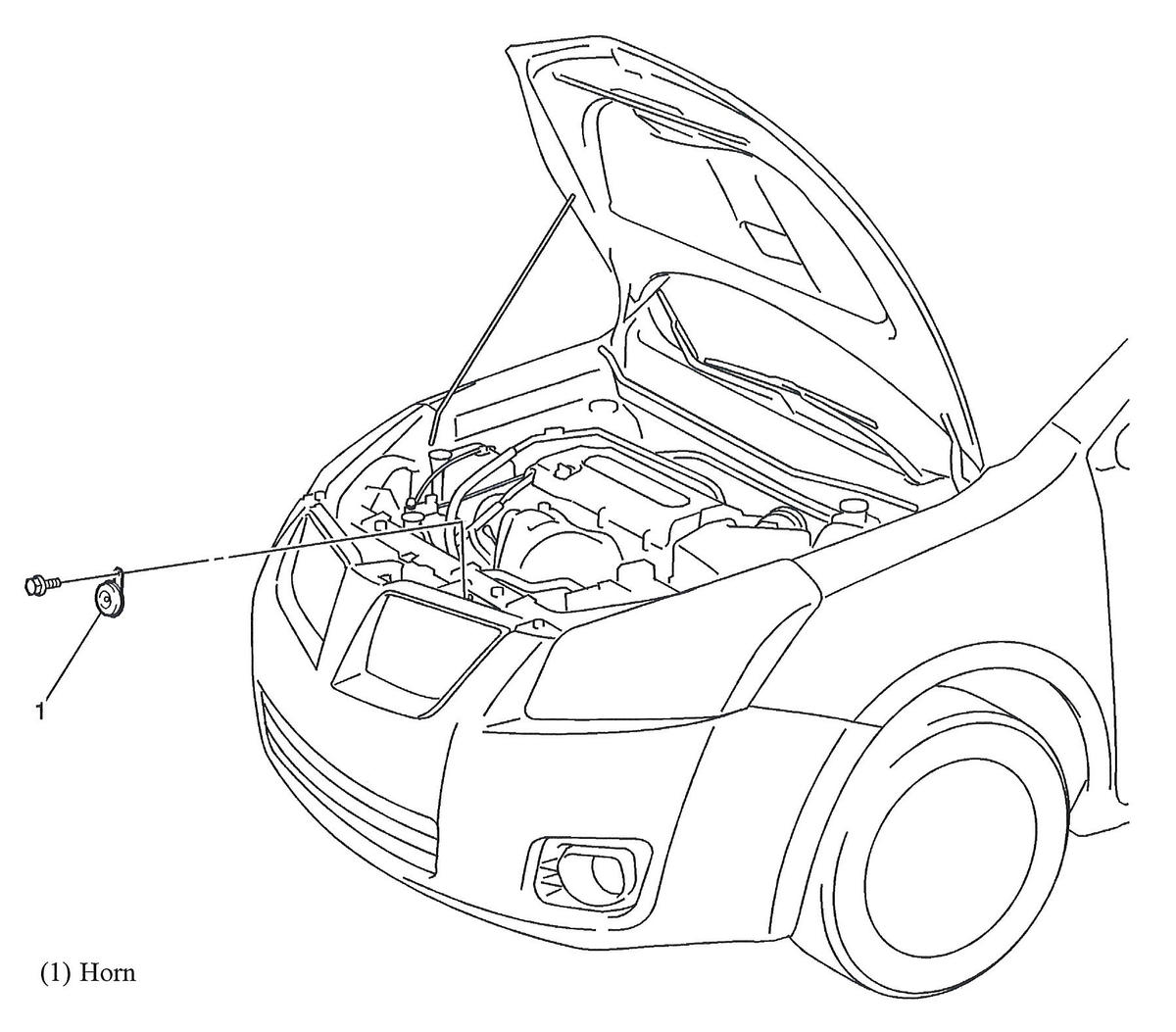

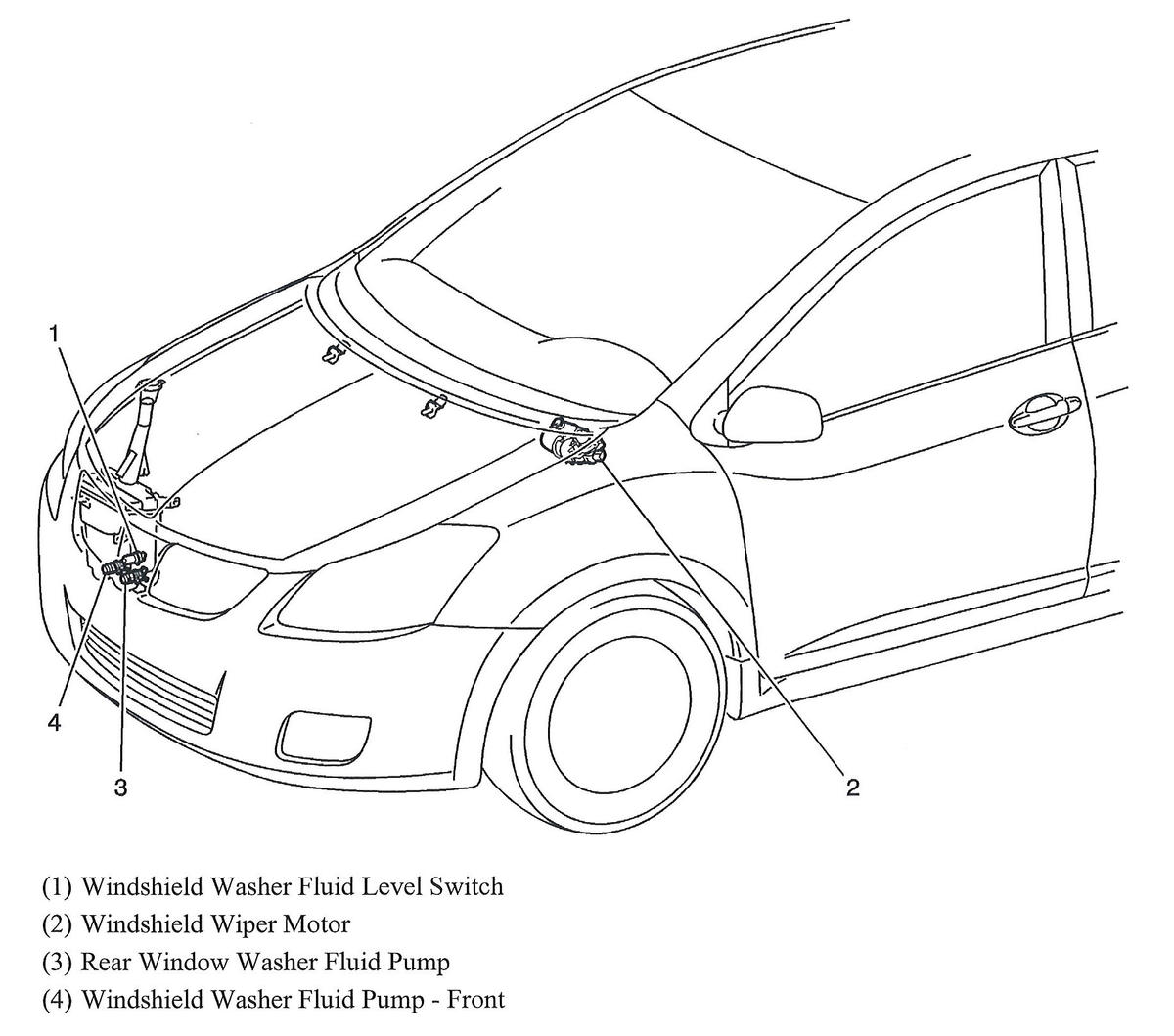

Fig 1: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 2: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

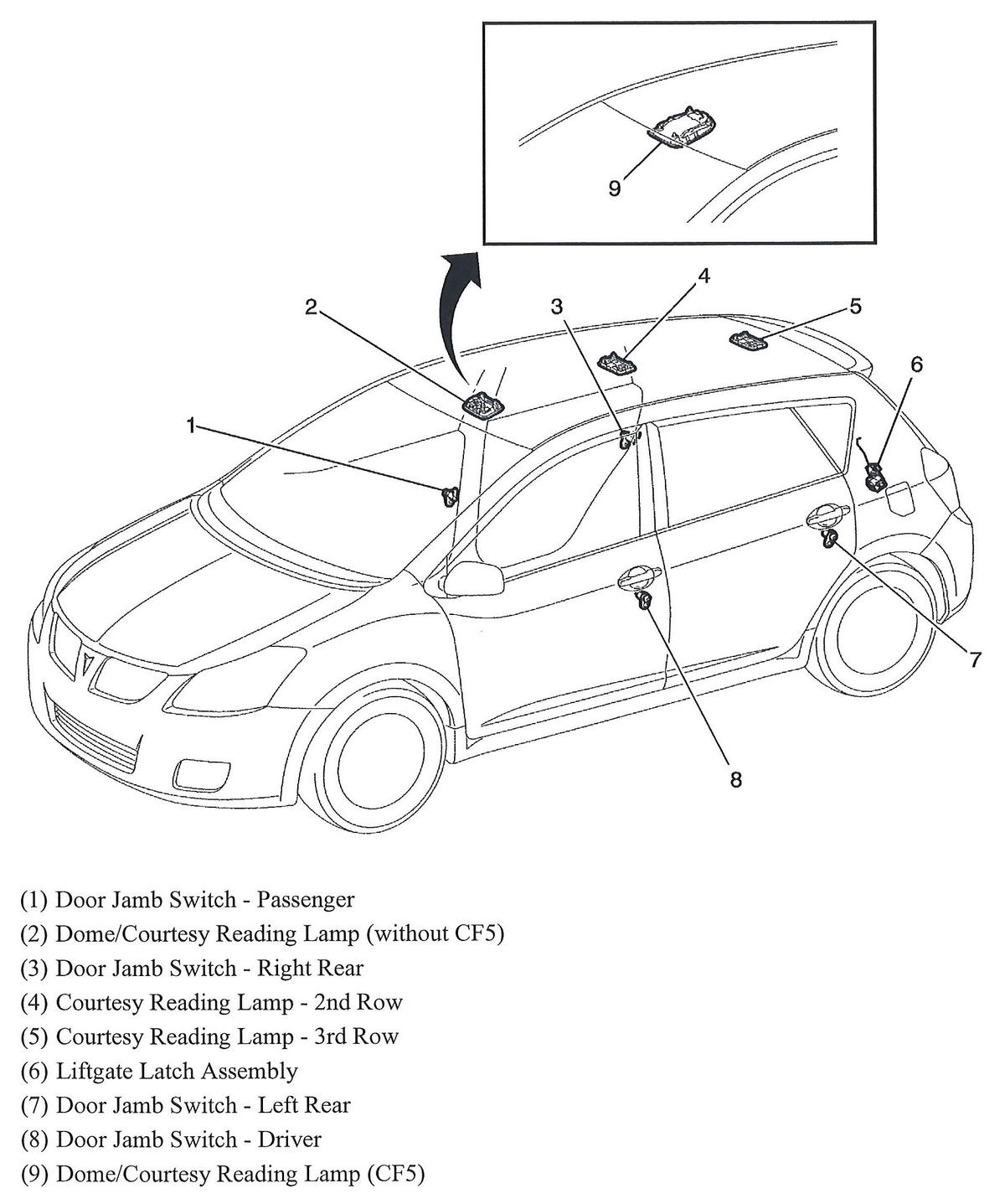

Fig 3: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

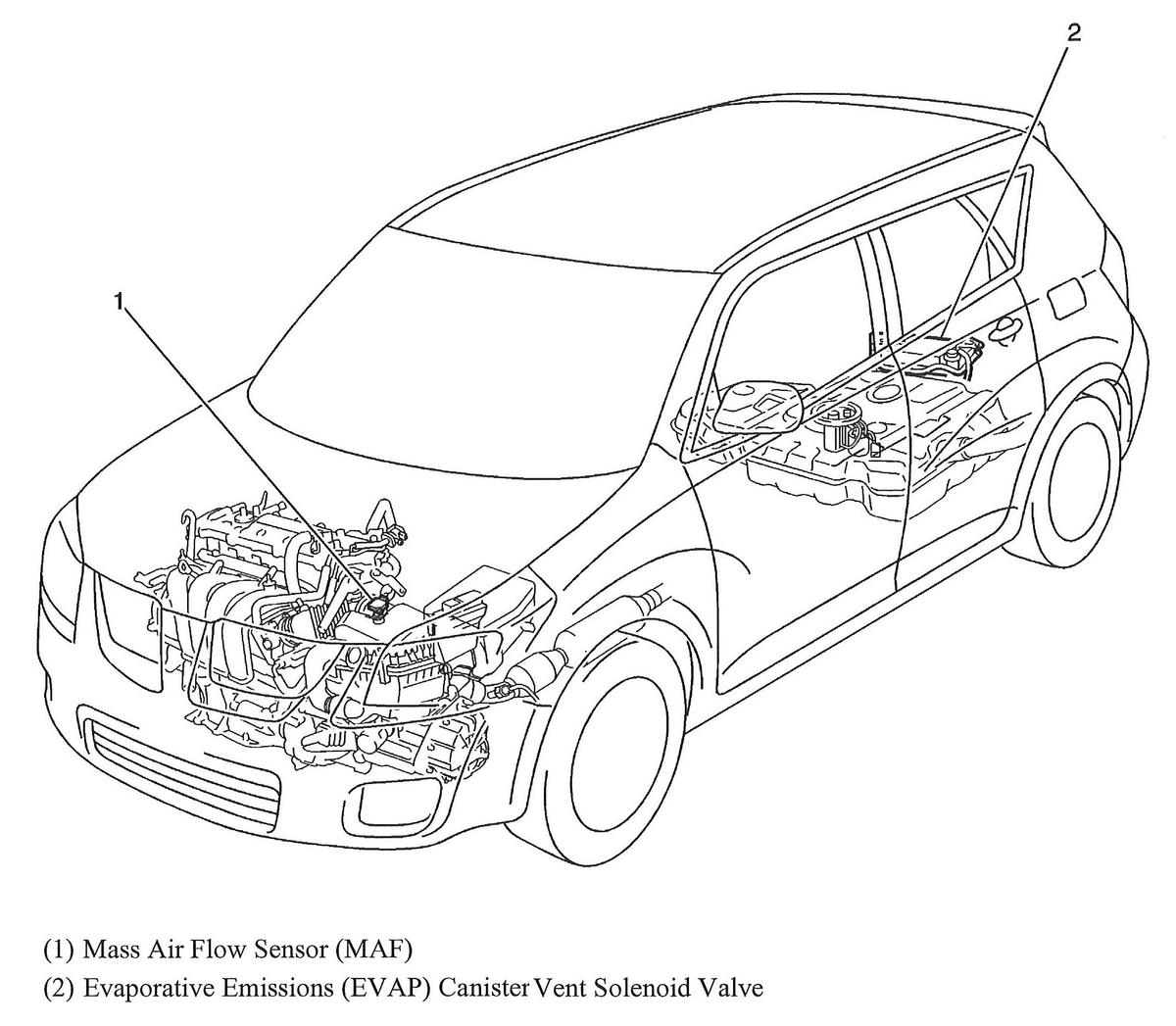

Fig 4: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 5: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

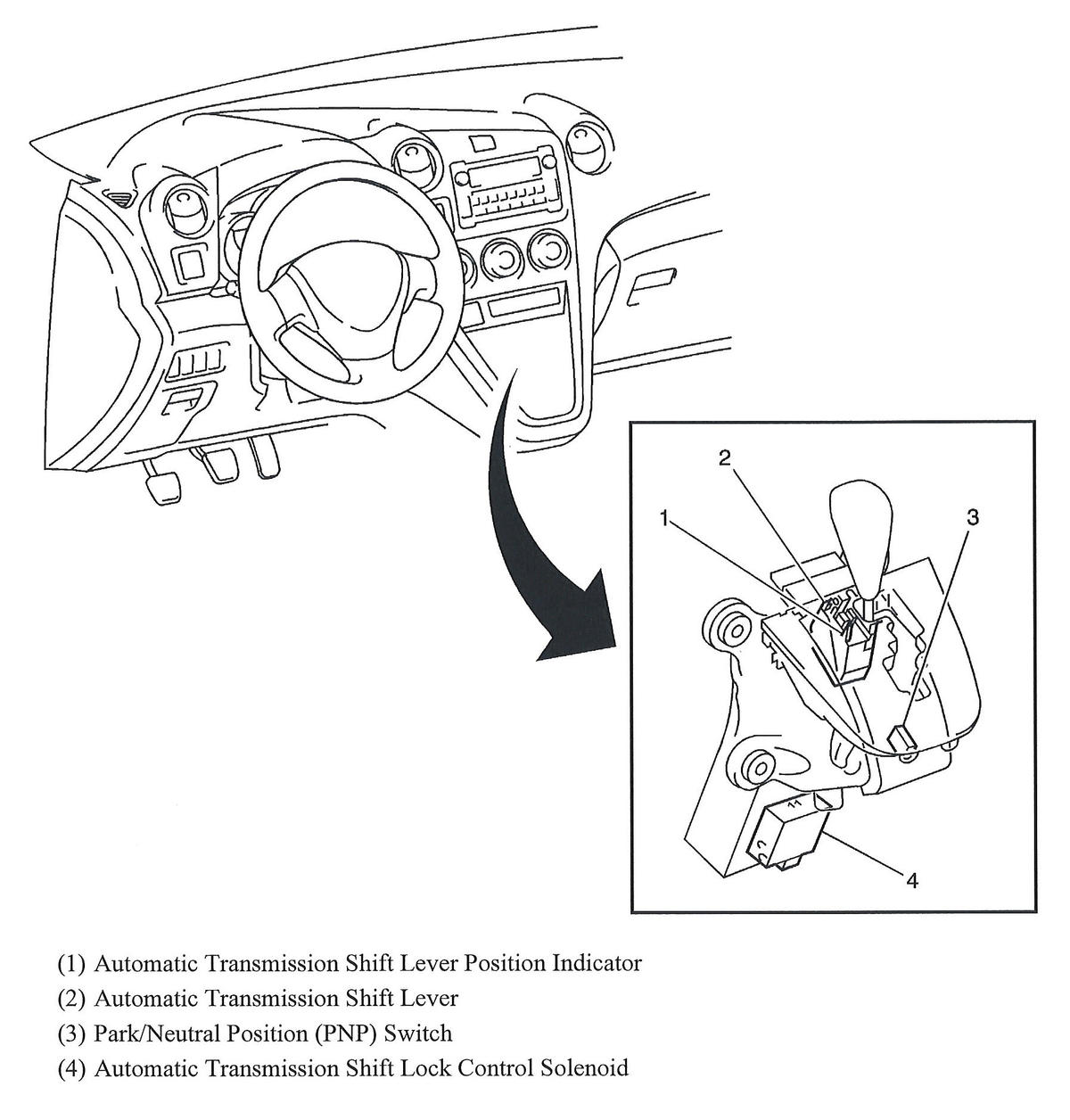

Fig 6: Dash & Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 7: Dash & Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 8: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 9: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 10: HVAC Unit
Courtesy of GENERAL MOTORS CORP.
Fig 11: Behind Dash
Courtesy of GENERAL MOTORS CORP.
Fig 12: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 13: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

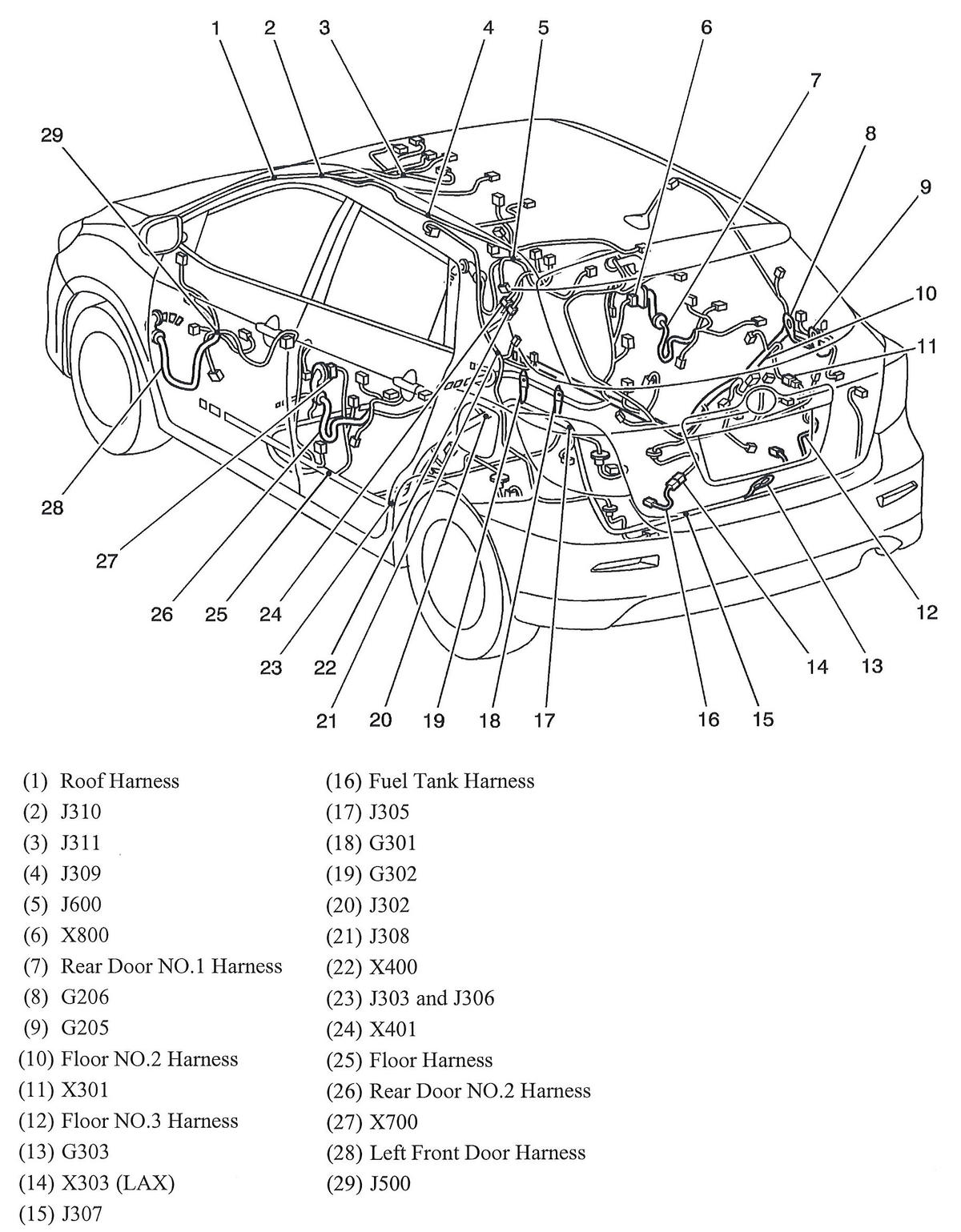

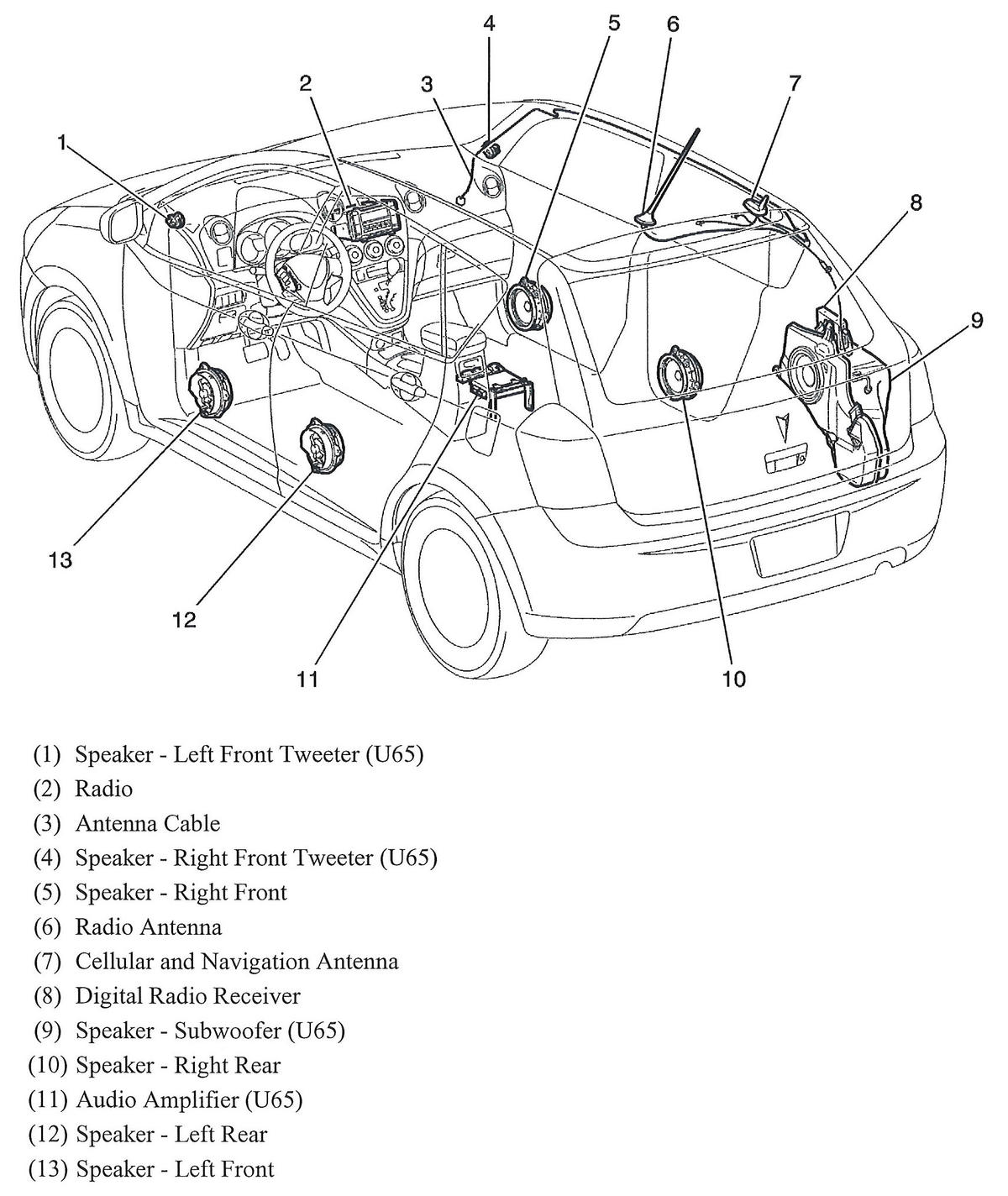

Fig 15: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 16: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

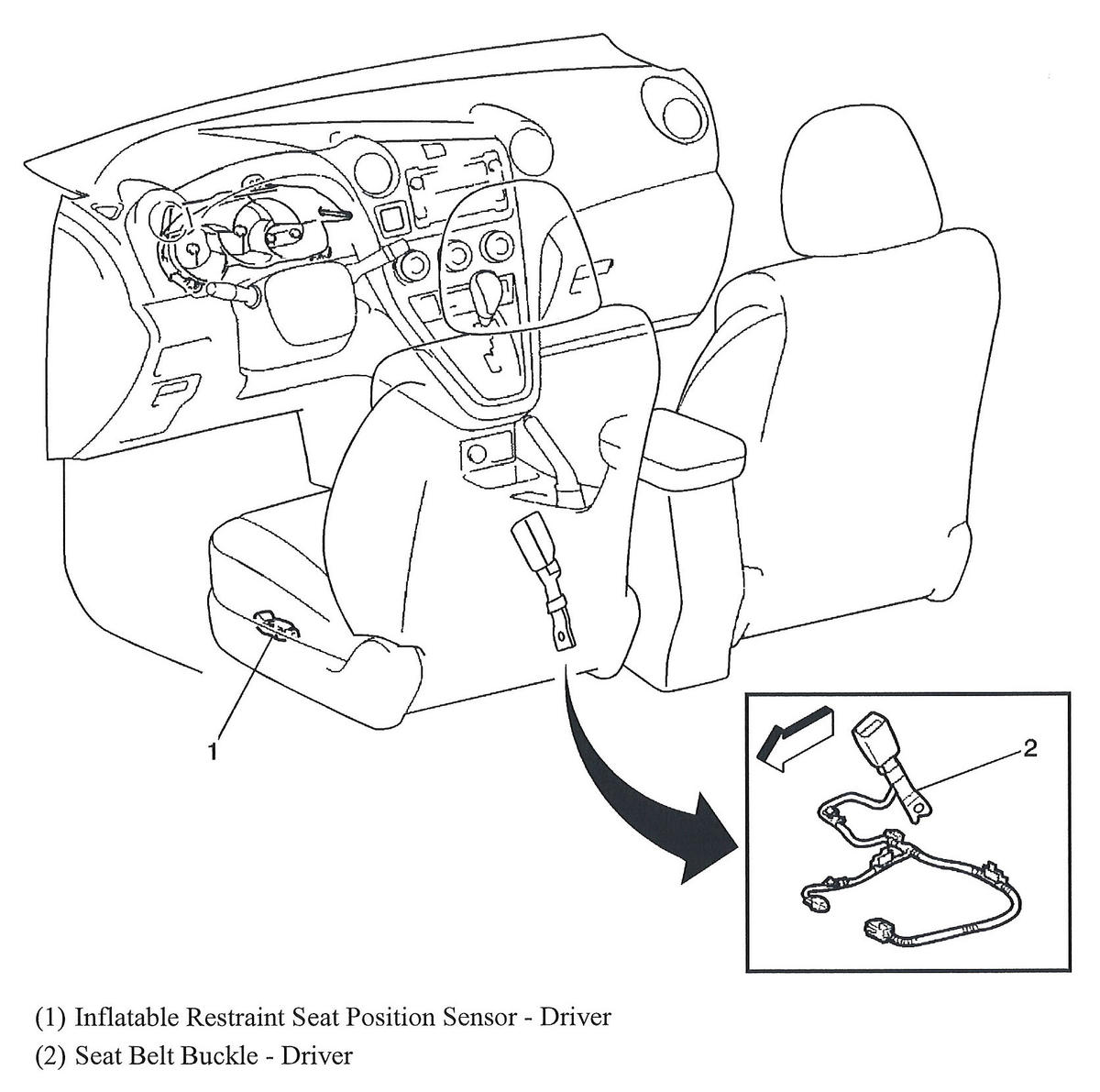

Fig 17: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 18: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 19: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 20: Sunroof
Courtesy of GENERAL MOTORS CORP.

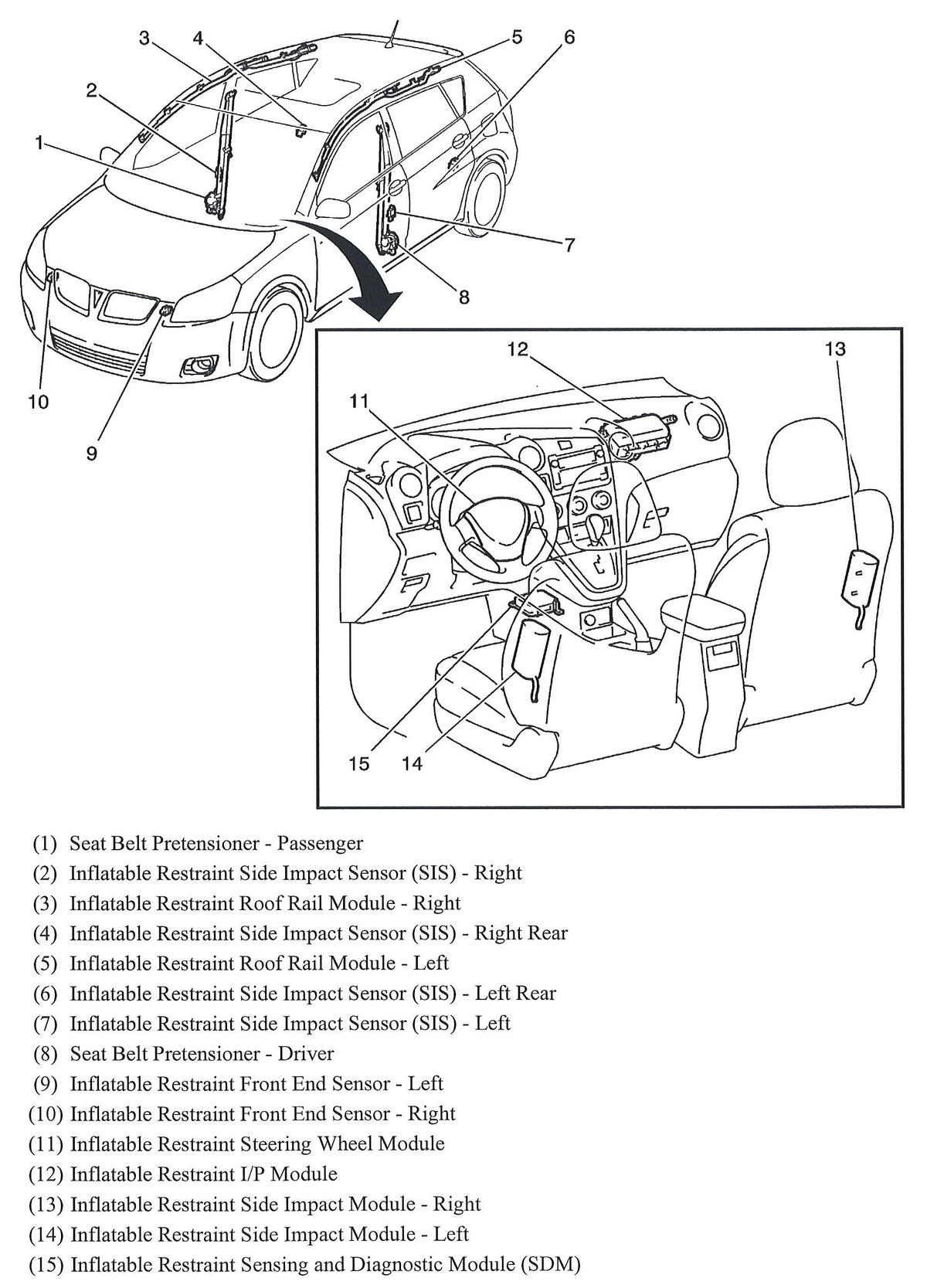

Fig 21: Vehicle Overview (SRS System)
Courtesy of GENERAL MOTORS CORP.

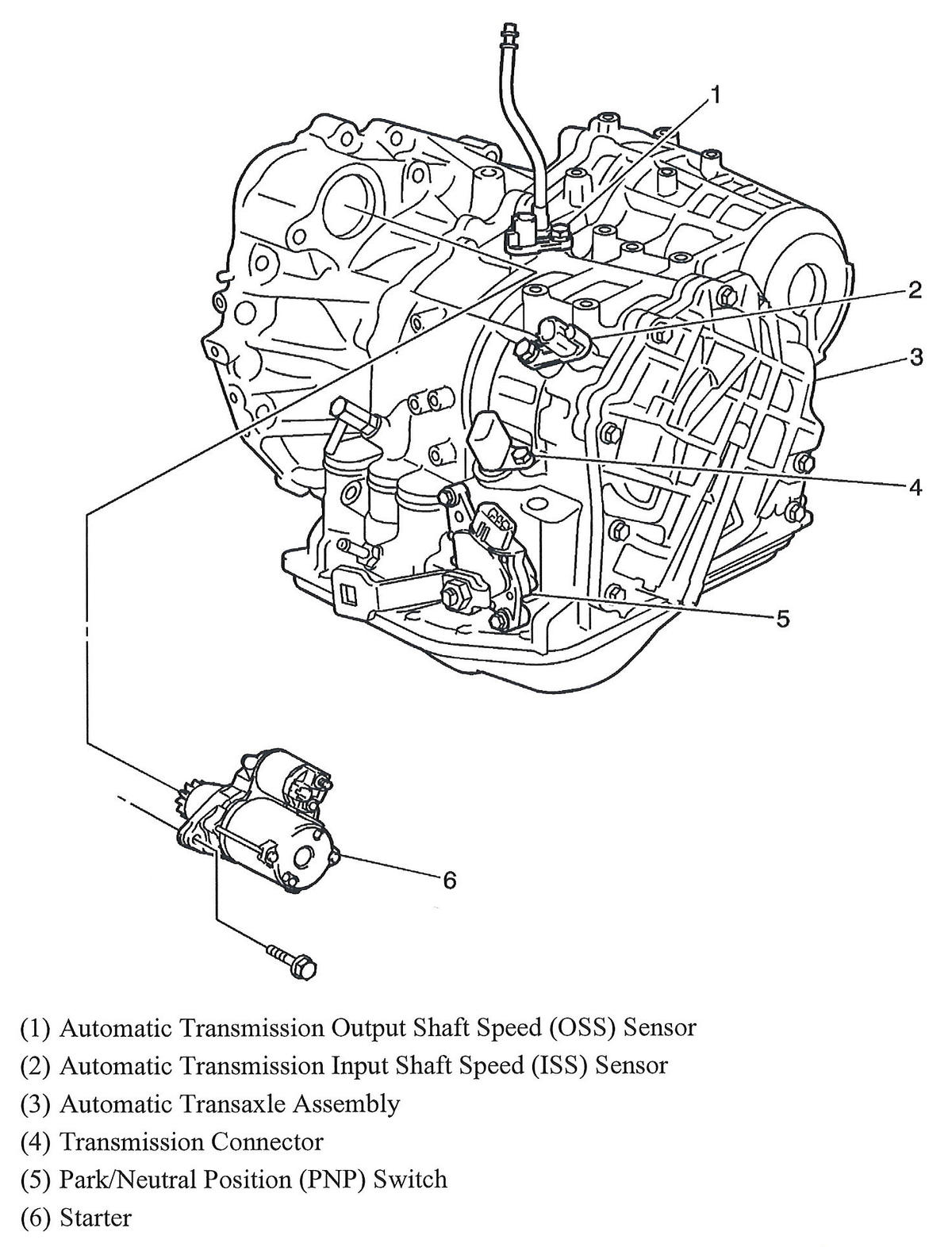

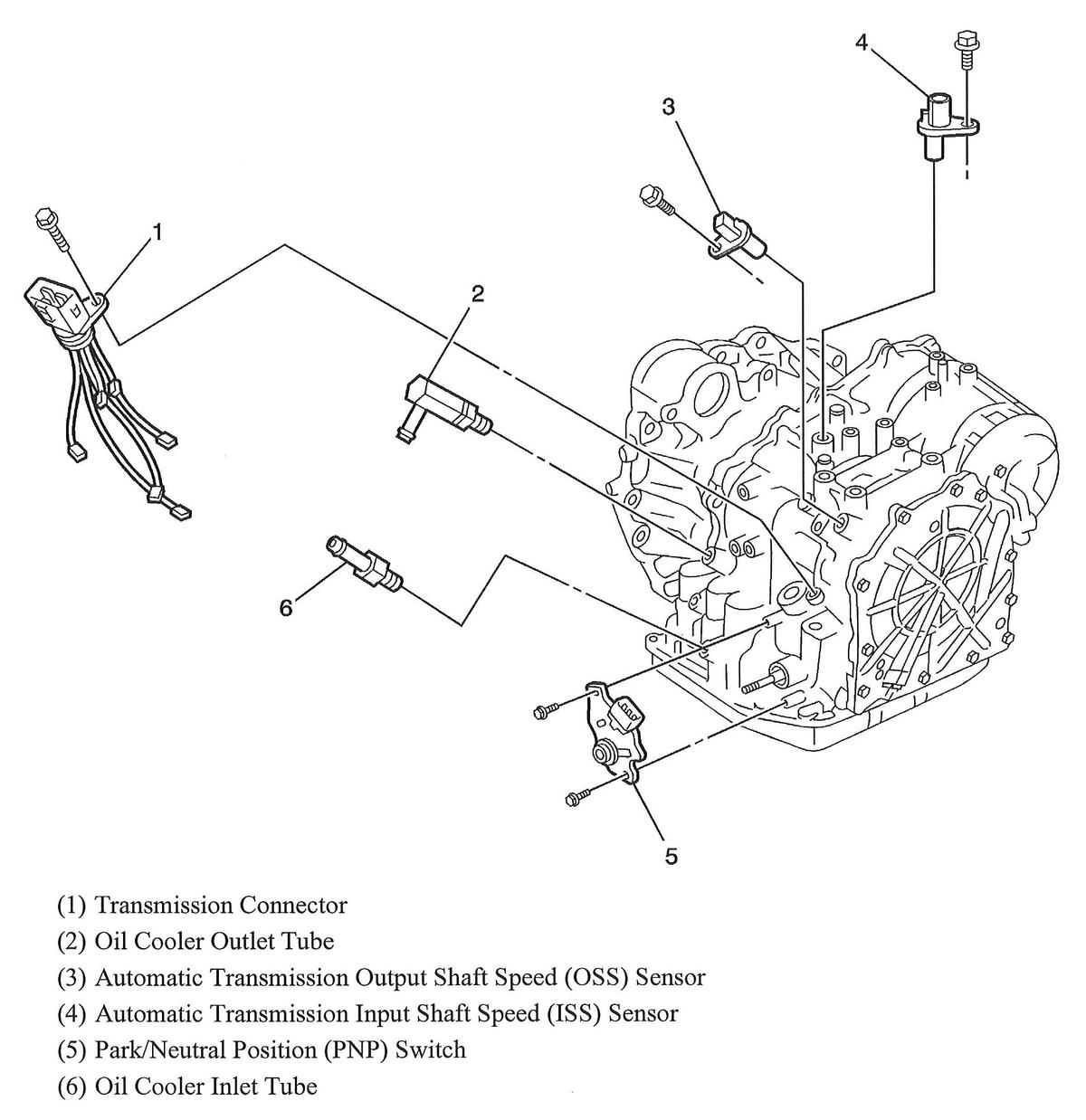

Fig 22: Automatic Transmission (4-SPD W/Overdrive)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Automatic Transmission (5-SPD)
Courtesy of GENERAL MOTORS CORP.

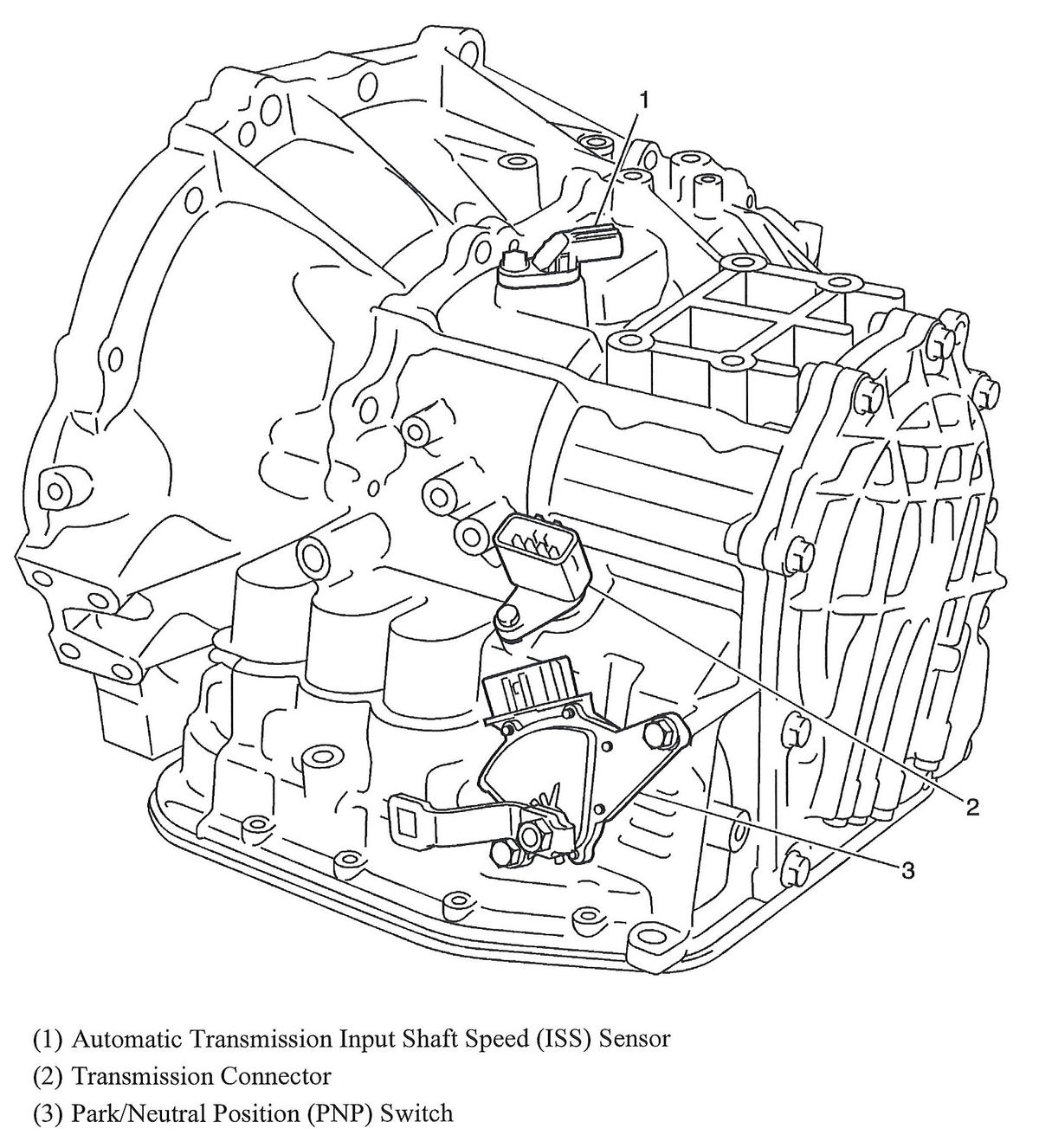

Fig 24: Automatic Transmission (4-SPD)
Courtesy of GENERAL MOTORS CORP.

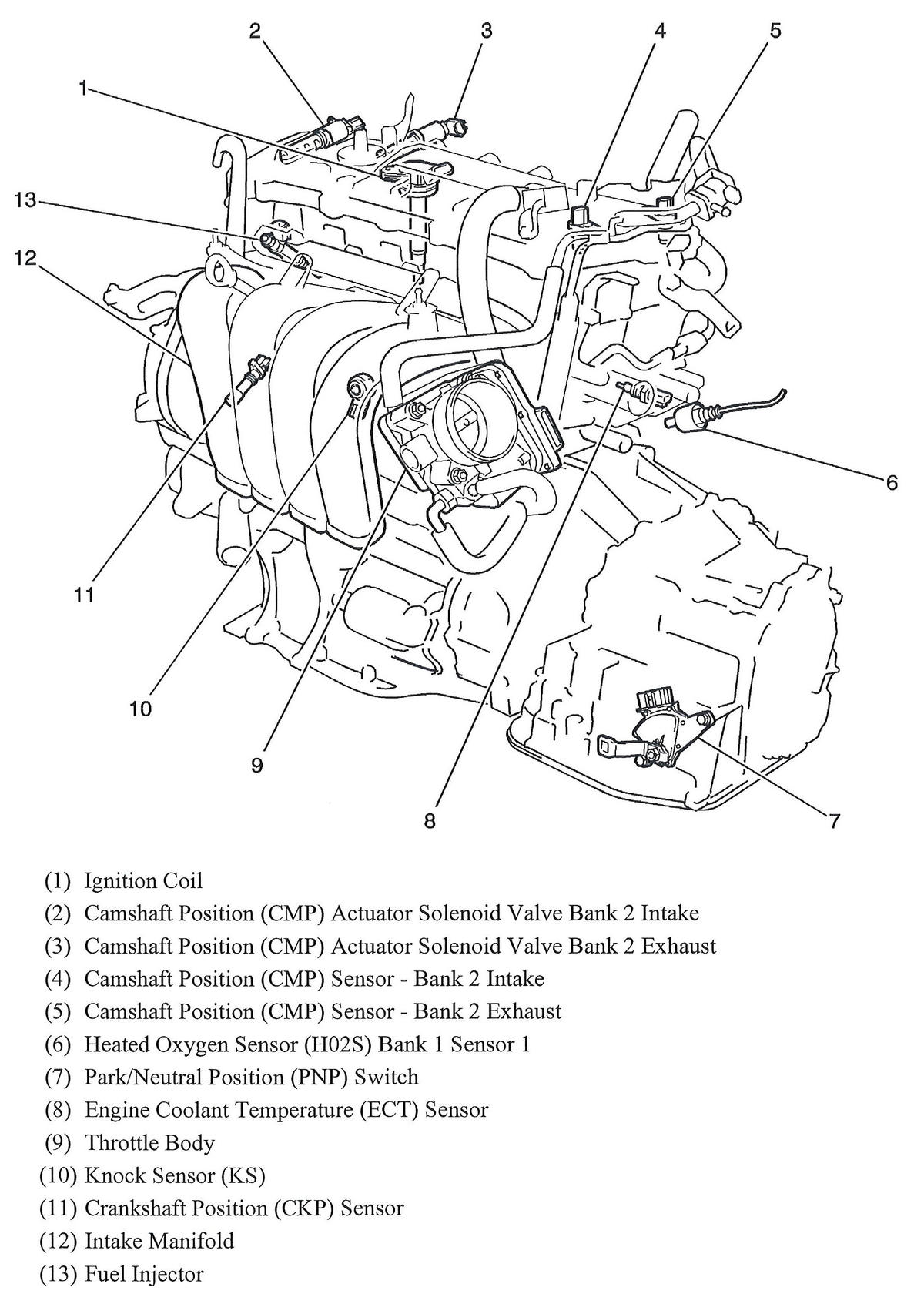

Fig 25: Left Side Of Engine (1.8L)
Courtesy of GENERAL MOTORS CORP.

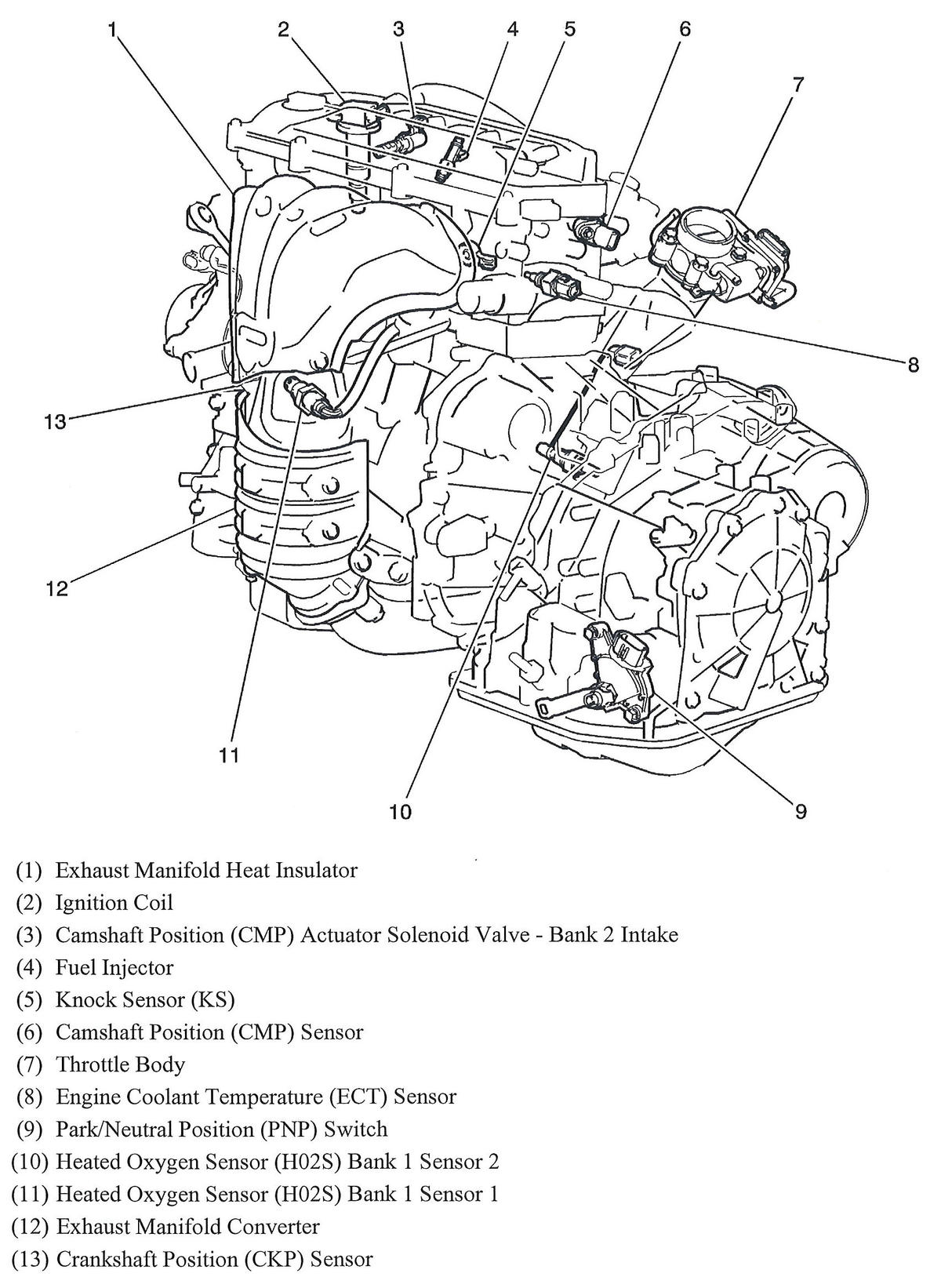

Fig 26: Left Side Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.

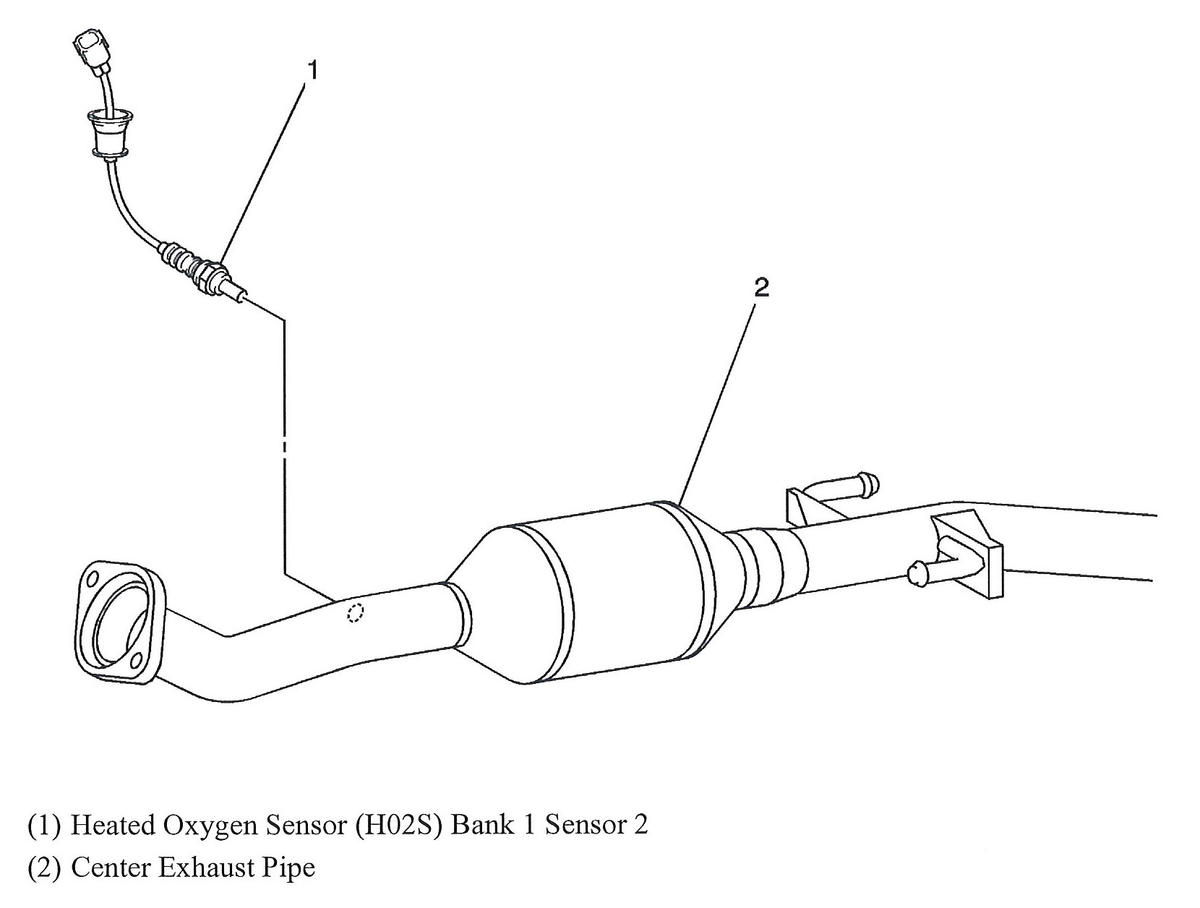

Fig 27: Exhaust (2.4L AWD)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Exhaust (2.4L, Except AWD)
Courtesy of GENERAL MOTORS CORP.

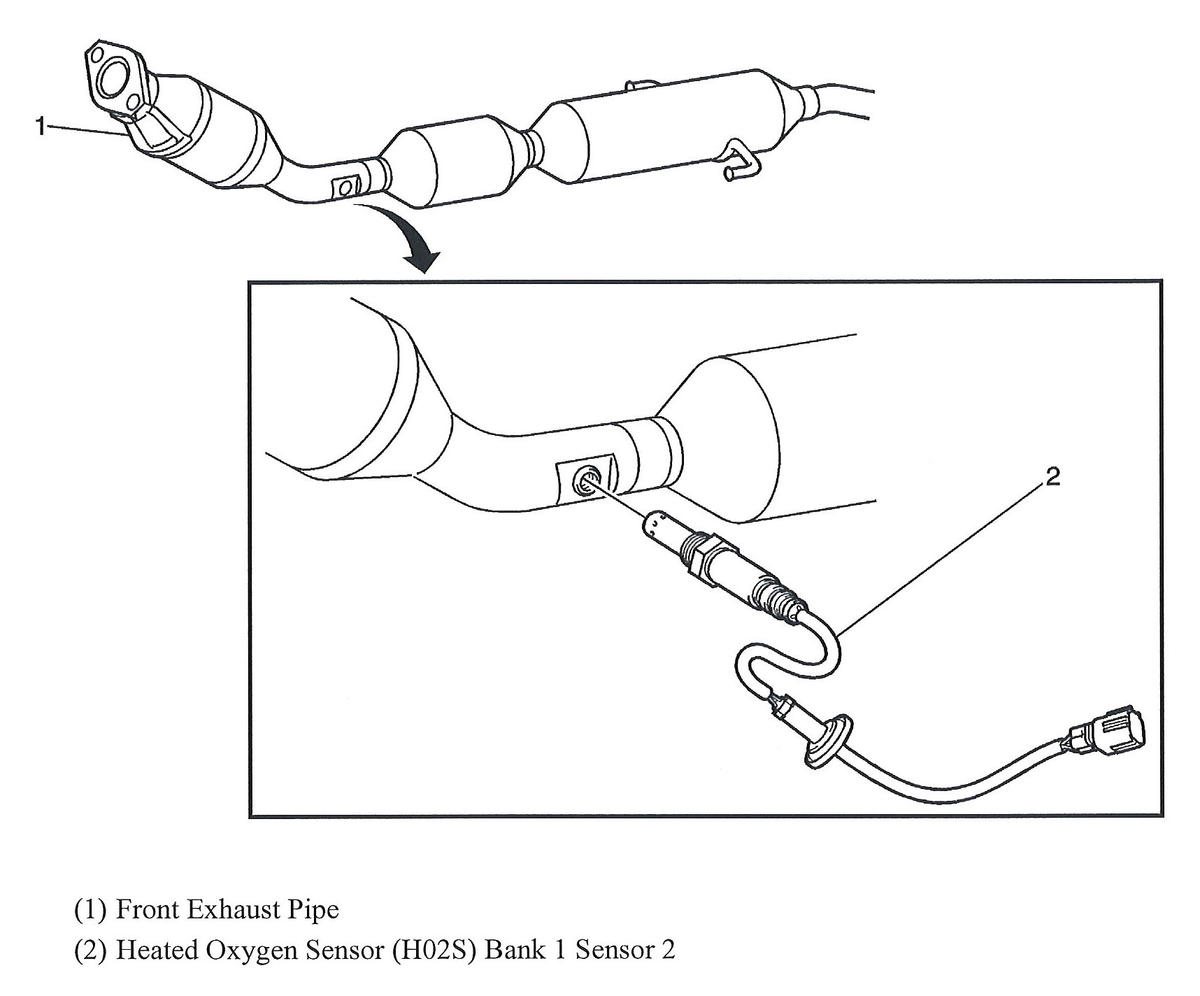

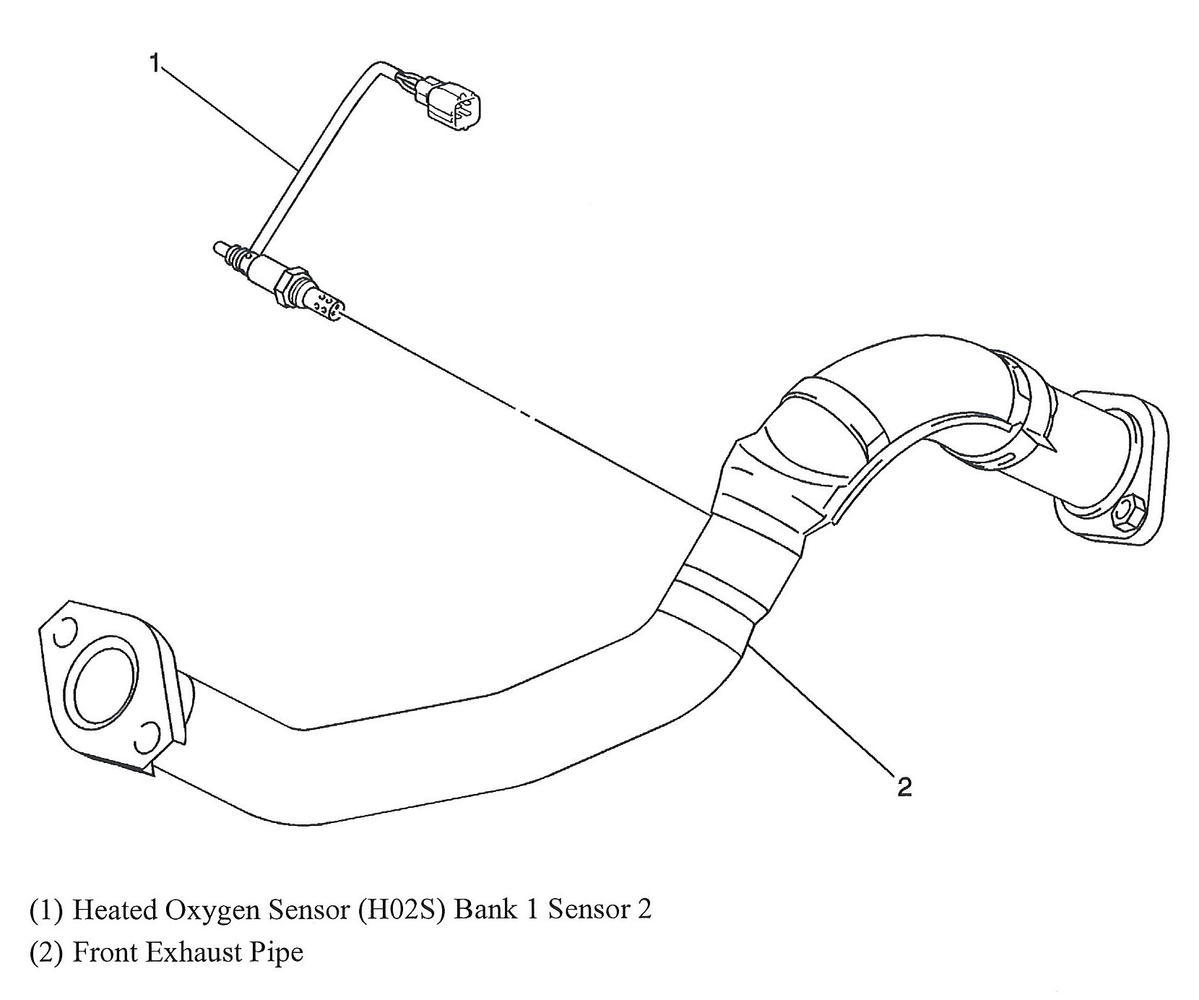

Fig 29: Exhaust (1.8L)
Courtesy of GENERAL MOTORS CORP.

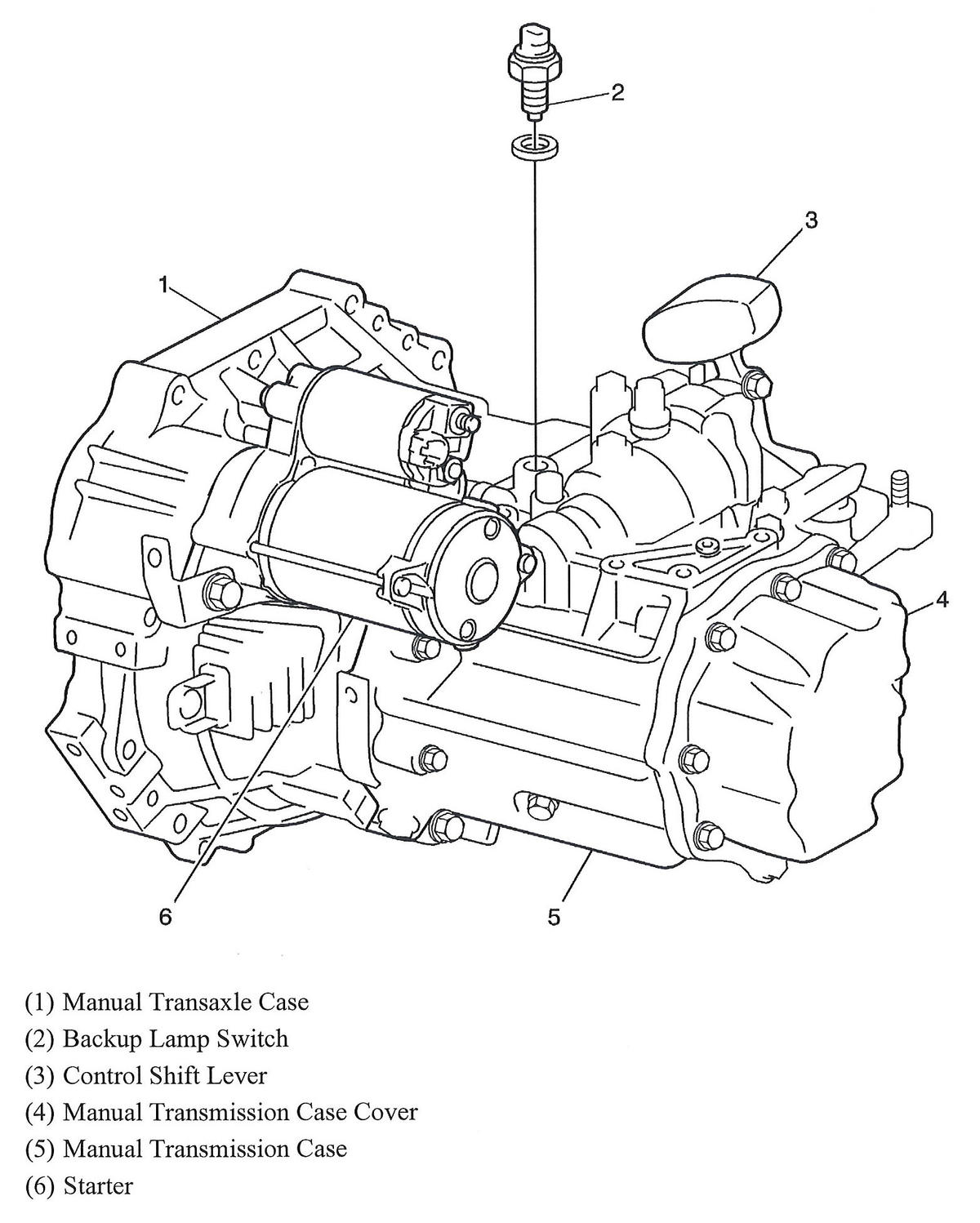

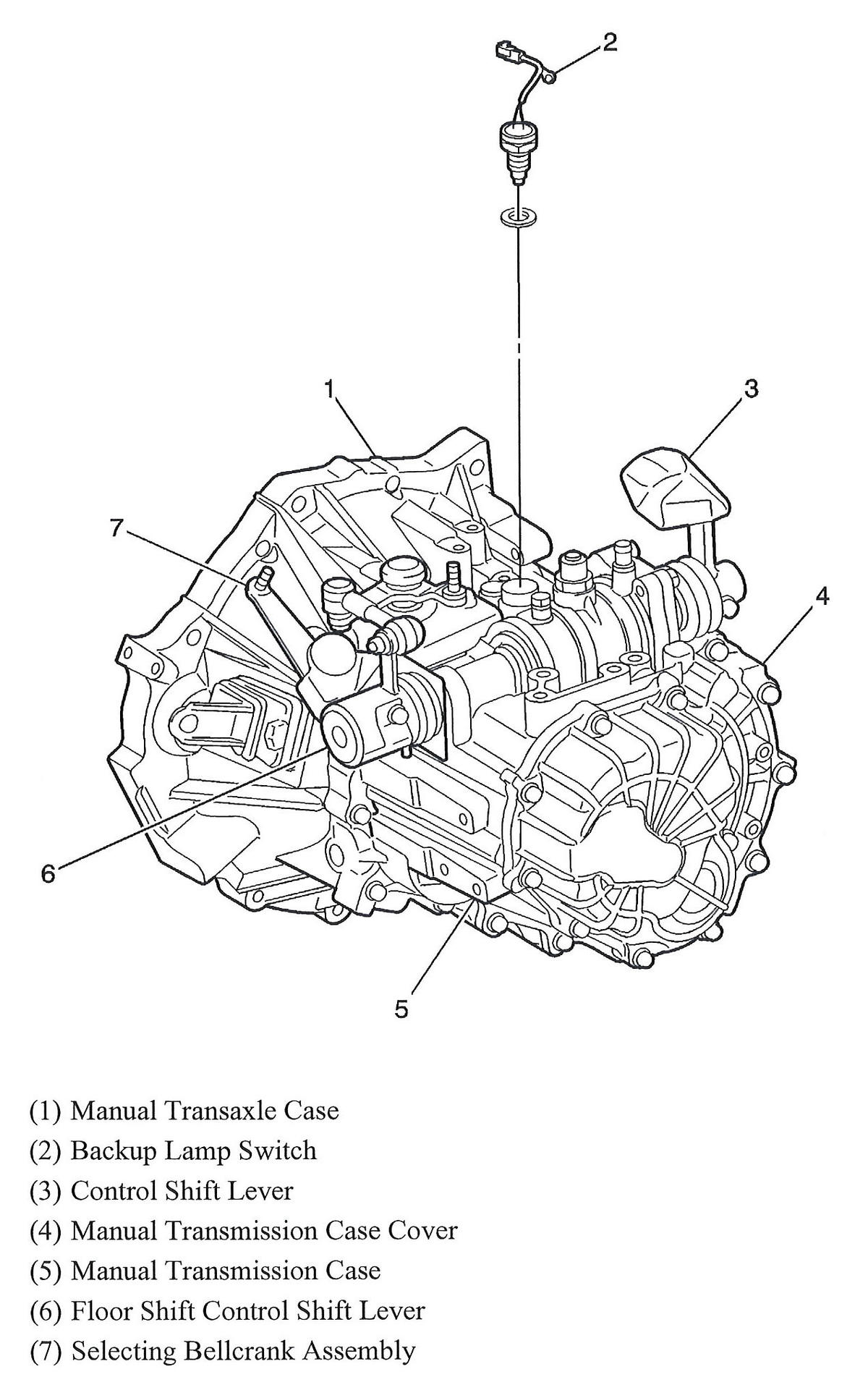

Fig 30: Manual Transmission (5-SPD)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Manual Transmission (5-SPD W/Overdrive)
Courtesy of GENERAL MOTORS CORP.

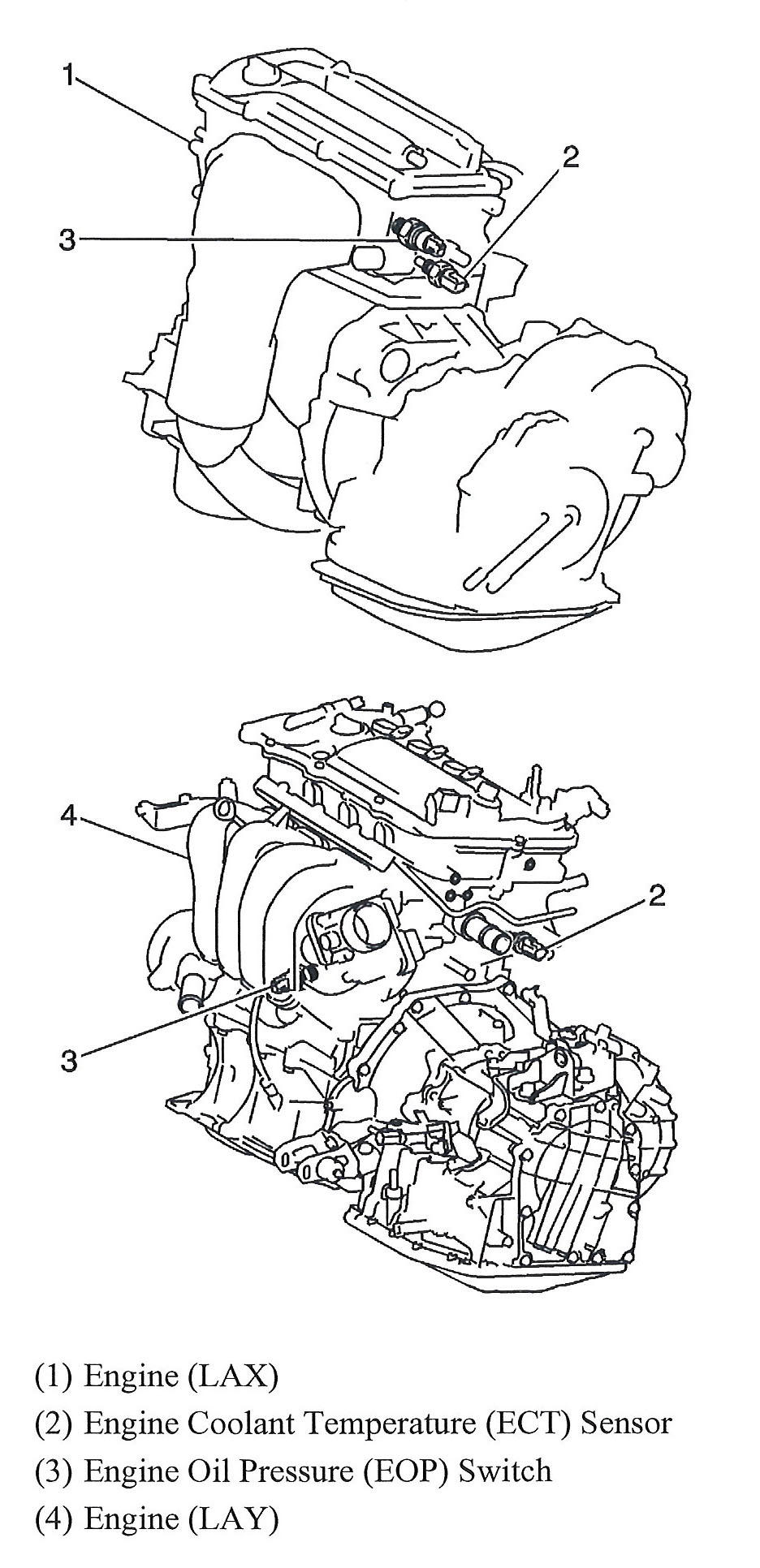

Fig 32: Engines (1.8L & 2.4L)
Courtesy of GENERAL MOTORS CORP.

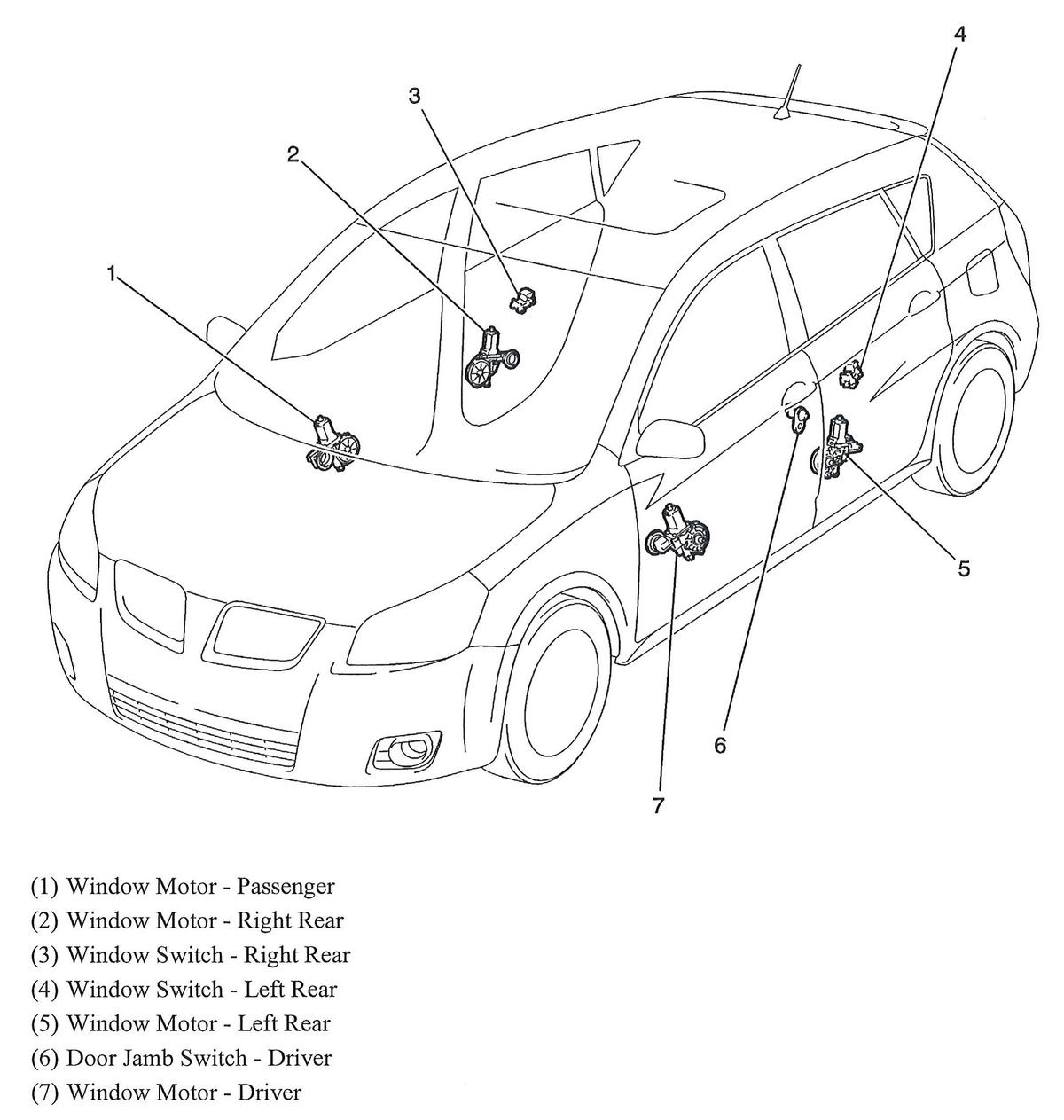

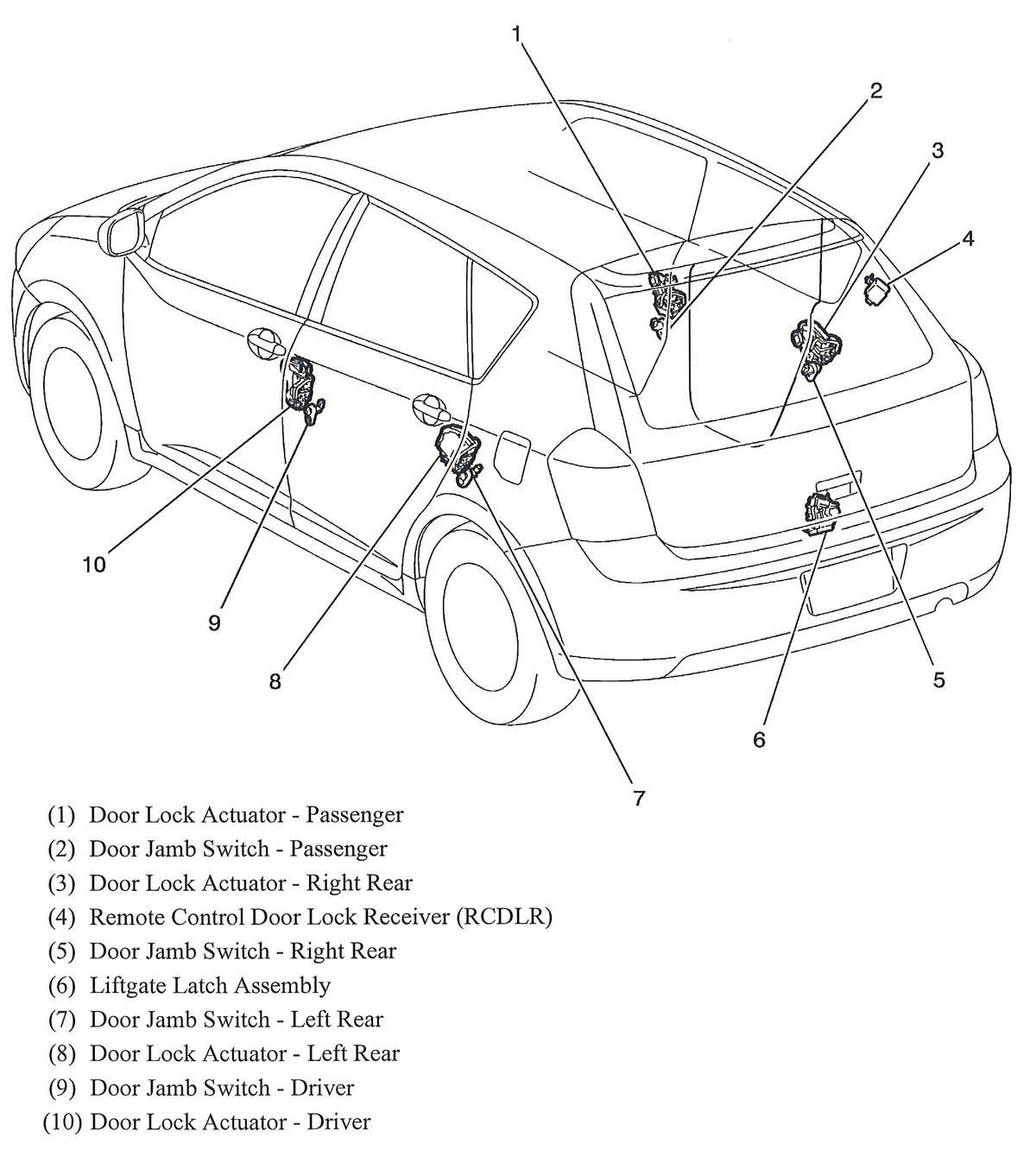

Fig 33: Doors
Courtesy of GENERAL MOTORS CORP.
Fig 34: Doors
Courtesy of GENERAL MOTORS CORP.

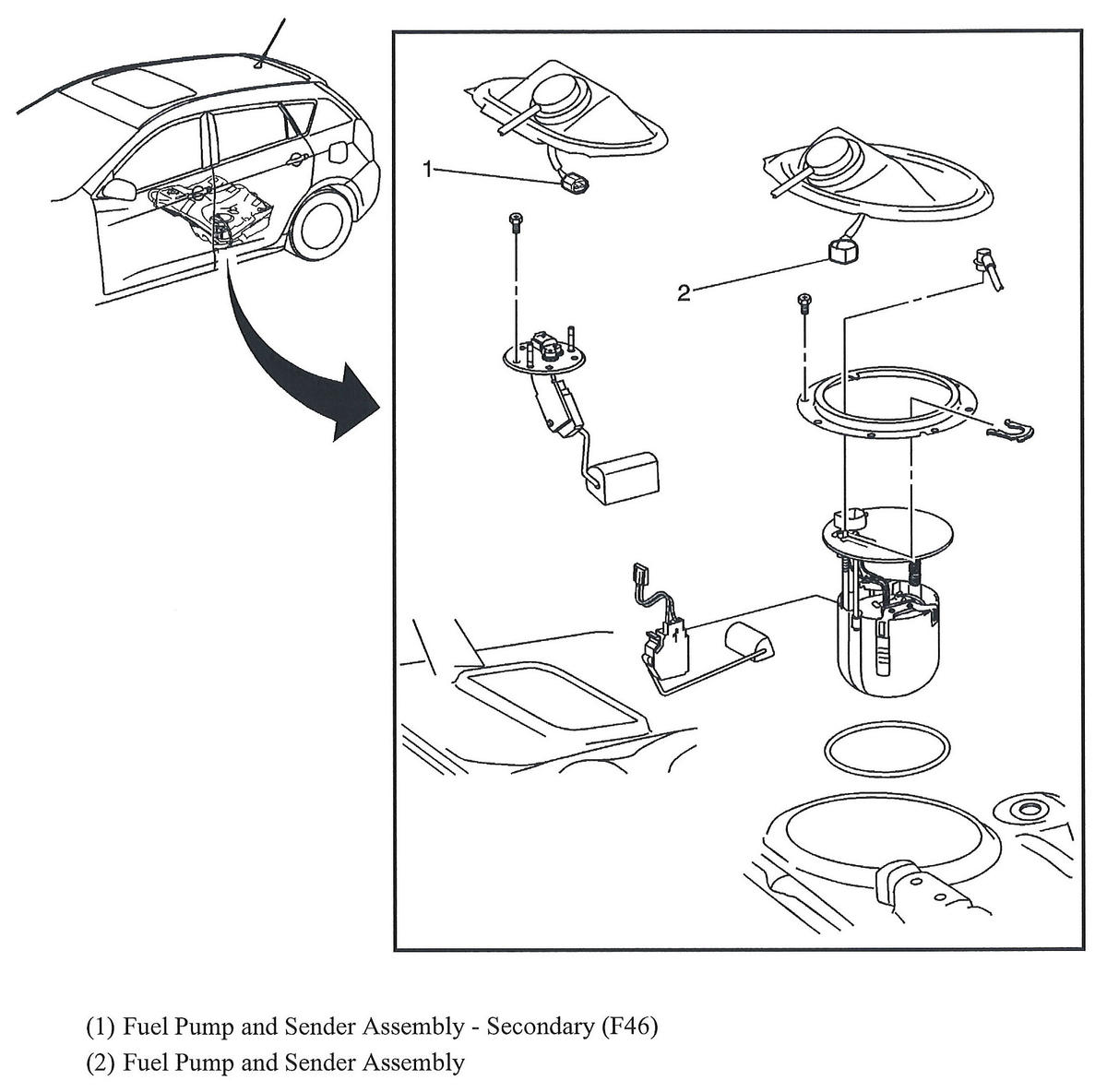

Fig 35: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

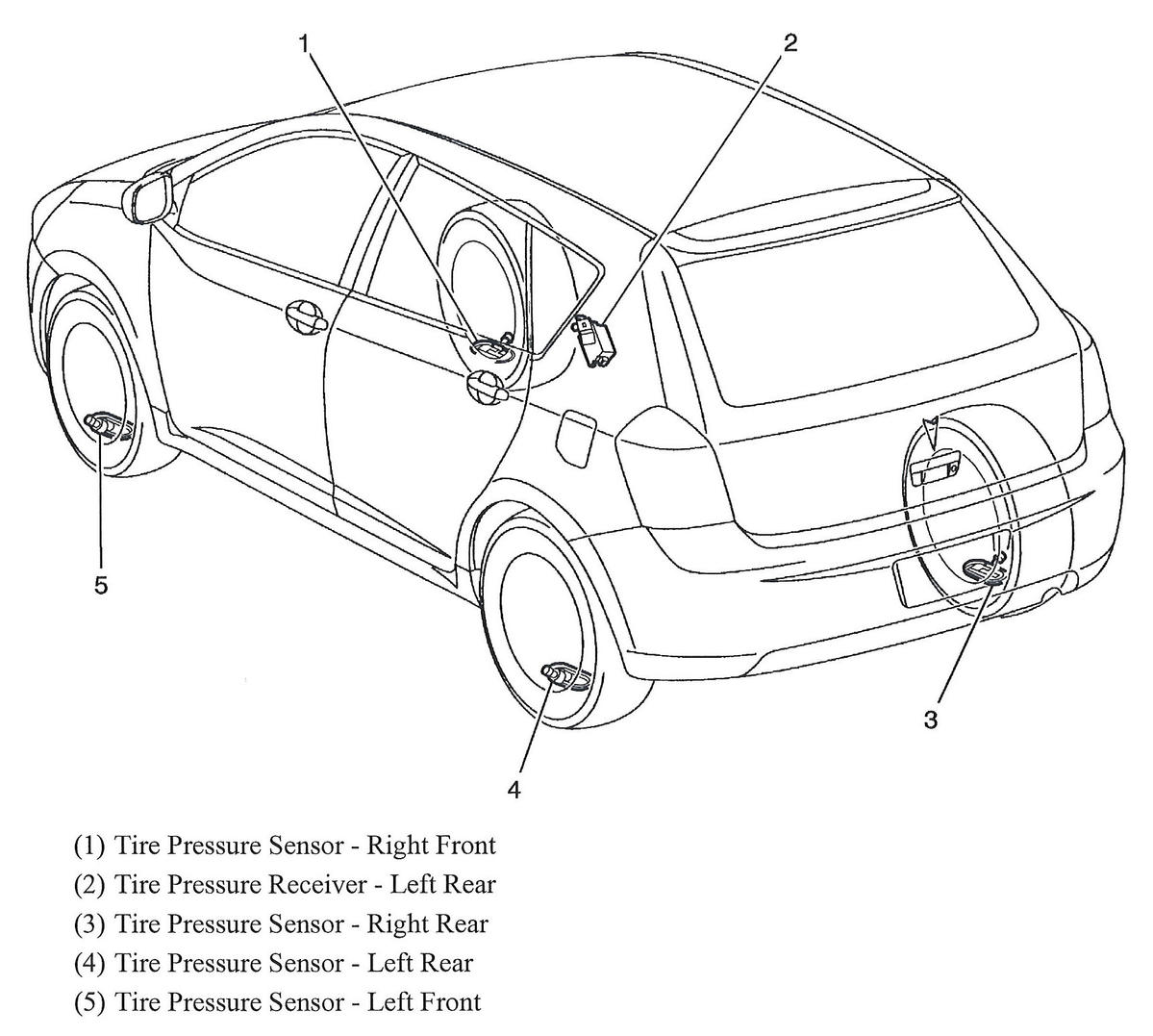

Fig 36: Vehicle Overview (Tire Pressure Monitor System)
Courtesy of GENERAL MOTORS CORP.

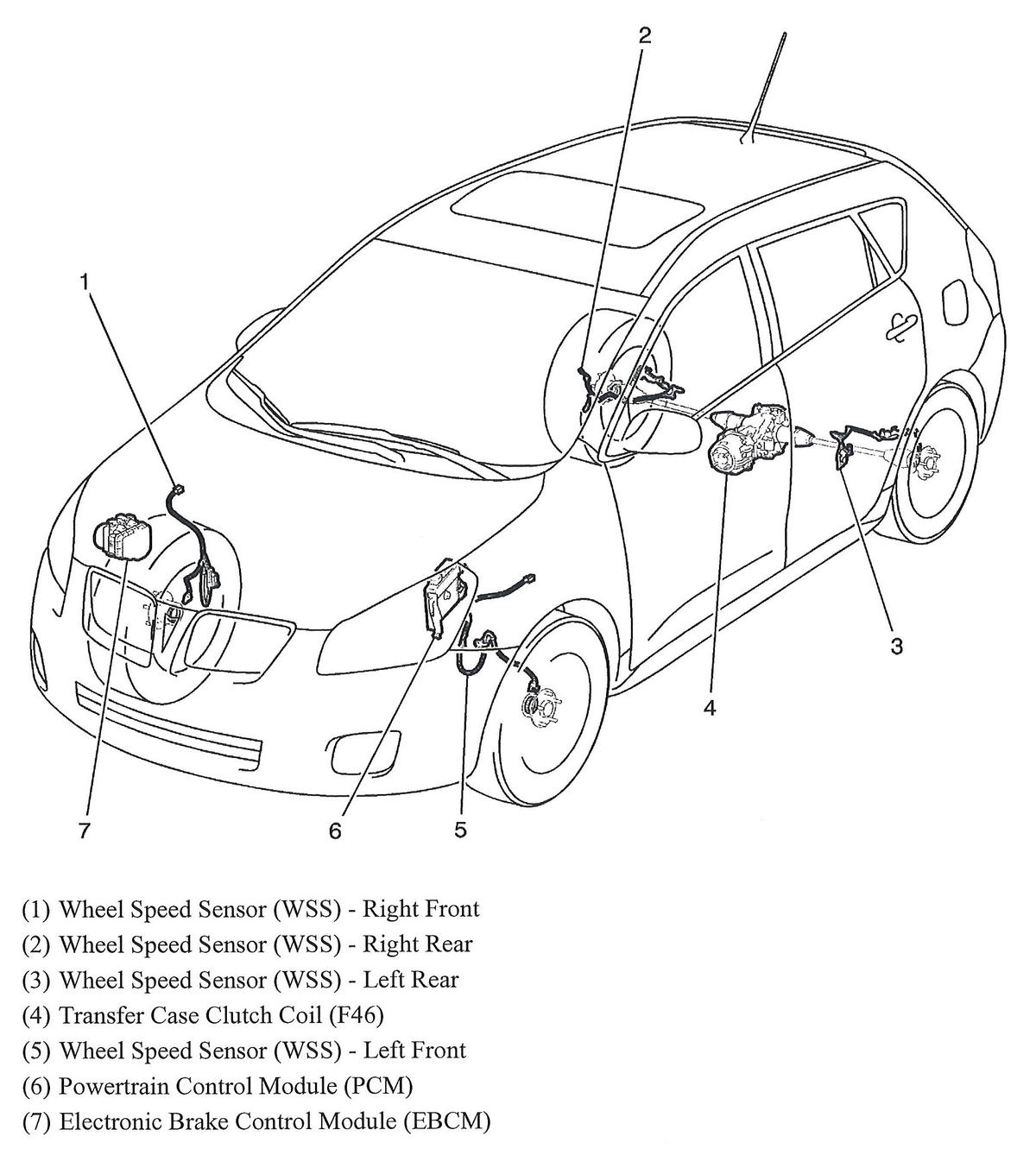

Fig 37: Vehicle Overview (Wheel Speed Sensor System)
Courtesy of GENERAL MOTORS CORP.

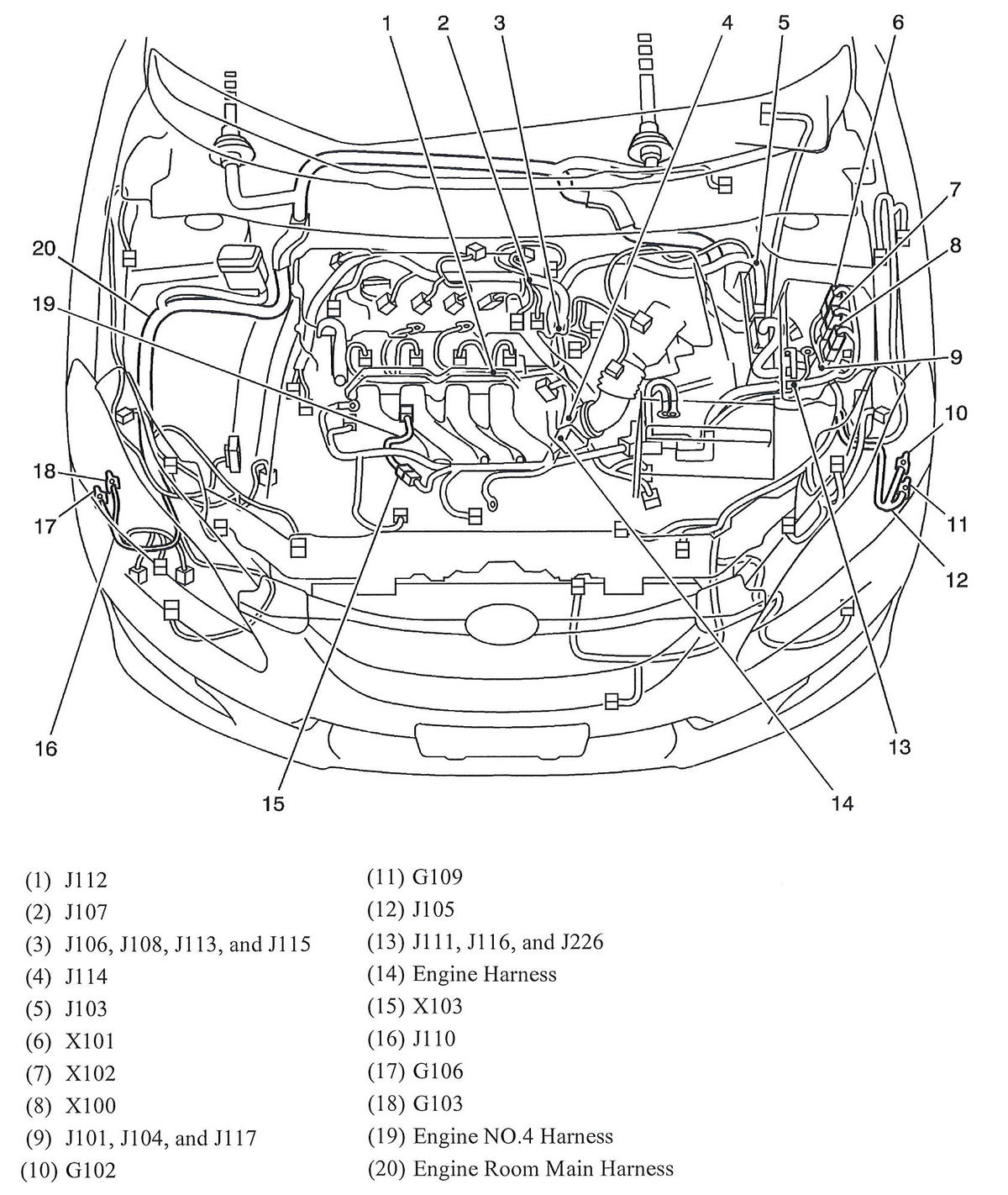

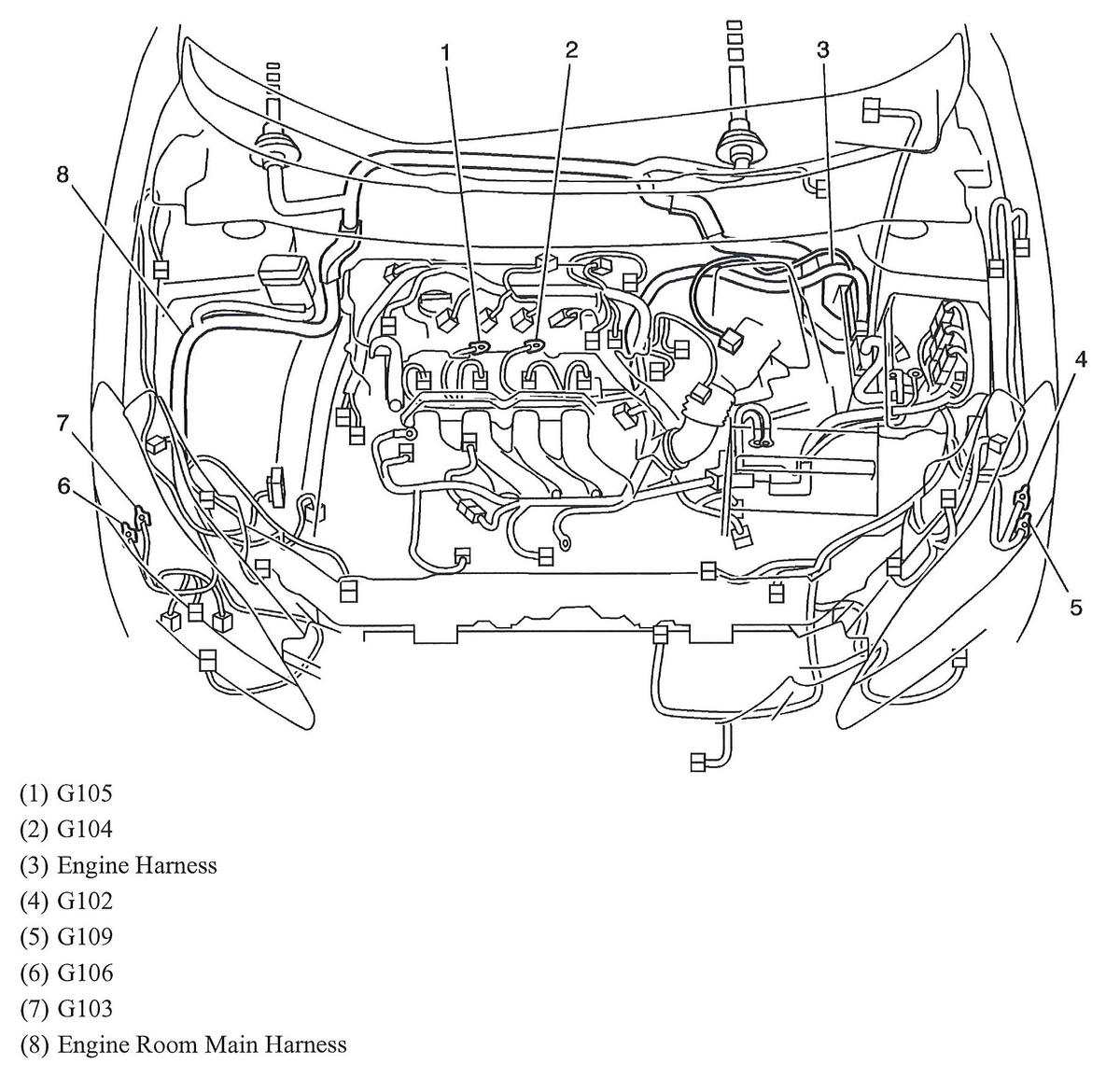

Fig 38: Engine Compartment (1.8L)
Courtesy of GENERAL MOTORS CORP.

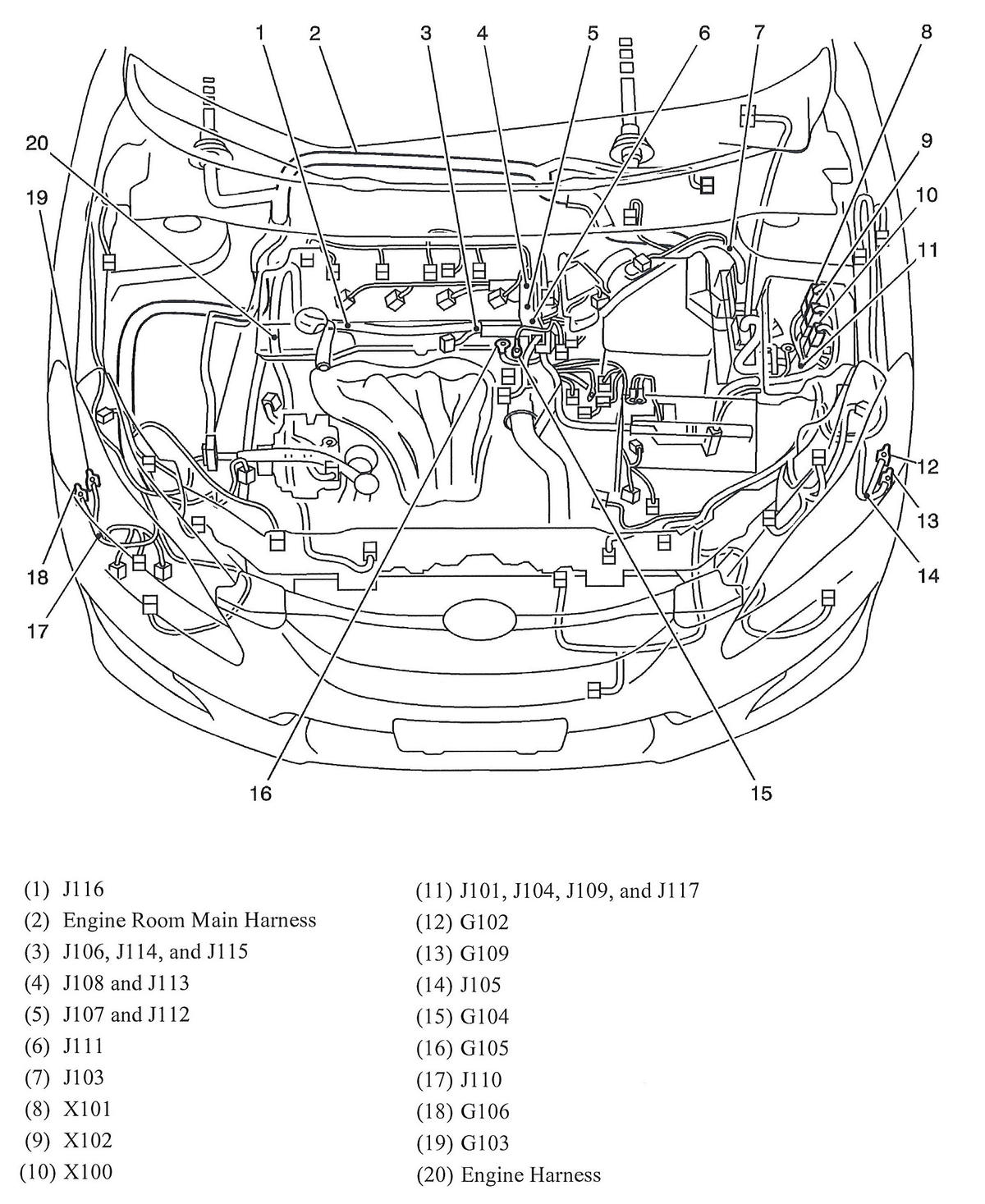

Fig 39: Engine Compartment (2.4L)
Courtesy of GENERAL MOTORS CORP.

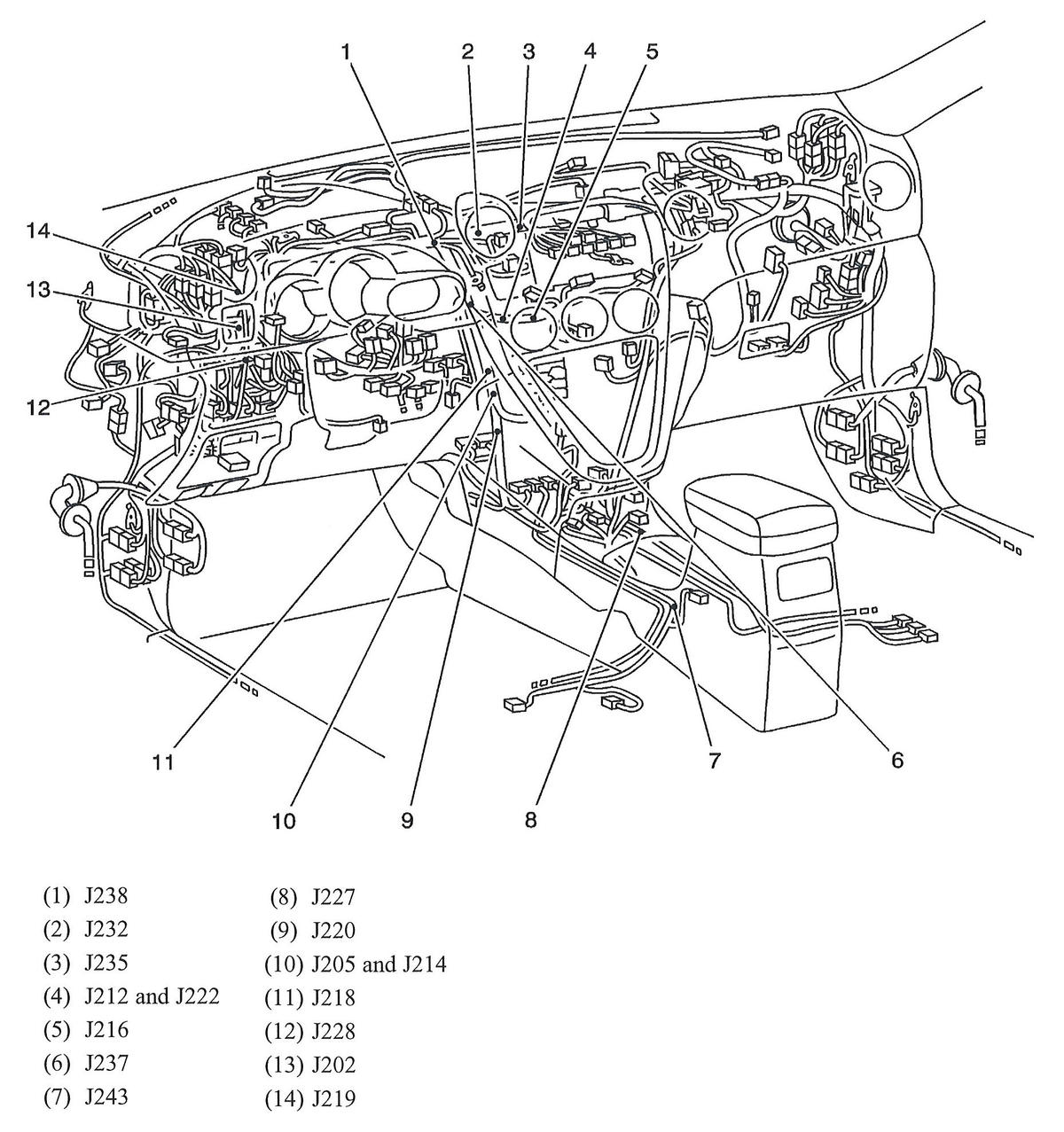

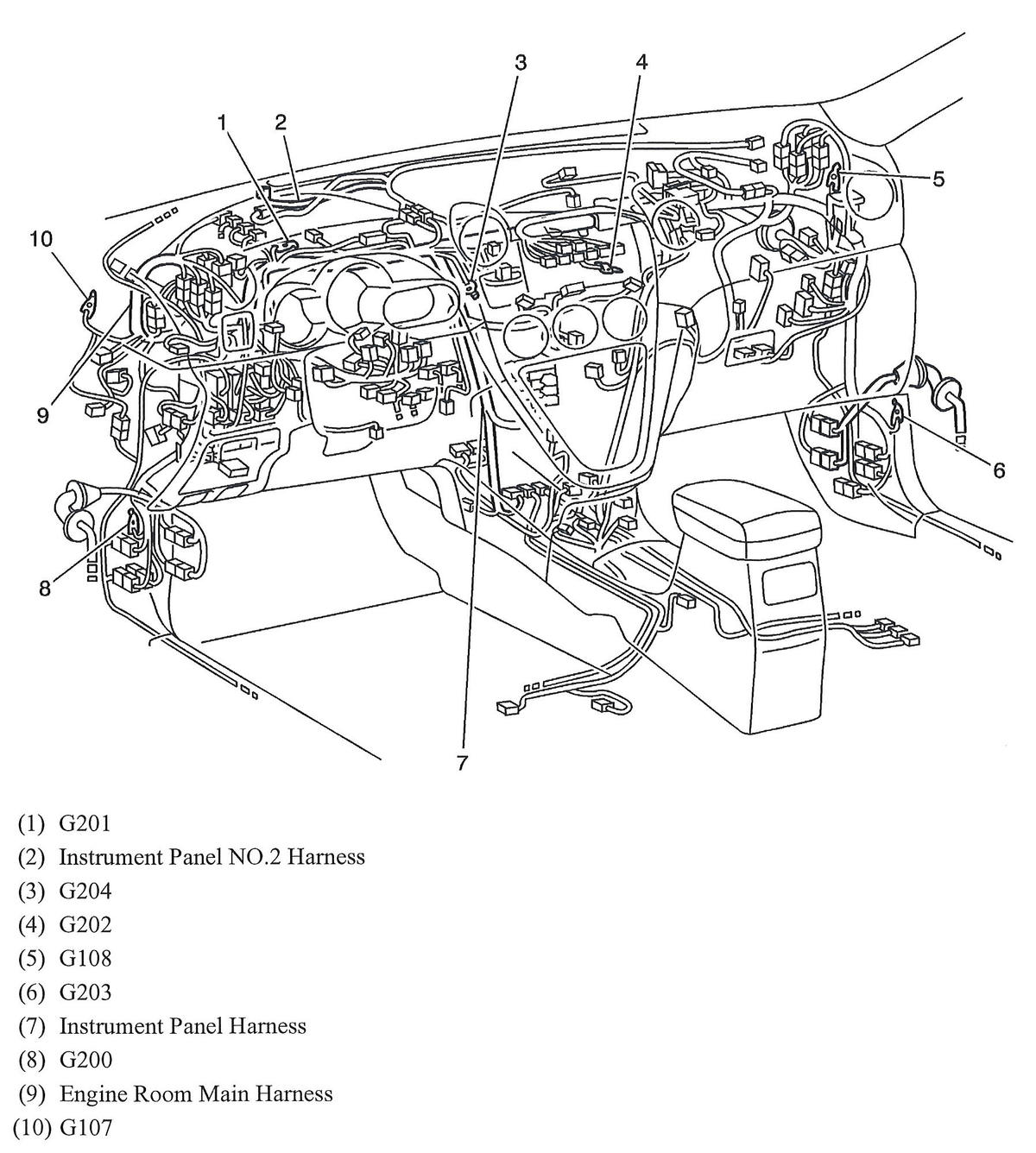

Fig 40: Dash & Kick Panels
Courtesy of GENERAL MOTORS CORP.

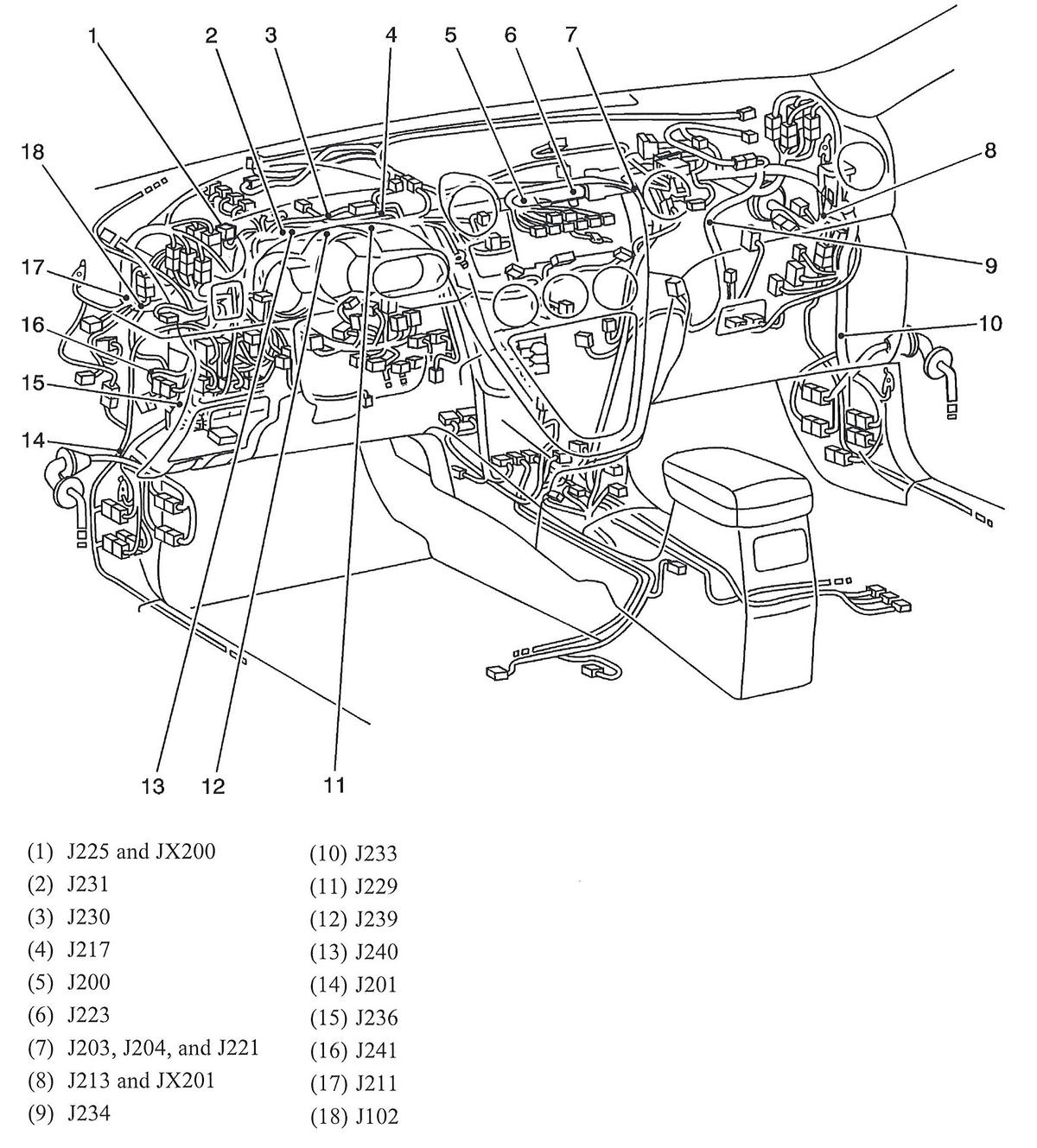

Fig 41: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 42: Dash
Courtesy of GENERAL MOTORS CORP.

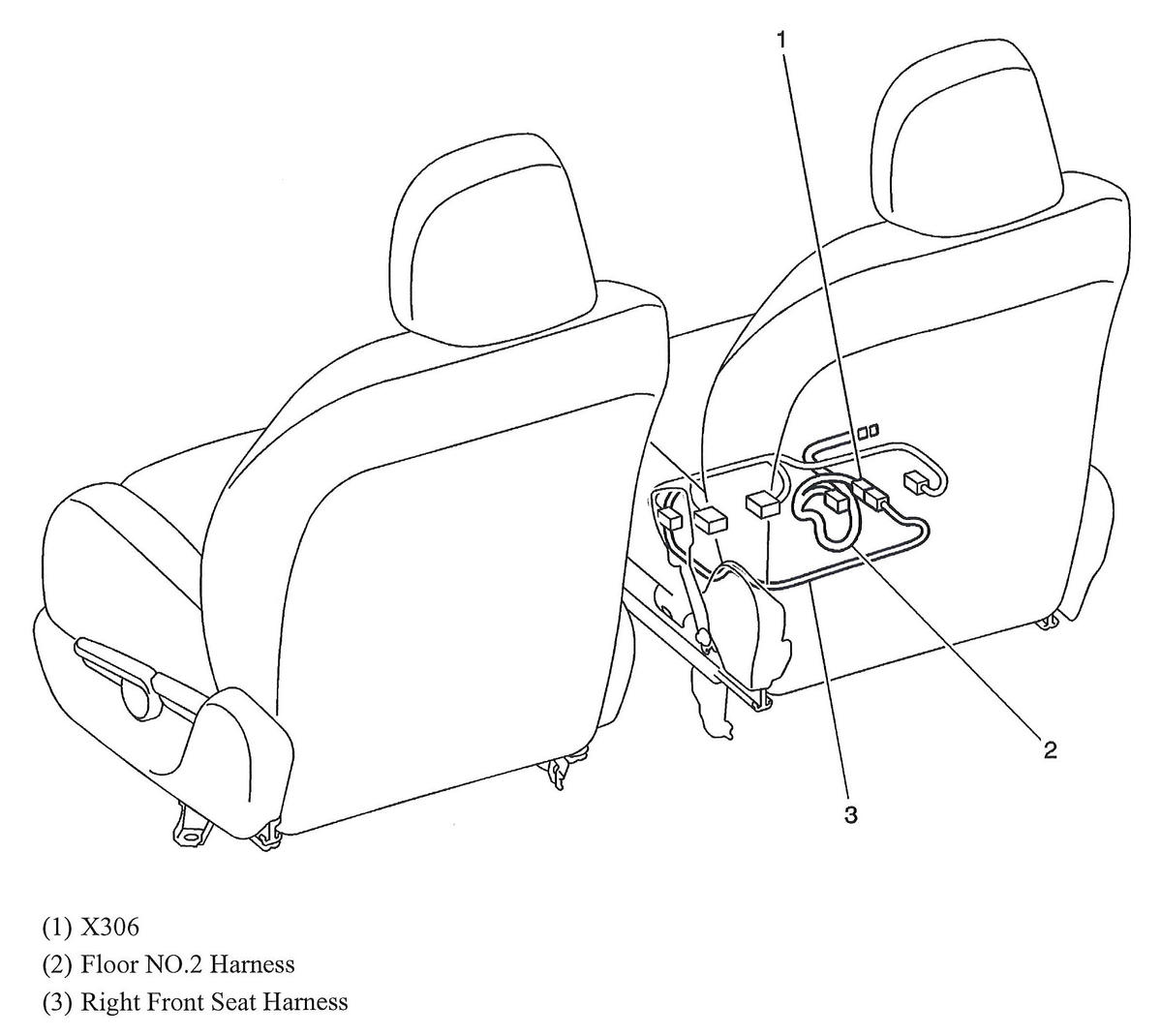

Fig 43: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 44: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 45: Engine Compartment (1.8L)
Courtesy of GENERAL MOTORS CORP.

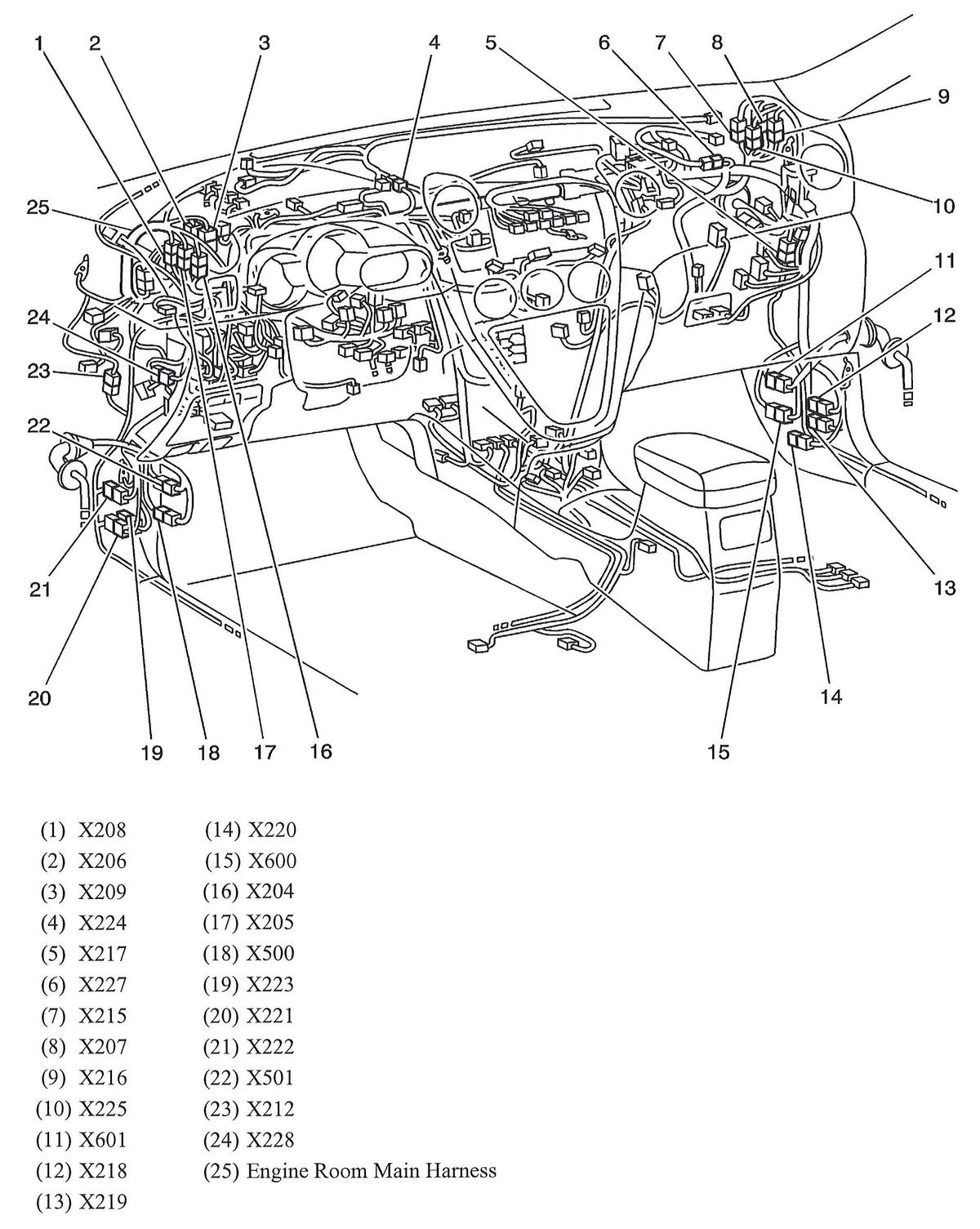

Fig 46: Dash & Kick Panels
Courtesy of GENERAL MOTORS CORP.
Fig 47: Instrument Panel Fuse Block (Front)
Courtesy of GENERAL MOTORS CORP.

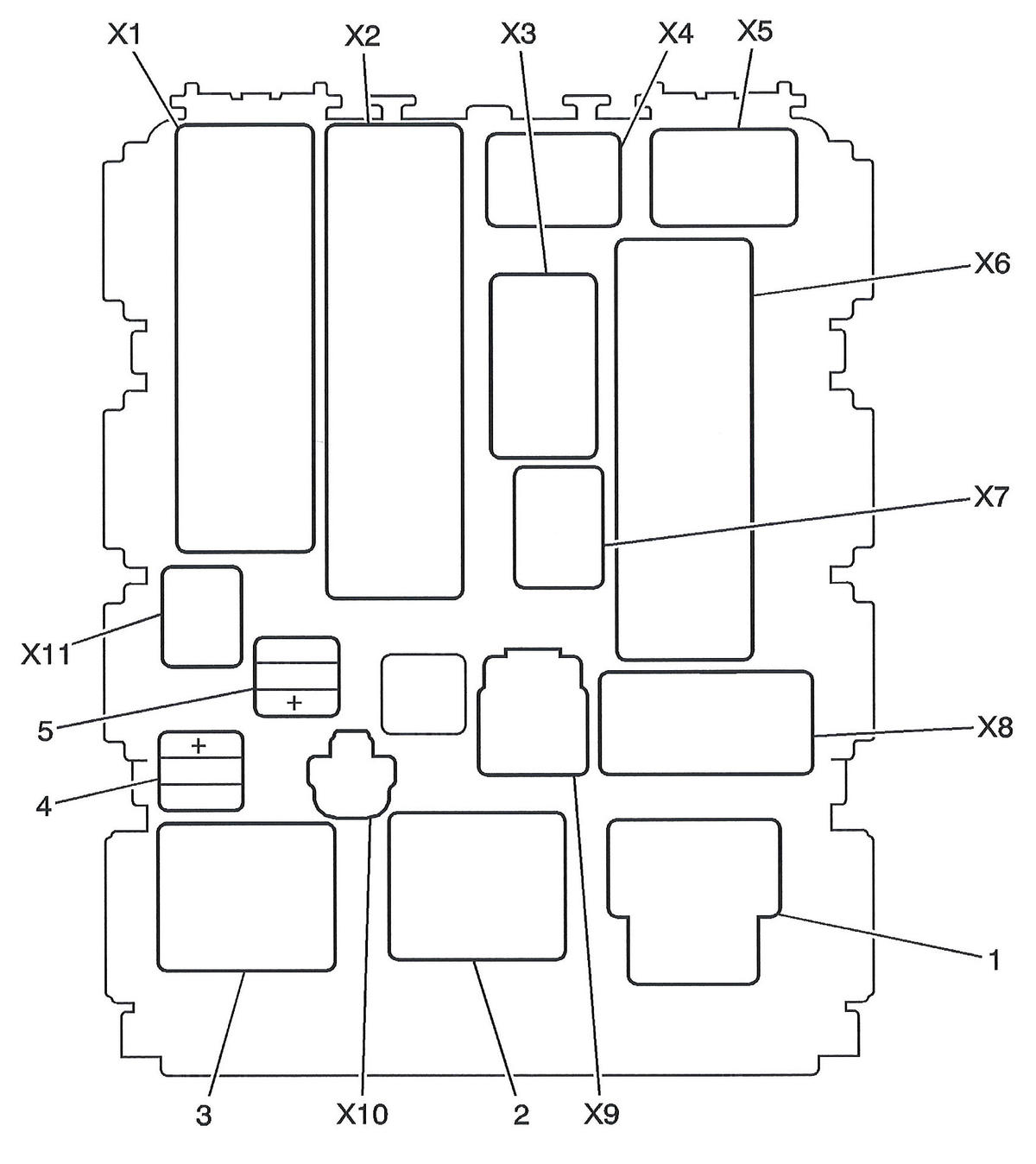

Fig 48: Instrument Panel Fuse Block (Rear)
Courtesy of GENERAL MOTORS CORP.

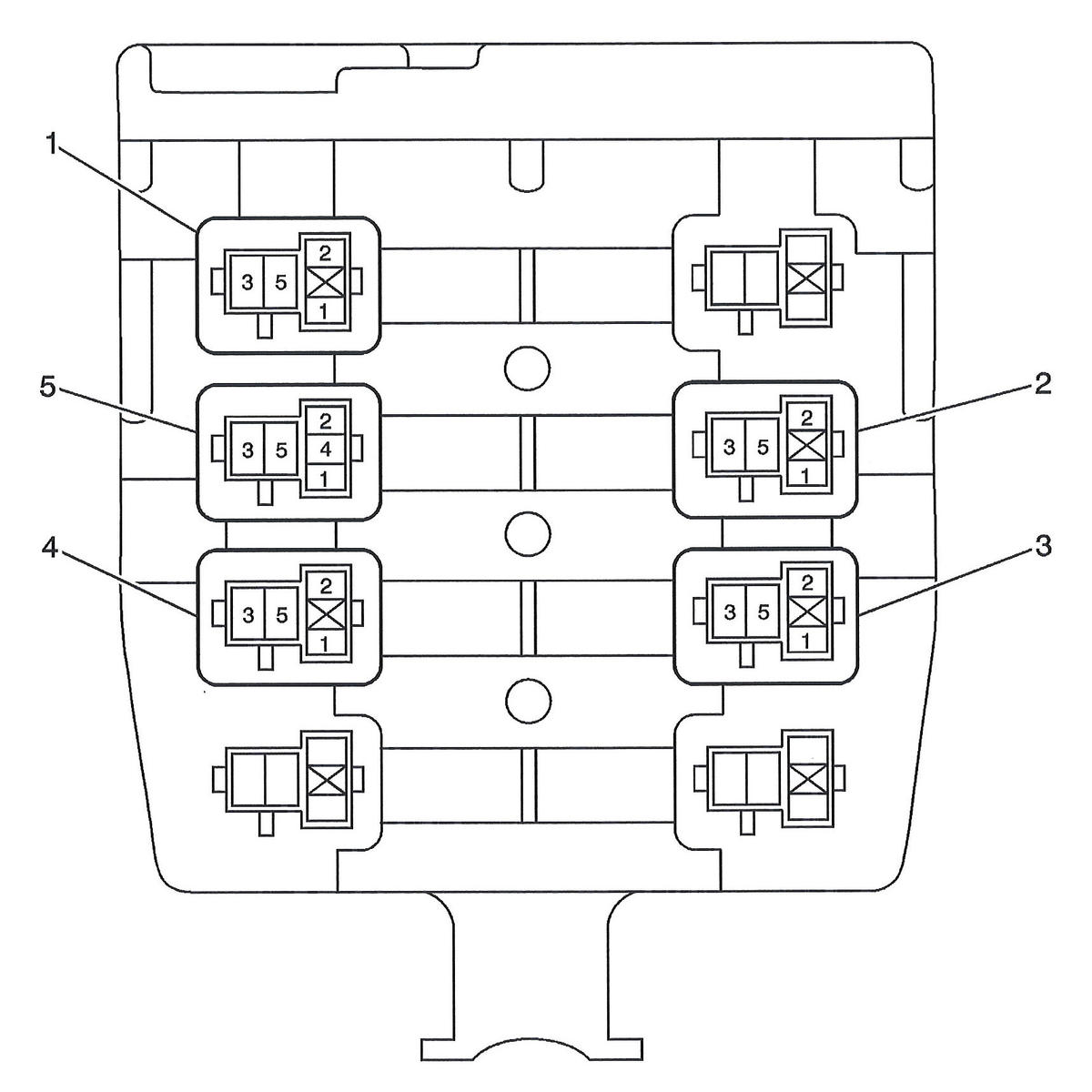

Fig 49: Instrument Panel Relay Block
Courtesy of GENERAL MOTORS CORP.

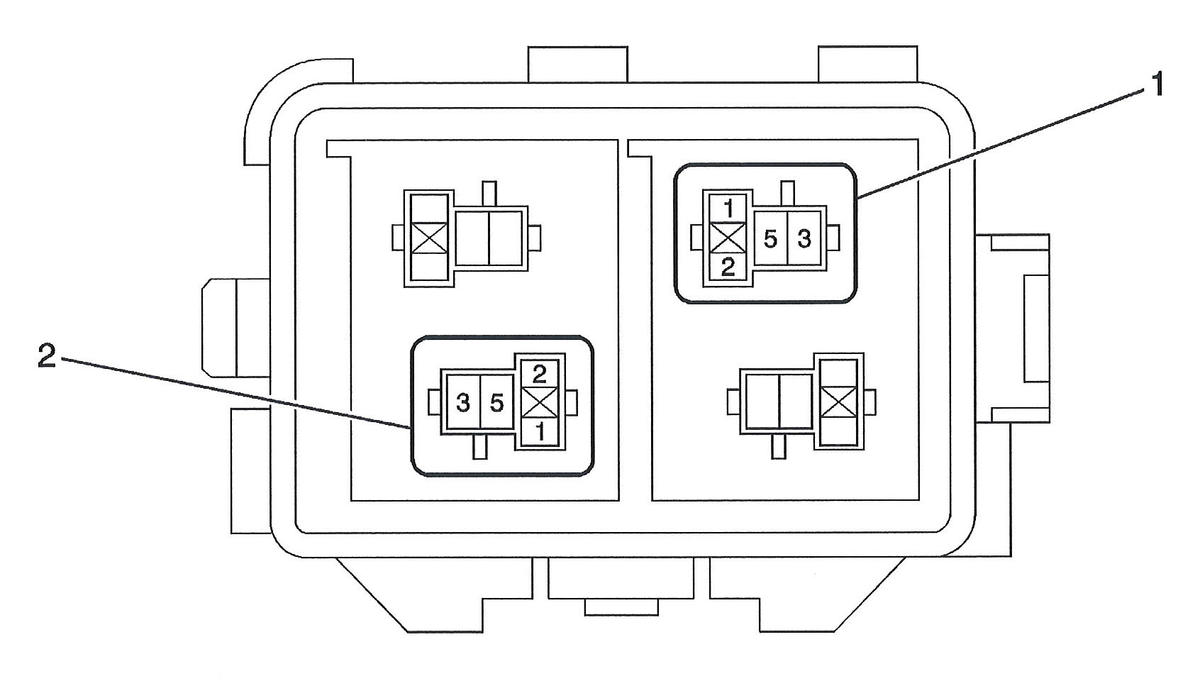

Fig 50: Underhood Relay Block
Courtesy of GENERAL MOTORS CORP.
