Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

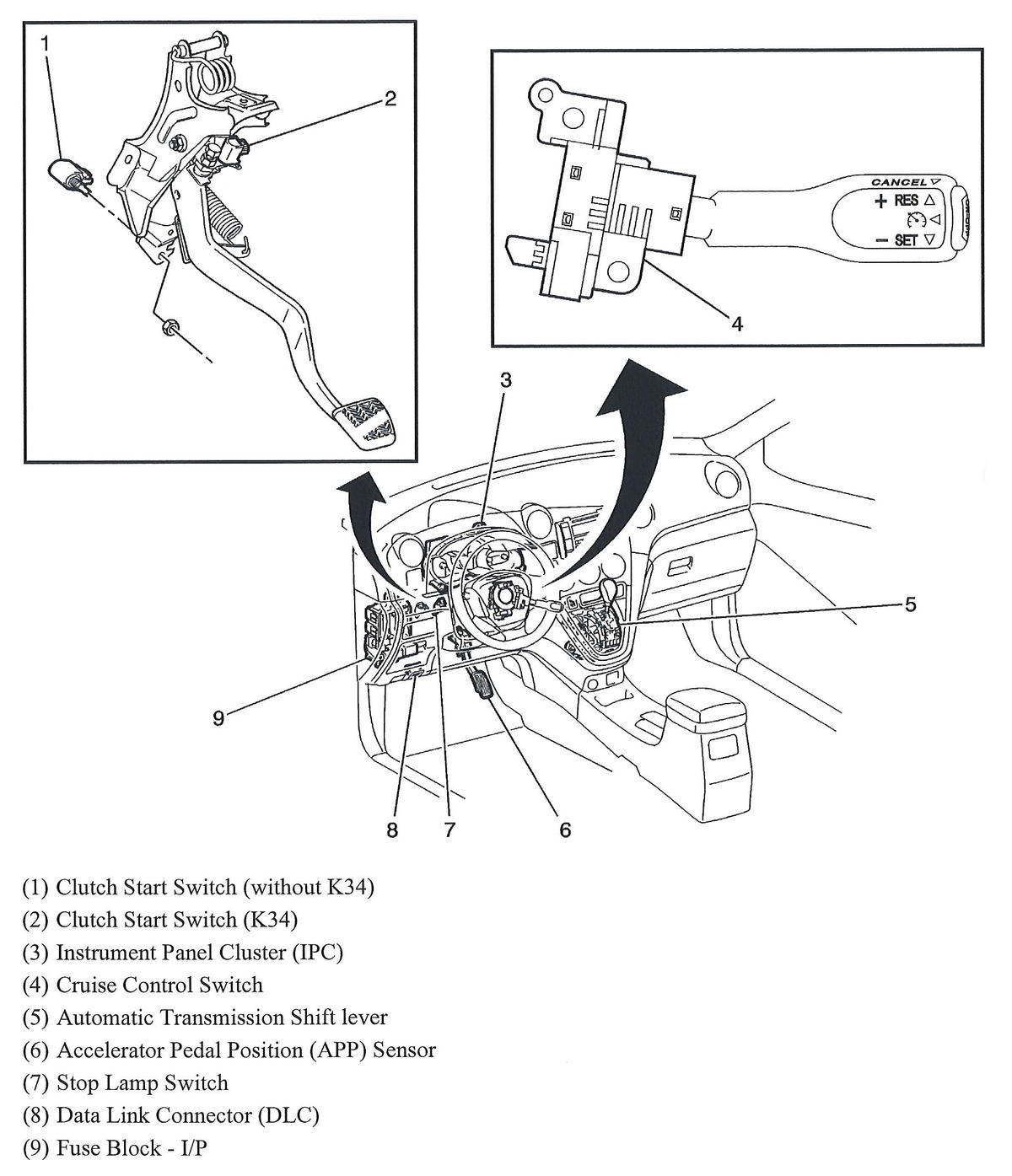

Fuse Block - I/P Left end of dash. See Figure.
Fuse Block - Underhood Left side of engine compartment.
Junction Block Right side of dash.
Junction Block - I/P Right side of dash.
Junction Block - I/P (Left) Left side of dash.
Junction Block - I/P (Right) Right side of dash.
Relay Block - I/P Center of dash. See Figure.
Relay Block - Underhood Right rear of engine compartment.
