Removal Procedure

  1. Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement .
  2. Remove the front side door trim panel applique. Refer to Front Side Door Trim Panel Applique Replacement .

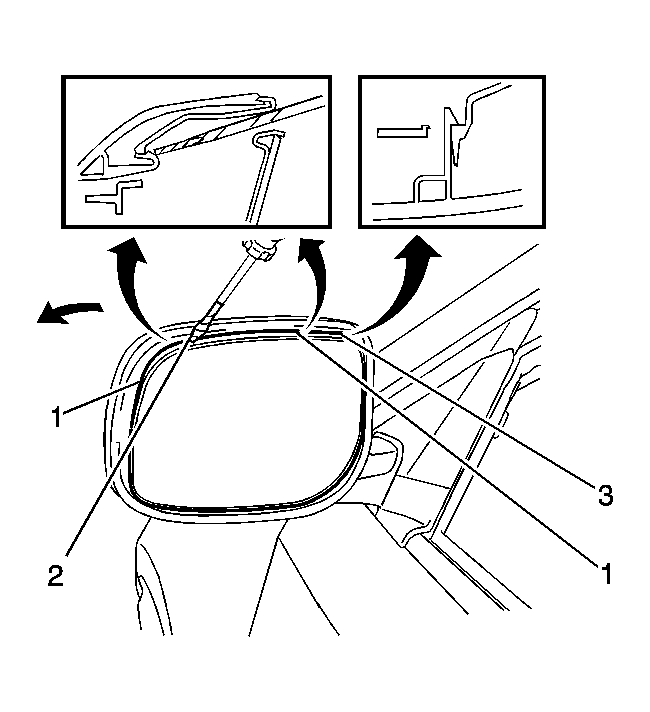

    3. Fig 1: Disengaging Clips From Clearance Between Outer Mirror Glass & Visor
    GM2015632Courtesy of GENERAL MOTORS CORP.
  3. Push the lower part of the mirror surface and tilt it.
  4. Using a taped flat-bladed tool (2) Disengage the two clips (1) from the clearance between the outer mirror glass and visor.
  5. Disengage the remaining clip. (3).

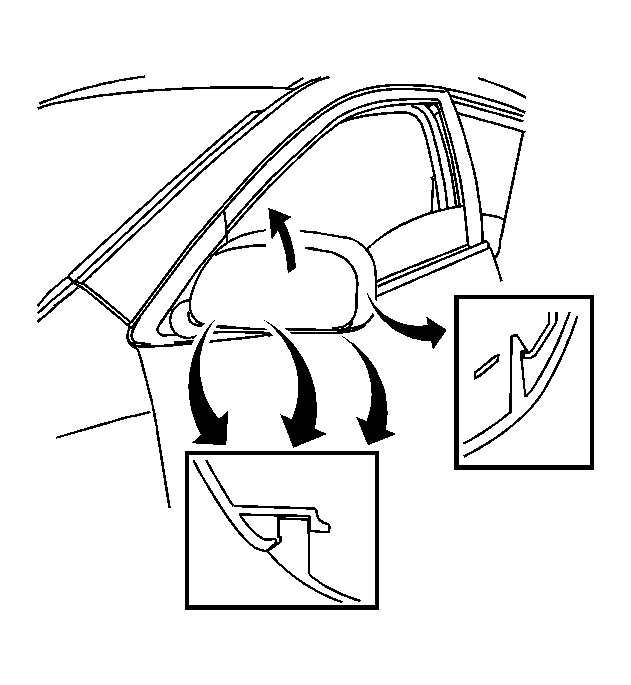

    6. Fig 2: Removing Outer Mirror Cover
    GM2015637Courtesy of GENERAL MOTORS CORP.
  6. Disengage the four clips and remove the outer mirror cover.

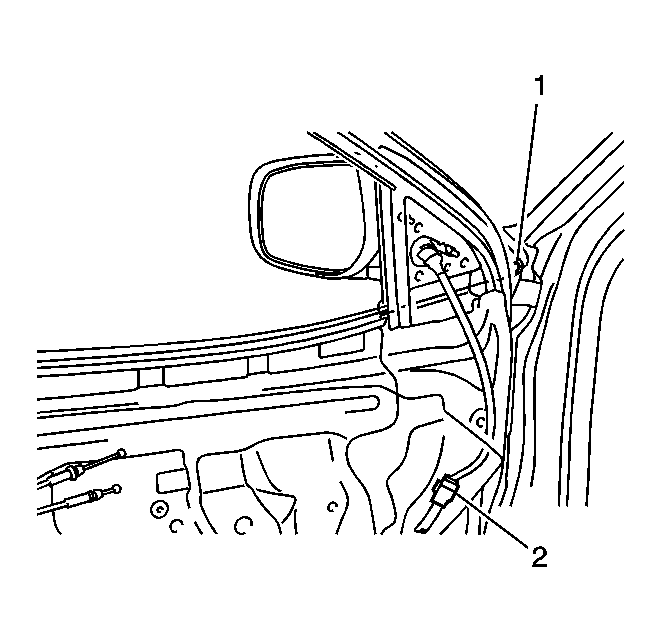

    7. Fig 3: Identifying Clip & Electrical Connector
    GM2014665Courtesy of GENERAL MOTORS CORP.
  7. Disengage the clip (1).
  8. Disconnect the electrical connector (2).

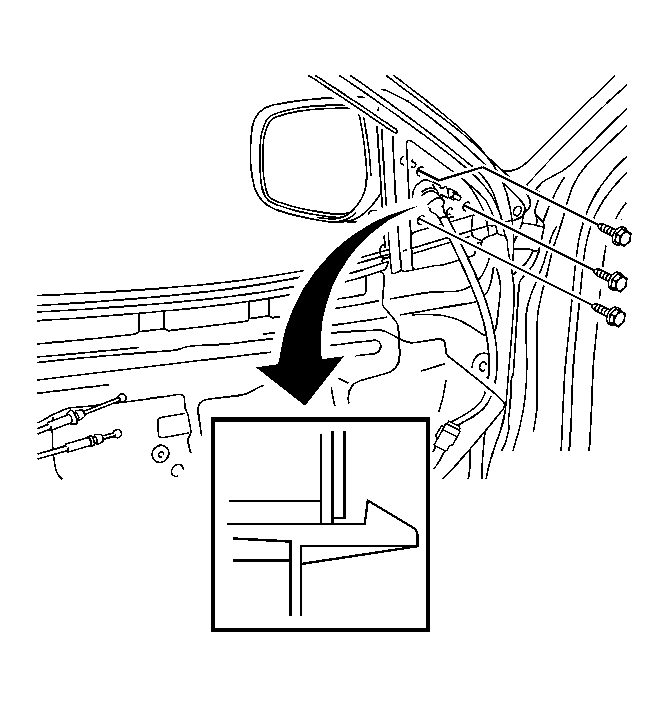

    9. Fig 4: Removing/Installing Outer Mirror Screws
    GM2014668Courtesy of GENERAL MOTORS CORP.
  9. Remove the three screws.
  10. Disengage the clip and remove the outer rear view mirror.
