Installation Procedure

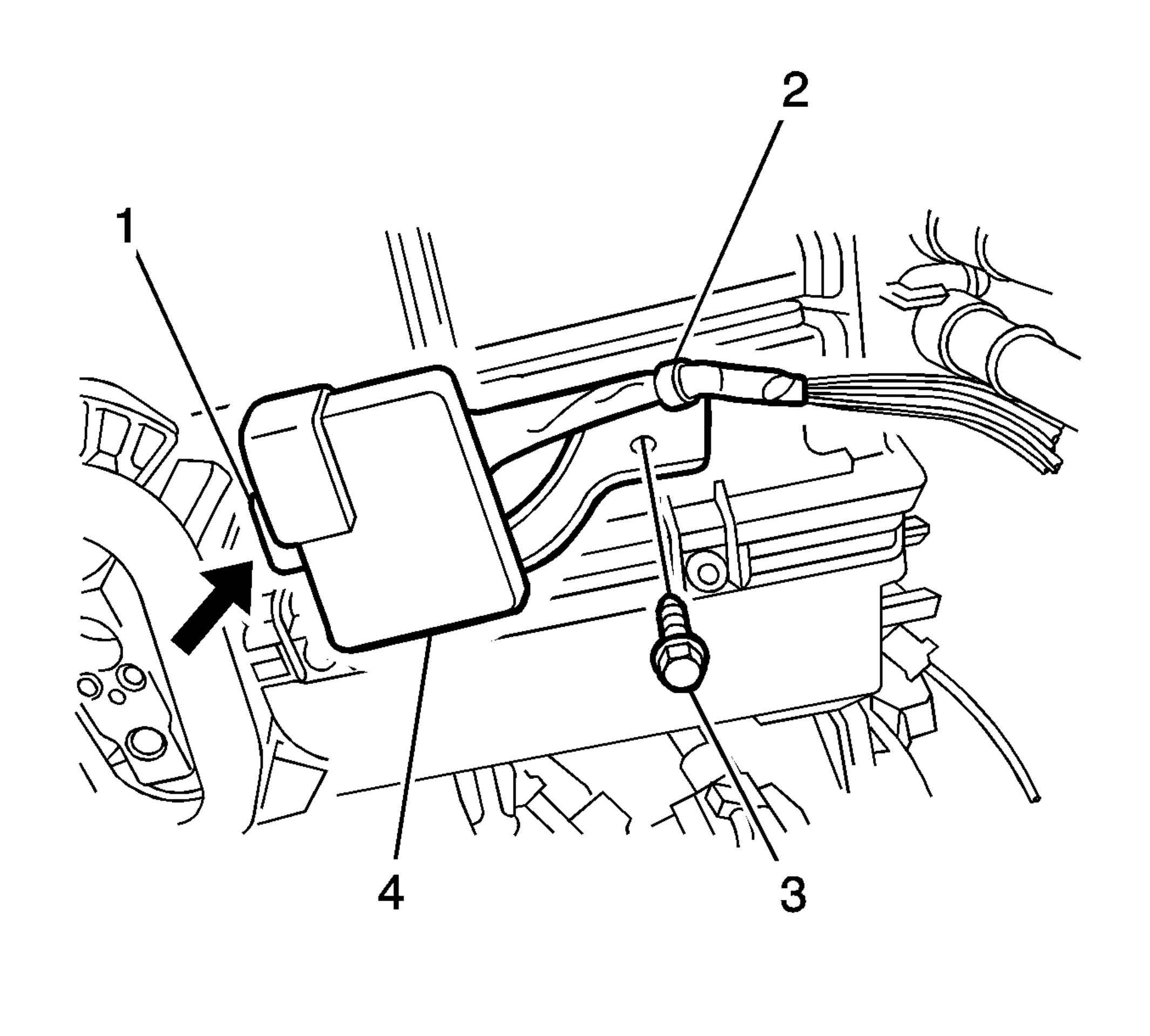

    Fig 1: Theft Deterrent Exciter Module Components
    GM2225816Courtesy of GENERAL MOTORS CORP.
  1. Install the Theft Deterrent Exciter Module (4).
    • Install the bolt (3).
    • Connect the wire harness fastener (2).
    • Connect the module connector (1).

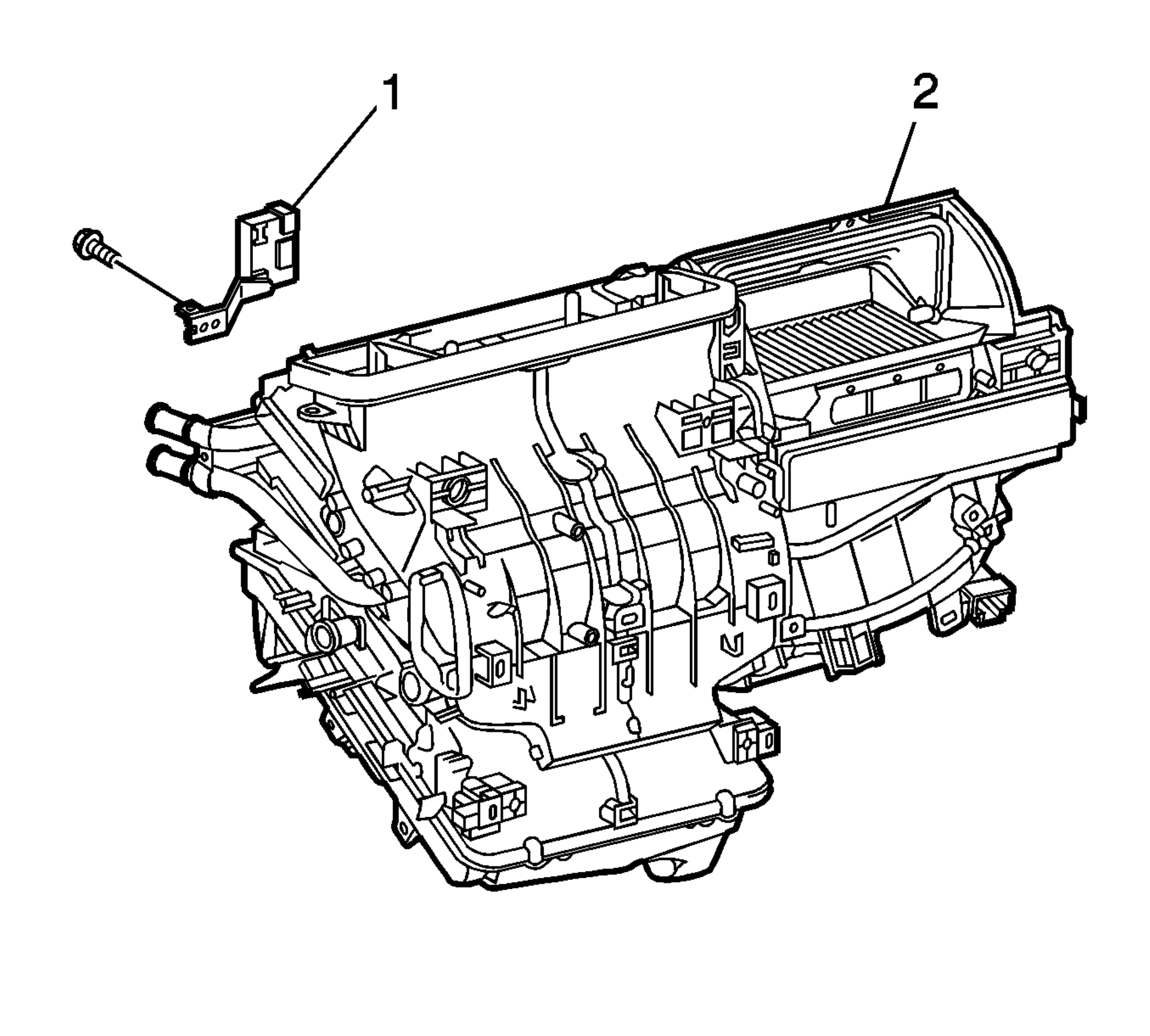

    2. Fig 2: HVAC Module & Theft Deterrent Exciter Module
    GM2225811Courtesy of GENERAL MOTORS CORP.
  2. Install the HVAC Module (2). Refer to Air Conditioning and Heater Module Assembly Replacement .
  3. Install the lower instrument panel. Refer to Instrument Panel Lower Trim Panel Replacement .
  4. Install the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Pad Replacement .
  5. Perform the Key Learn Procedure. Refer to Immobilizer System Component Programming .
