Moveable Window Schematics
Moveable Window Schematics

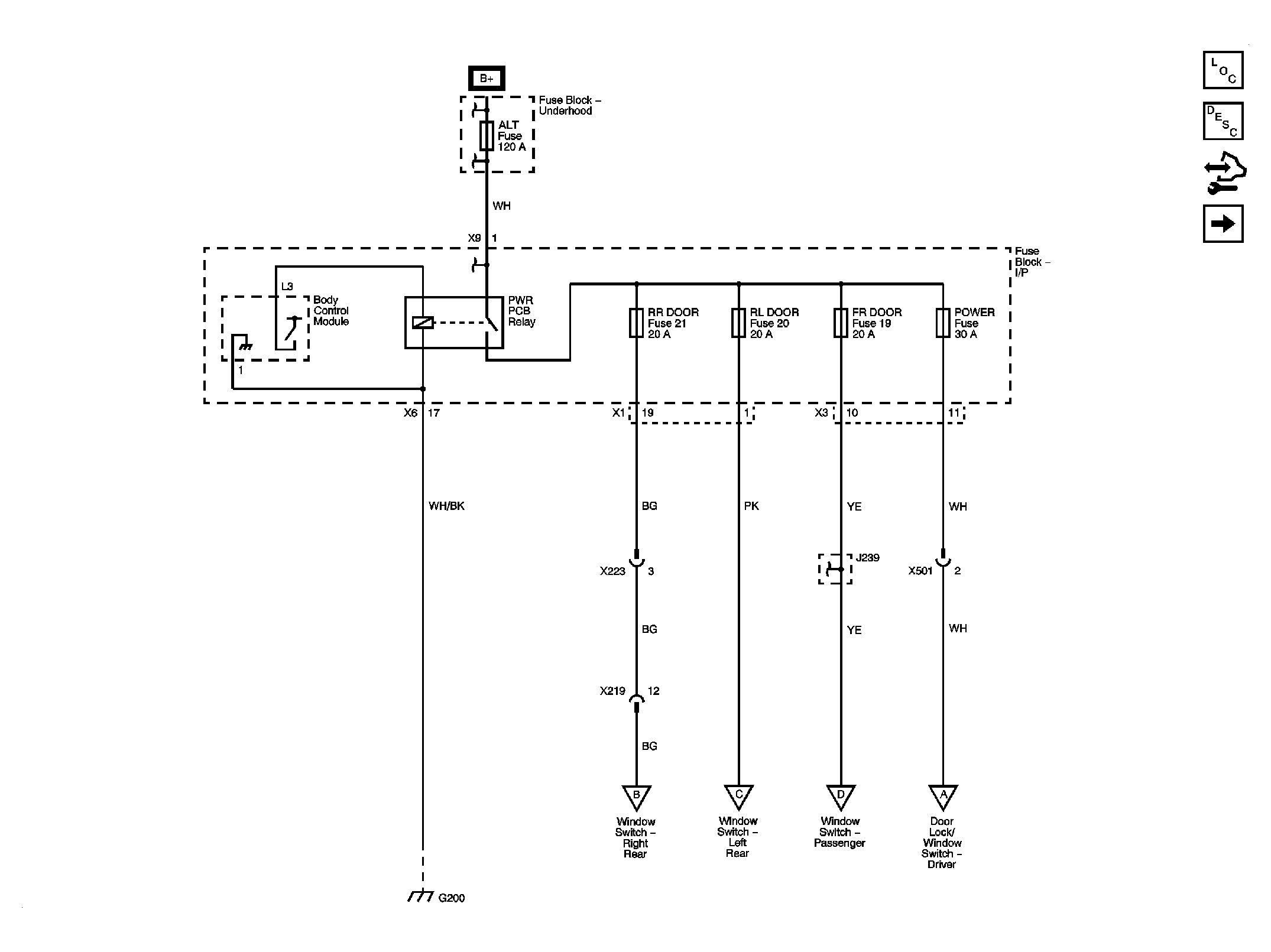

Fig 1: Power Window Relay, Power & Ground
Courtesy of GENERAL MOTORS CORP.

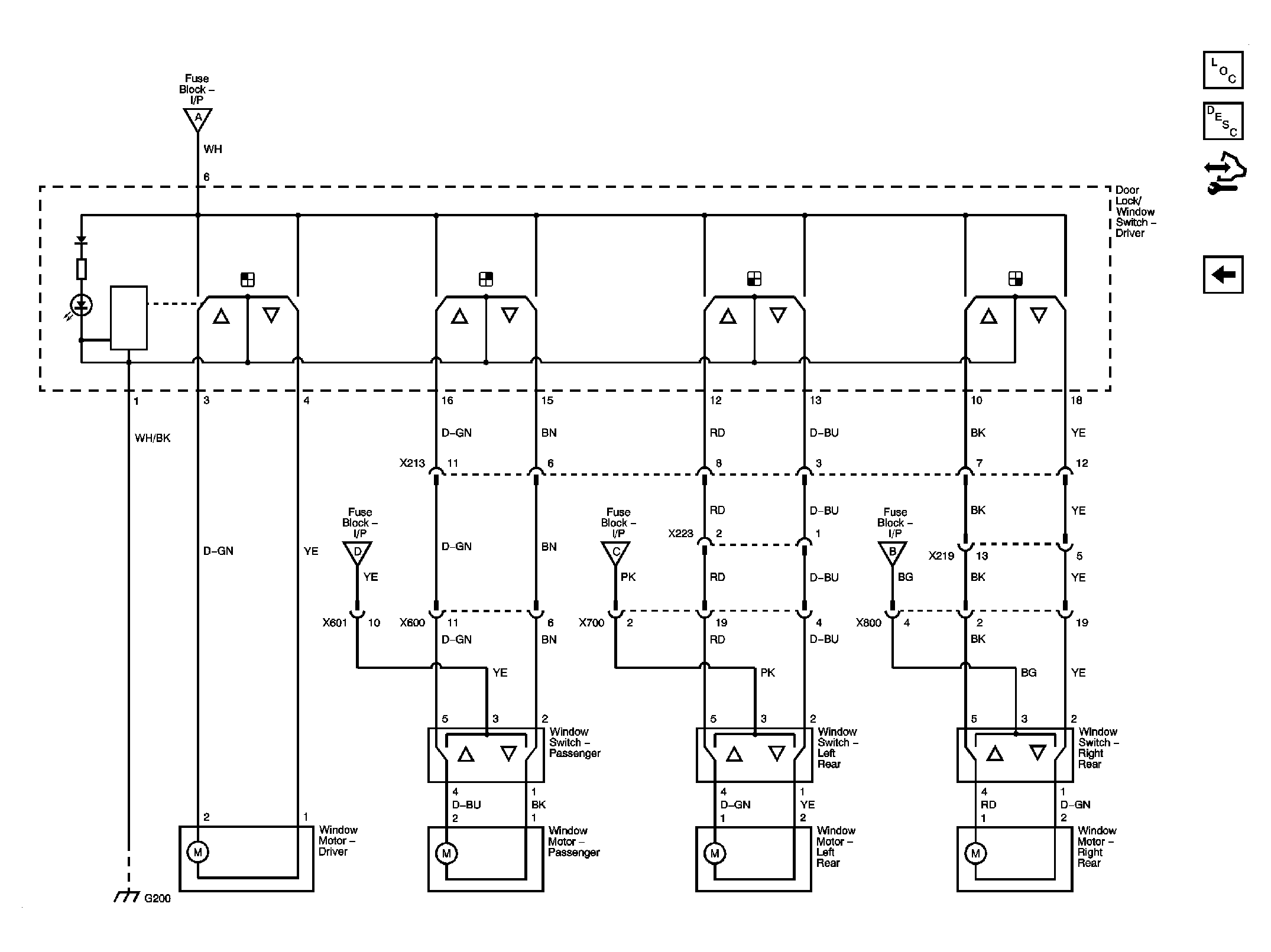

Fig 2: Power Window Switches & Motors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
