Installation Procedure

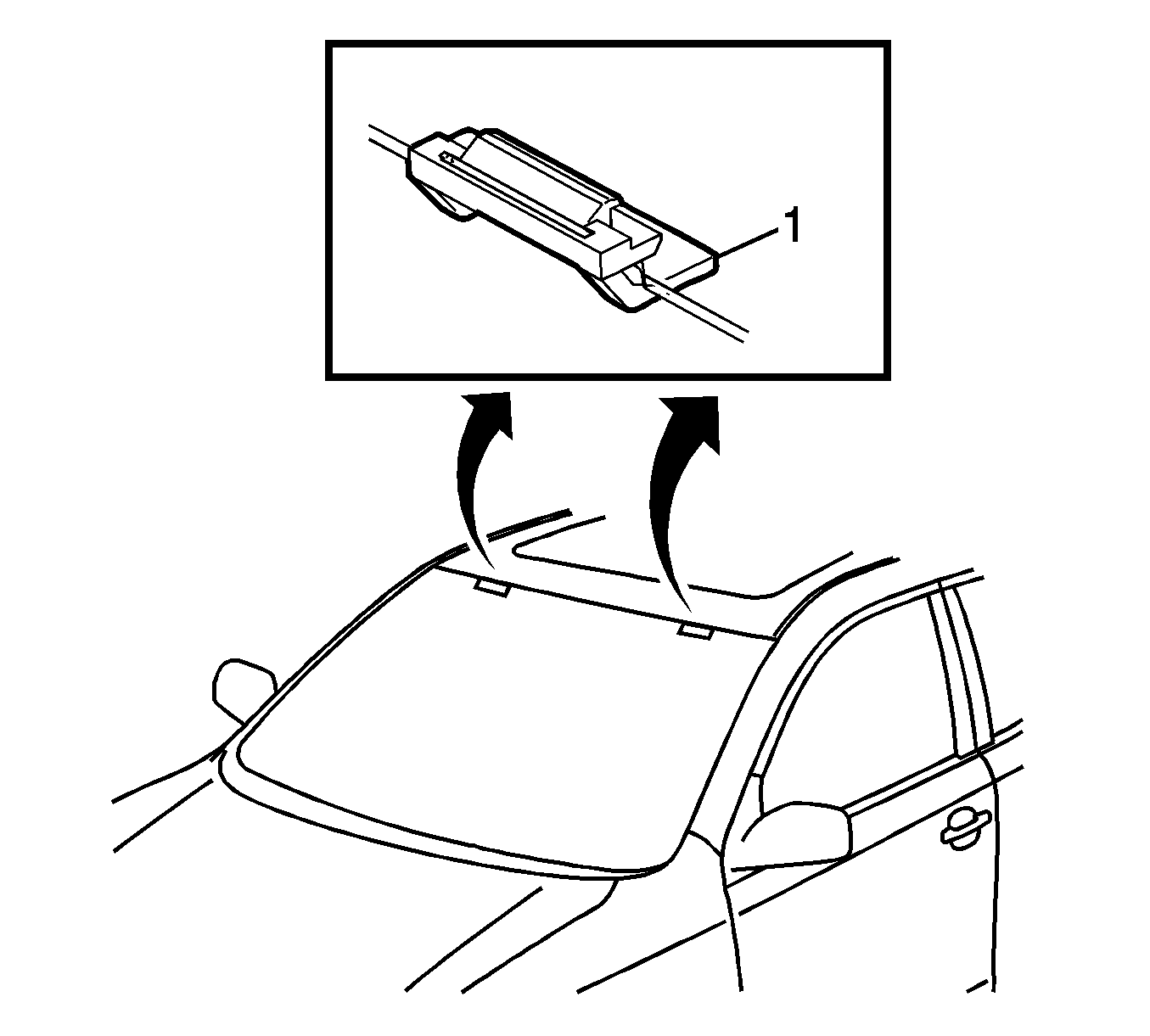

    Fig 1: View Of Two Piece Windshield Glass Stopper
    GM2015322Courtesy of GENERAL MOTORS CORP.
  1. Replace the two piece windshield glass stopper (1), if equipped.
    2. Fig 2: View Of One Piece Windshield Glass Stopper
    GM2015321Courtesy of GENERAL MOTORS CORP.
  2. Replace the one piece windshield glass stopper (1), if equipped.
    3. Fig 3: Identifying Windshield Glass Adhesive Dam
    GM2015320Courtesy of GENERAL MOTORS CORP.
  3. Replace the windshield glass adhesive dam (1).
  4. Install a stationary window into the opening. Refer to Adhesive Installation of Stationary Windows .
    5. Fig 4: Windshield Side Garnish Molding
    GM241992Courtesy of GENERAL MOTORS CORP.
  5. Install the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
  6. Install the windshield wiper arms. Refer to Windshield Wiper Arm Replacement .
  7. Close the hood.
  8. Install the rearview mirror. Refer to Inside Rearview Mirror Replacement .
  9. Install the windshield side garnish moldings (1). Refer to Windshield Pillar Garnish Molding Replacement (Without Roof Side Rail Restraint) or Windshield Pillar Garnish Molding Replacement (With Roof Side Rail Restraint) .
  10. Remove the double layer of masking tape from around the perimeter of the painted surfaces and the interior trim.
  11. Close the door.
