Installation Procedure

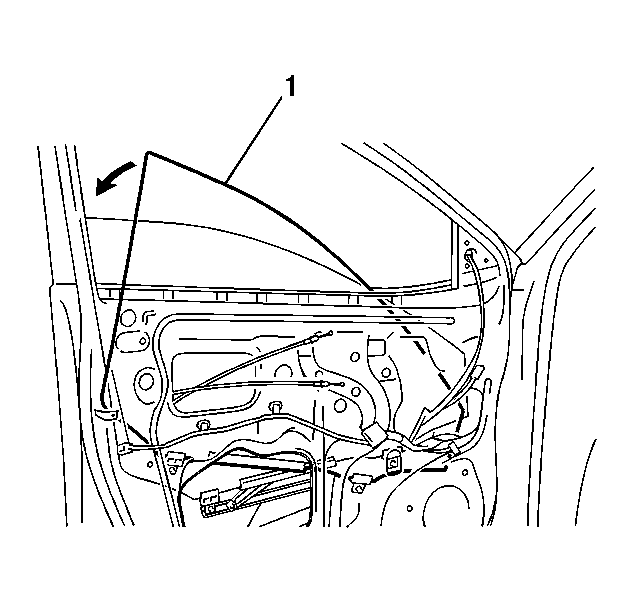

Fig 1: Installing Front Side Door Window

Courtesy of GENERAL MOTORS CORP.

NOTE: Before installing the window into the door, check to see that the bottom channels are securely attached to the window. If a channel is loose, note the location of the channel on the window and then remove the channel from the window. Clean all remaining adhesive from the channel. Apply a bead of Automix Channel Bonding and Sidelite Adhesive, 3M P/N 08641, or equivalent, to the channel and install the channel onto the window. Refer to adhesive manufacturer's instructions for cure time.

Insert the front door glass (1) into the front door along the door glass run channel.

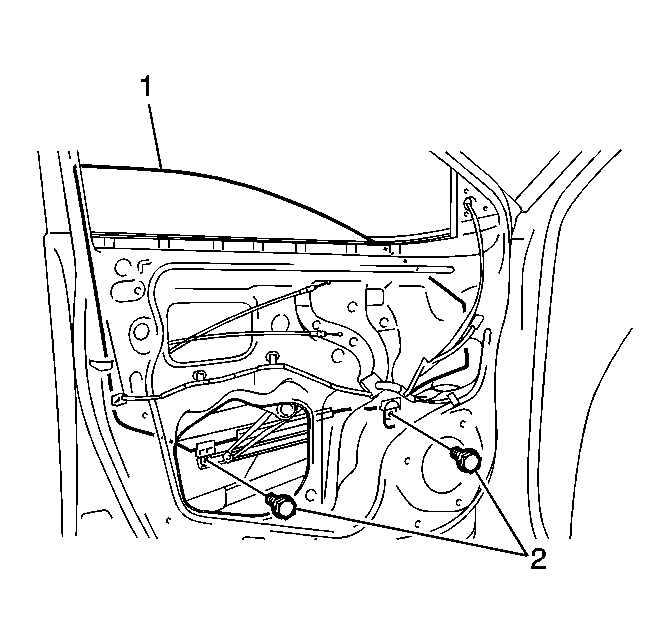

Fig 2: Repositioning Window To Access Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Reposition the window (1) and install the bolts (2). Tighten the window-to-regulator bolts to 8 N.m (71 lb in).
Install the front side door water deflector. Refer to Front Side Door Water Deflector Replacement .
