Installation Procedure

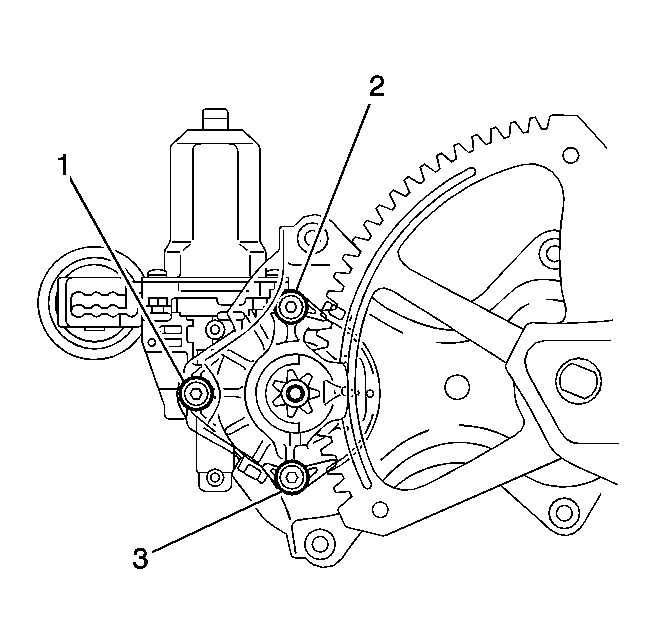

    Fig 1: Front Power Window Motor Assembly Screws & Power Window Regulator
    GM2015300Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the three screws (1), (2), (3) and the front power window motor assembly to the power window regulator, if removed. Tighten the power window motor screws to 5.4 N.m (48 lb in).

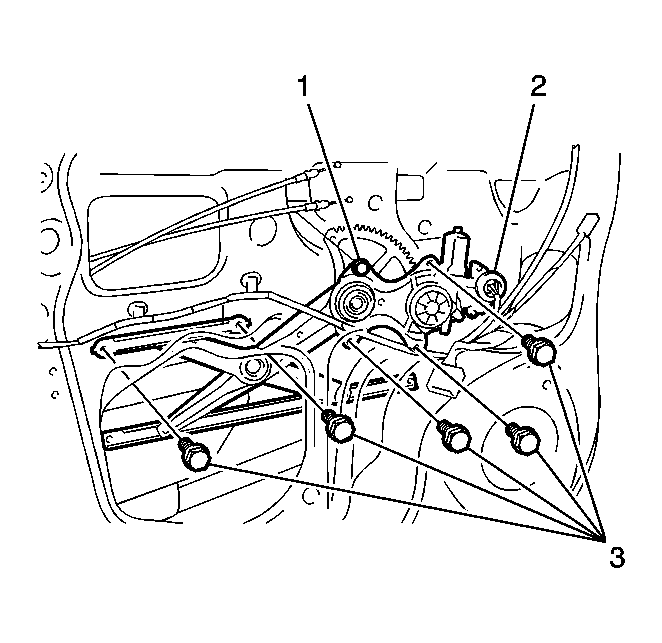

    2. Fig 2: Identifying Front Door Window Regulator Electrical Connector & Bolts
    GM2014680Courtesy of GENERAL MOTORS CORP.
  2. Install the temporary bolt (1) to the power window regulator assembly.
  3. Temporarily install the front door power window regulator assembly.
  4. Install the five bolts (3). Tighten the temporary bolt (1) and the five bolts to 8 N.m (71 lb in).
  5. Connect the electrical connector (2), if equipped with power windows.

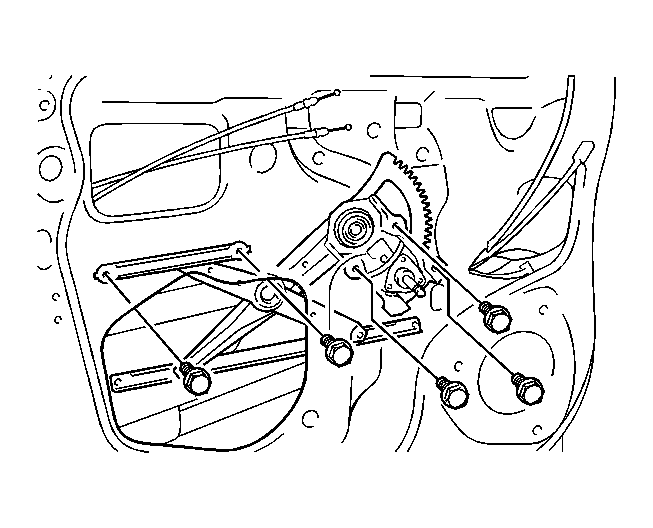

    6. Fig 3: View Of Front Door Window Regulator Bolts
    GM2014678Courtesy of GENERAL MOTORS CORP.
  6. Install the five bolts and the front door window regulator, if equipped without power windows. Tighten the five bolts to 8 N.m (71 lb in).
  7. Install the front door window. Refer to Front Side Door Window Replacement .
