Installation Procedure

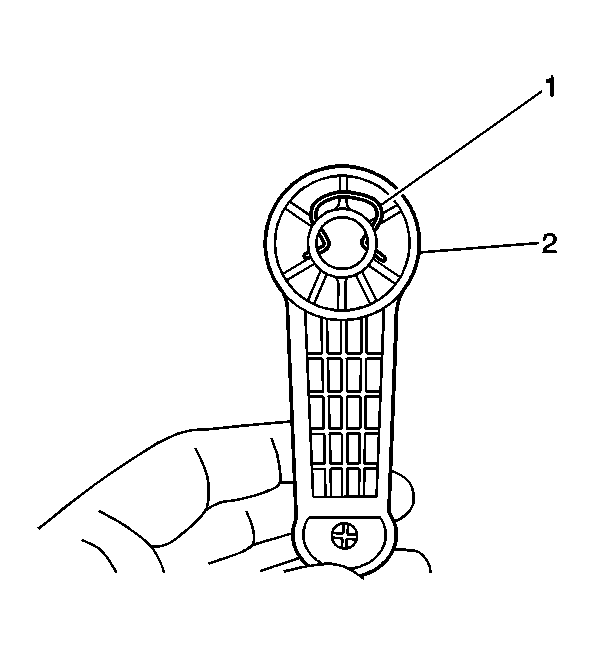

    Fig 1: Installing Window Regulator Snap Ring
    GM471216Courtesy of GENERAL MOTORS CORP.
  1. Install the snap ring (1) to the door window regulator handle (2).
  2. Install the door window regulator handle (2) to the door.
