Removal Procedure

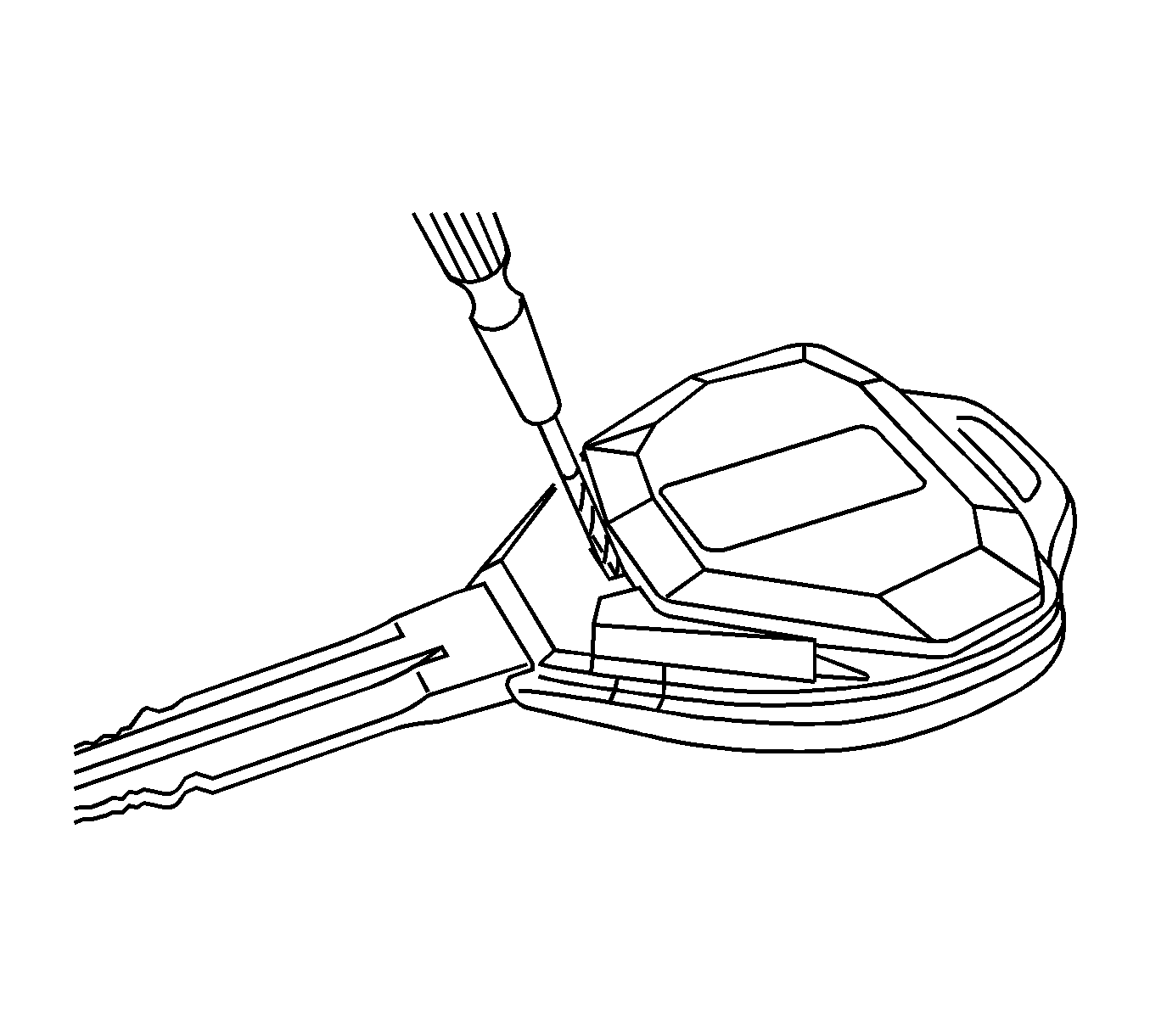

Fig 1: Prying Open Transmitter Housing Cover

Courtesy of GENERAL MOTORS CORP.

Using a screwdriver with its tip wrapped in protective tape, pry open the transmitter housing cover.

Fig 2: Removing Door Control Transmitter Module From Transmitter Housing Case

Courtesy of GENERAL MOTORS CORP.

Using a screwdriver with its tip wrapped in protective tape, remove the door control transmitter module from the transmitter housing case.

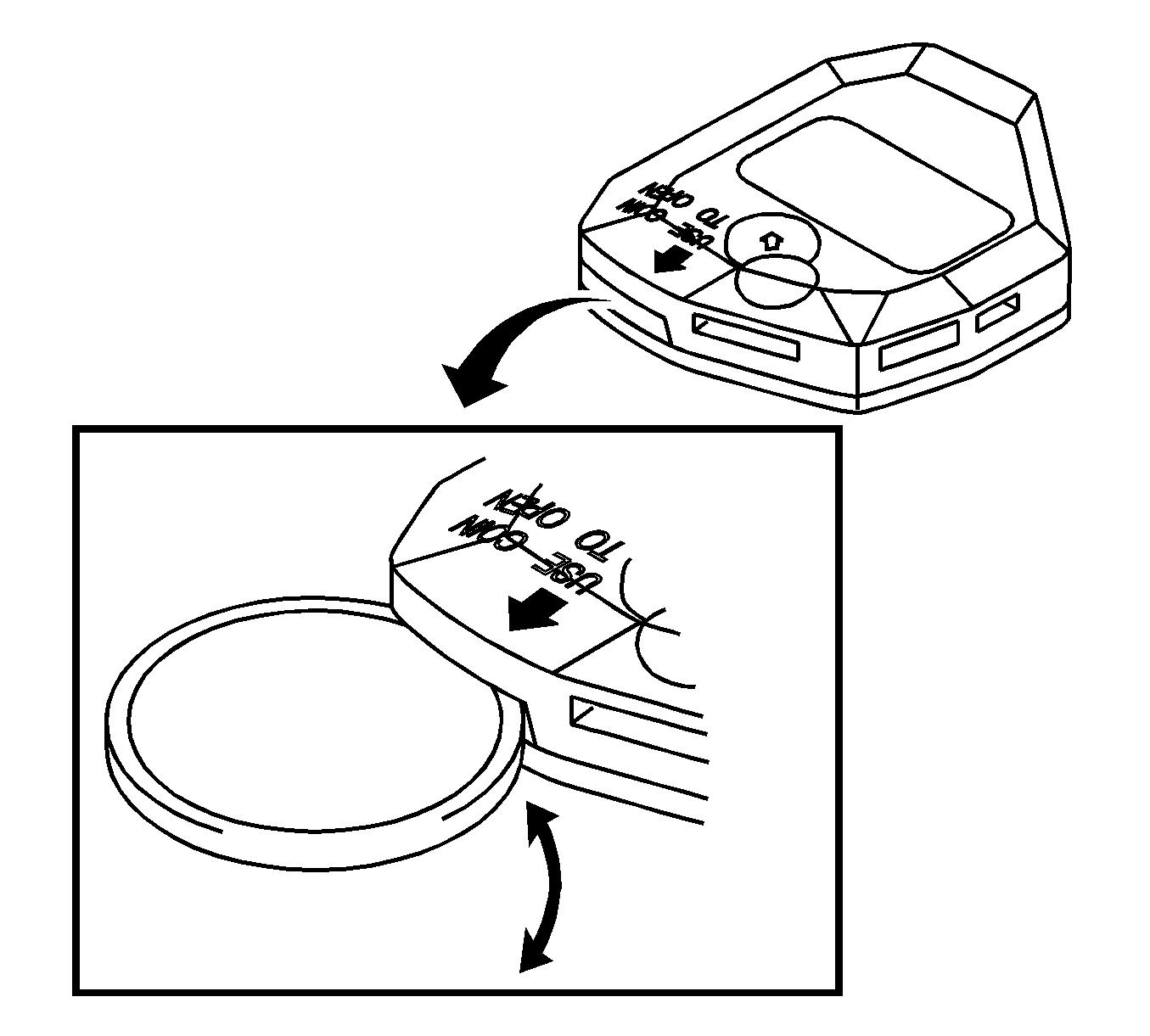

Fig 3: Removing Transmitter Battery Cover

Courtesy of GENERAL MOTORS CORP.

Twist the coin in the direction of the arrow and remove the transmitter battery cover.

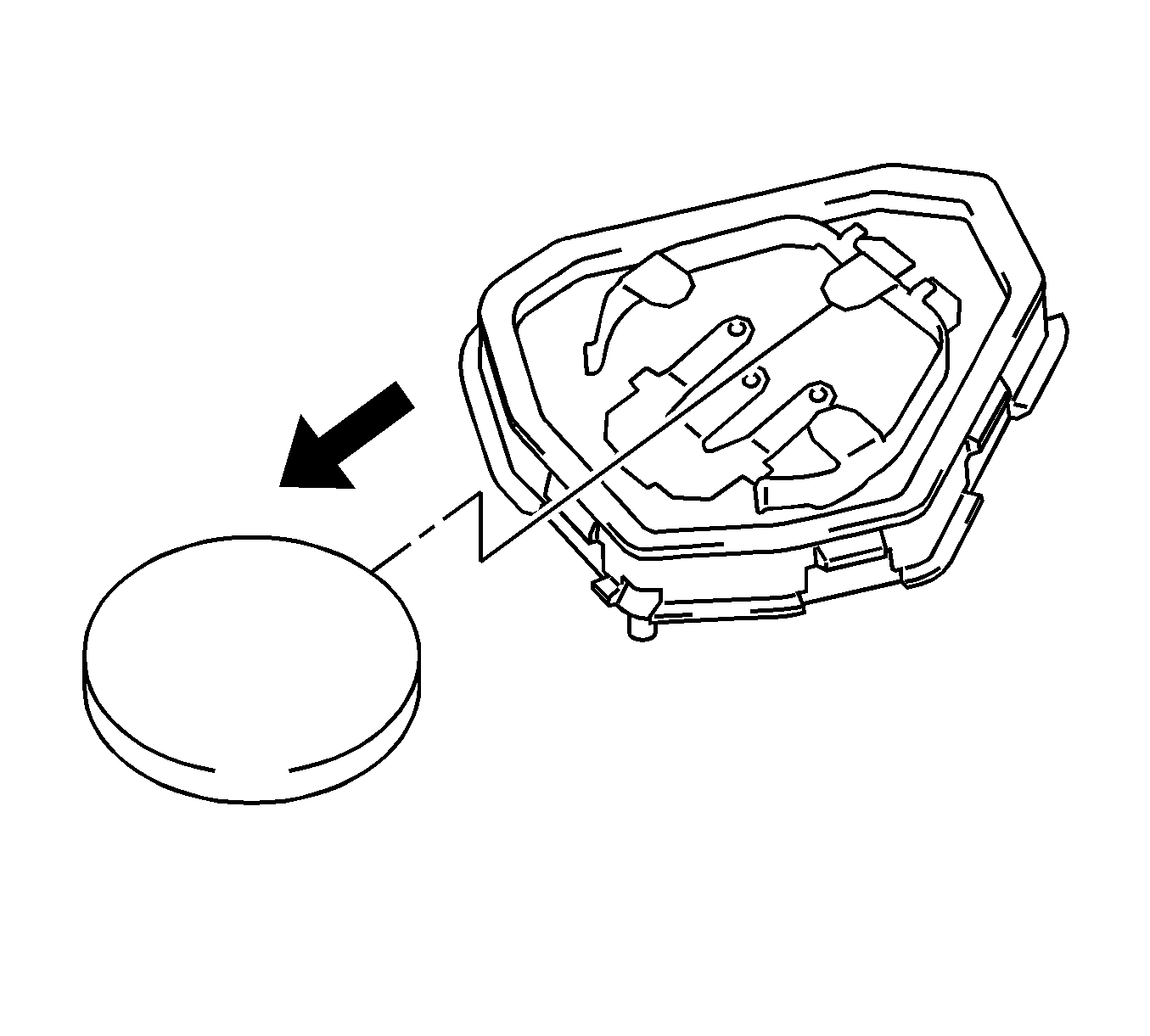

Fig 4: Removing Transmitter Battery

Courtesy of GENERAL MOTORS CORP.
