Installation Procedure

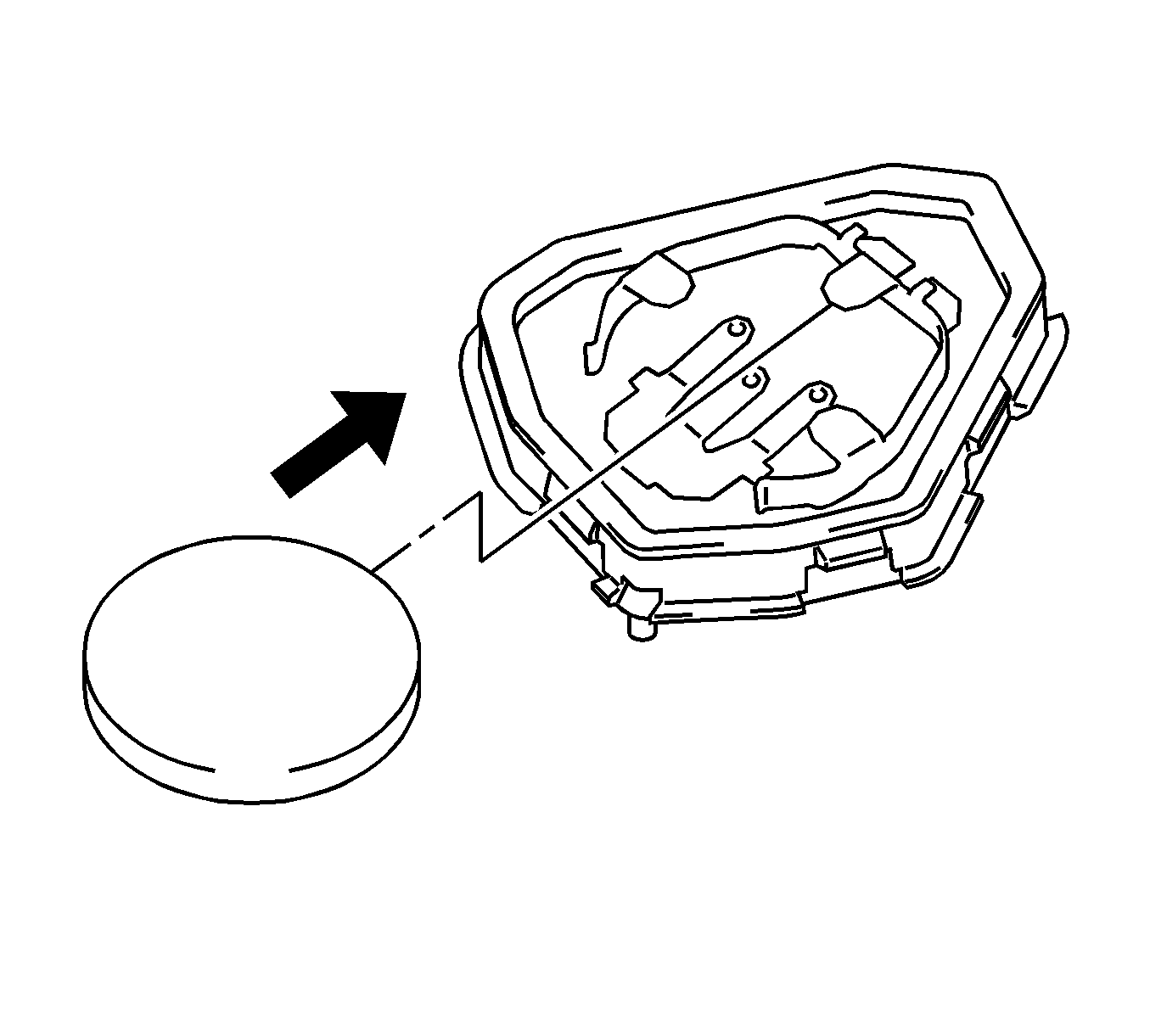

    Fig 1: Installing Transmitter Battery
    GM2045781Courtesy of GENERAL MOTORS CORP.
  1. Install a battery (lithium battery: CR2025) with the positive (+) side facing upward.

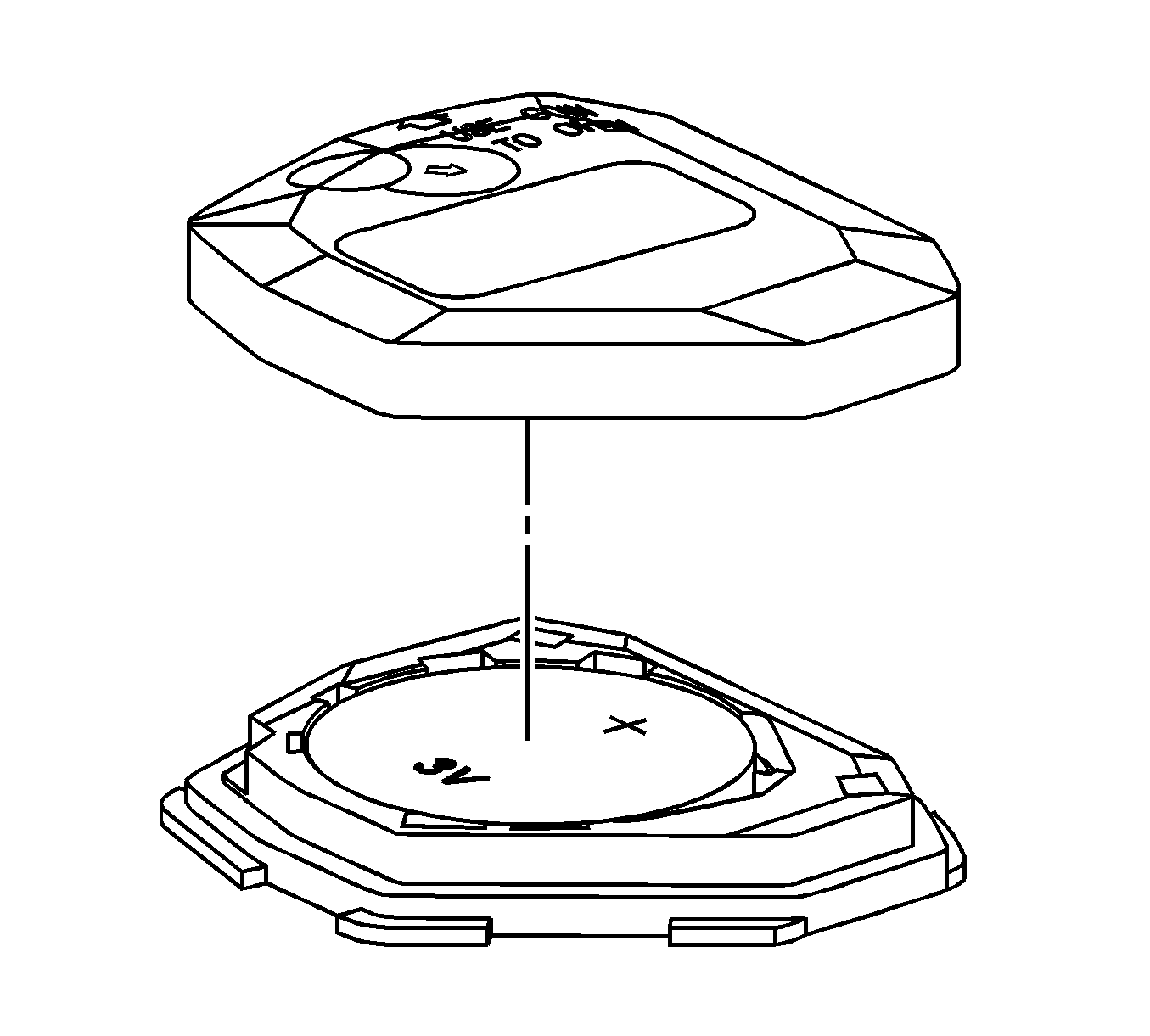

    2. Fig 2: Installing Cover
    GM2045782Courtesy of GENERAL MOTORS CORP.
  2. Install the cover.

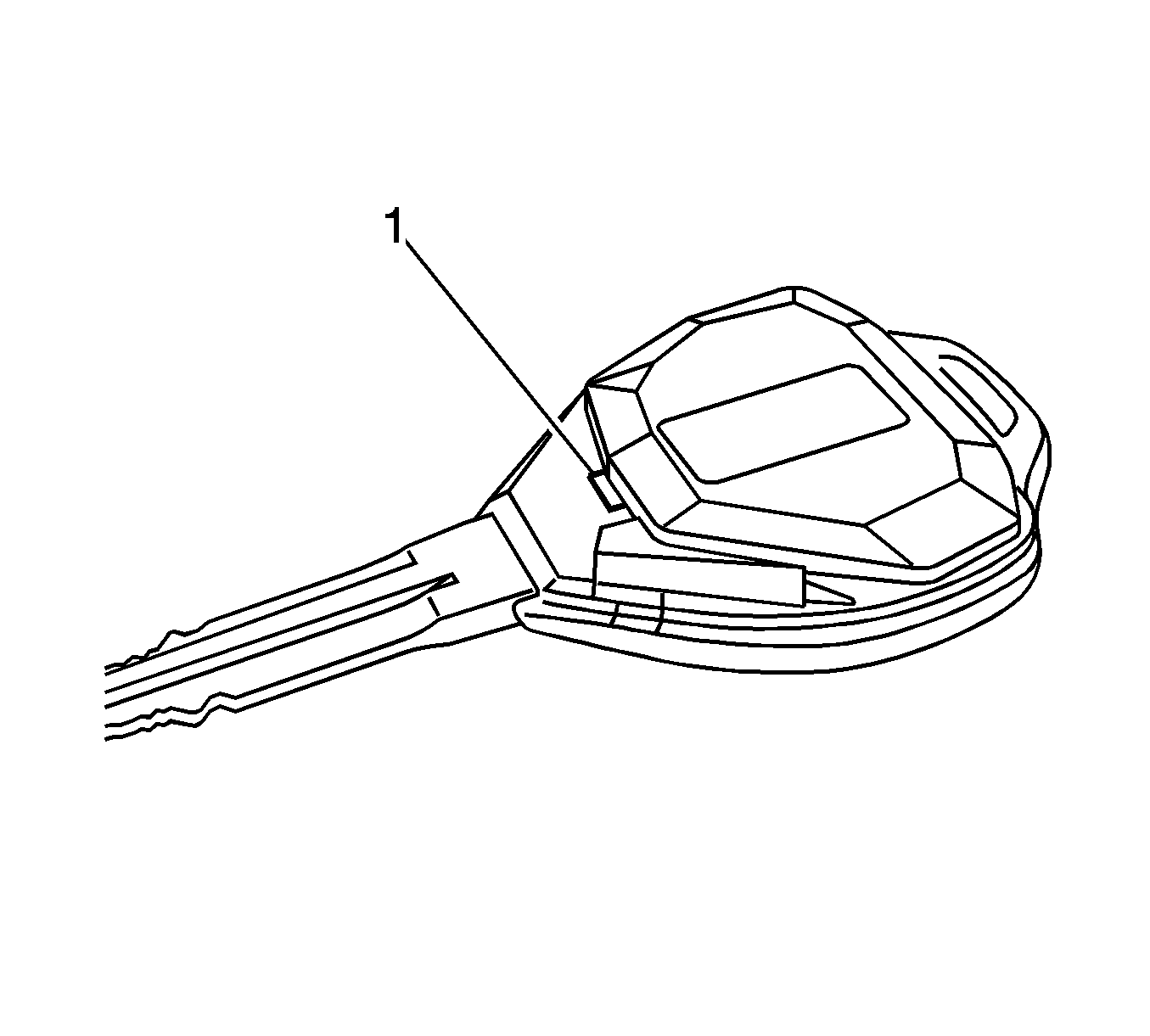

    3. Fig 3: Installing Door Control Transmitter Module
    GM2045783Courtesy of GENERAL MOTORS CORP.
  3. Install the door control transmitter module into the transmitter housing case.
    4. Fig 4: Installing Transmitter Housing Cover
    GM2045784Courtesy of GENERAL MOTORS CORP.
  4. Install the transmitter housing cover to the transmitter housing case.
  5. Check that the transmitter LED illuminates when the switch is pressed.
