Removal Procedure

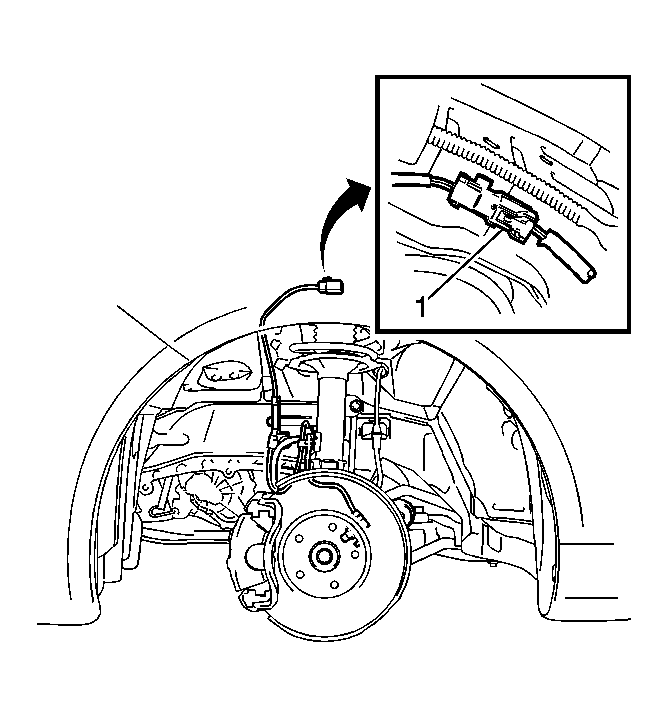

    Fig 1: Exploded View Of Front Wheel Speed Sensor
    GM2022959Courtesy of GENERAL MOTORS CORP.
    NOTE: The wheel speed sensor is serviceable only as an assembly. Do NOT attempt to service the sensor harness pigtail.
  1. Remove the wheelhousing. Refer to Wheelhouse Panel Replacement .
  2. Disconnect the wheel speed sensor electrical connector (1).
    3. Fig 2: Identifying Wheel Speed Sensor Pigtail Harness Bolt
    GM2022961Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolt (1) retaining the wheel speed sensor pigtail harness.
    4. Fig 3: Exploded View Of Brake Hose Bolt
    GM2022968Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolt (1) and separate the brake hose.
    5. Fig 4: Identifying Front Wheel Speed Sensor Clamp Bolt
    GM2022972Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolt (1) and the sensor clamp from the strut.
    6. Fig 5: Exploded View Of Sensor Harness Clamp
    GM2022977Courtesy of GENERAL MOTORS CORP.
  6. Remove the sensor harness clamp (1).
    7. Fig 6: Exploded View Of Wheel Speed Sensor Retaining Bolt & Wheel Speed Sensor
    GM2022981Courtesy of GENERAL MOTORS CORP.
  7. Remove the wheel speed sensor retaining bolt (1) and remove the wheel speed sensor (2) from the steering knuckle.
