Installation Procedure

    Fig 1: Identifying Brake Pressure Modulator Assembly Bolts & Bracket
    GM2022958Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the brake pressure modulator assembly to the bracket. Secure with the 3 bolts.

    Tighten:  Tighten the brake modulator assembly nuts to 5 N.m (48 lb in).

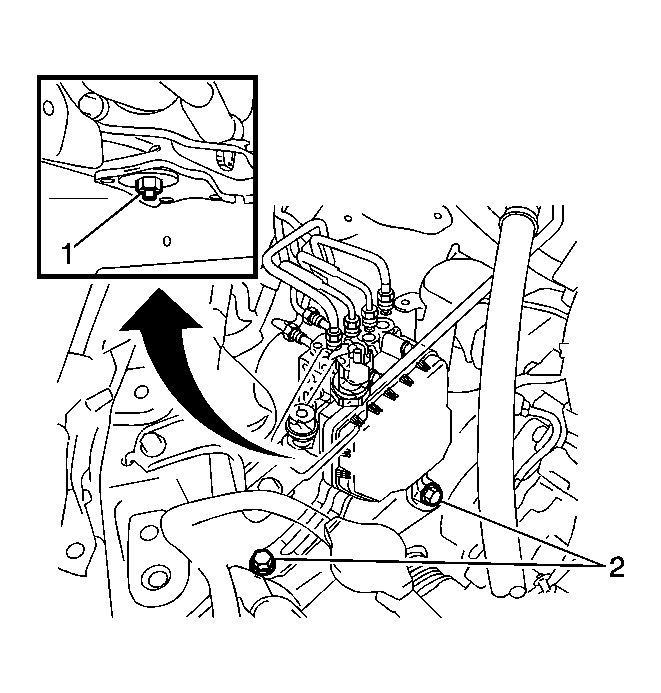

    2. Fig 2: Identifying Brake Pressure Modulator Bracket & Bolts
    GM2022957Courtesy of GENERAL MOTORS CORP.
  2. Install the 2 bolts (2) to the brake pressure modulator bracket (3).

    Tighten:  Tighten the brake modulator bracket bolts to 19 N.m (14 lb ft).

  3. Install the brake pressure modulator assembly and bracket. Secure with the nut (1).

    Tighten:  Tighten the brake modulator bracket nut to 19 N.m (14 lb ft).

    4. Fig 3: Identifying Brake Pipes
    GM2022956Courtesy of GENERAL MOTORS CORP.
  4. Remove the plugs from the brake pipes and connect the brake pipes to the brake modulator assembly (1).

    Tighten:  Tighten the brake pipe fittings nuts to 15 N.m (11 lb ft).

    5. Fig 4: Identifying Brake Line Clamp Bolt & Clamp
    GM2022954Courtesy of GENERAL MOTORS CORP.
  5. Install the brake line clamp (2) and secure with bolt (1).

    Tighten:  Tighten the brake line clamp bolt to 5 N.m (48 lb in).

    6. Fig 5: Identifying Electronic Brake Control Module (EBCM) Harness Connector Lock Lever & EBCM Harness Connector
    GM2022950Courtesy of GENERAL MOTORS CORP.
  6. Connect the EBCM electrical connector (2).
  7. Secure the EBCM electrical connector lock lever (1).
  8. Install the washer reservoir. Refer to Windshield Washer Solvent Container Replacement .
  9. Install the coolant surge tank. Refer to Radiator Surge Tank Replacement .
  10. Install the generator. Refer to Generator Replacement (2.4L) or Generator Replacement (1.8L) .
  11. Install the right engine undercover. Refer to Engine Splash Shield Replacement - Right Side .
  12. Install the right front wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .
  13. Bleed the brake system. Refer to Hydraulic Brake System Bleeding .
  14. Using the scan tool, perform the yaw rate sensor zero point calibration under the special functions menu.
  15. Perform the Diagnostic System Check - Vehicle .
  16. Refer to Control Module References for programming and setup information.
