Installation Procedure

Fig 1: Identifying Adhesive Dam & Liftgate Window

Courtesy of GENERAL MOTORS CORP.

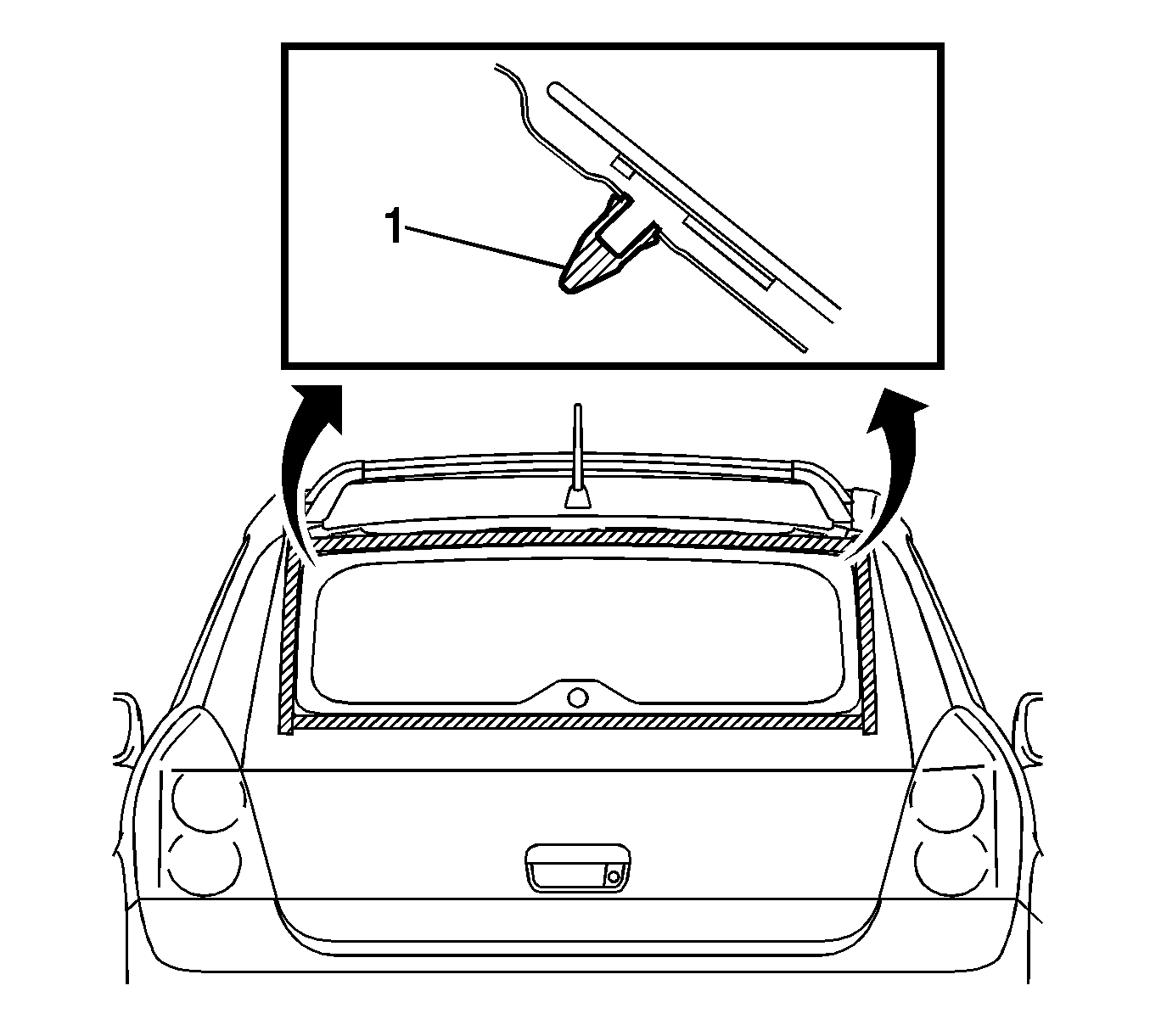

Fig 2: View Of Stationary Window Retainers

Courtesy of GENERAL MOTORS CORP.

Install the stationary window into the opening, making sure the two retainers (1) are engaged. Refer to Adhesive Installation of Stationary Windows .
Use masking tape to hold the liftgate window into position until the urethane adhesive cures.

Fig 3: Identifying Rear Window Defogger Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Reconnect the rear window defogger electrical connector (1).
Install the rear spoiler. Refer to Rear Spoiler Replacement .
Install the wiper motor. Refer to Liftgate Wiper Motor Replacement .
Install the liftgate trim panel. Refer to Liftgate Trim Panel Replacement .
Close the liftgate.
Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
