Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

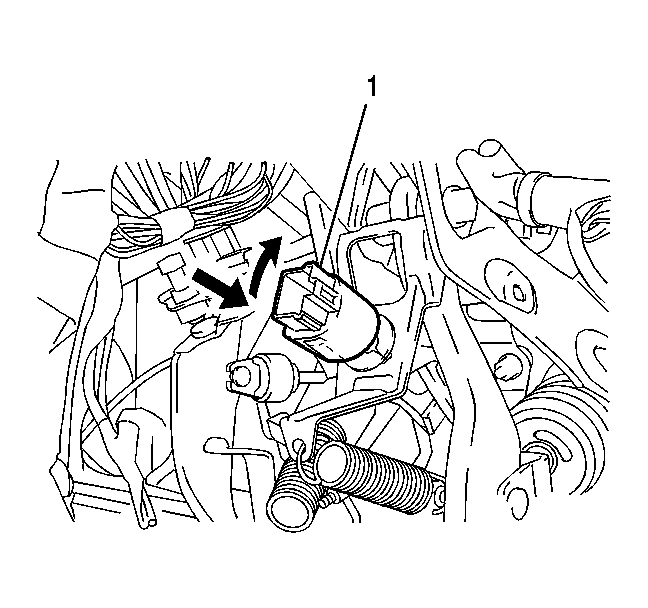

    Fig 1: Turning Stop Lamp Switch Clockwise
    GM2009636Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When inserting the stop lamp switch assembly, support the pedal from behind so that the pedal is not pushed in.
  1. Install the stop lamp switch (1) until the rod hits the cushion.
  2. Make a quarter turn clockwise to install the stop lamp switch assembly.
  3. Adjust the stop lamp clearance. Refer to Stop Lamp Switch Adjustment .

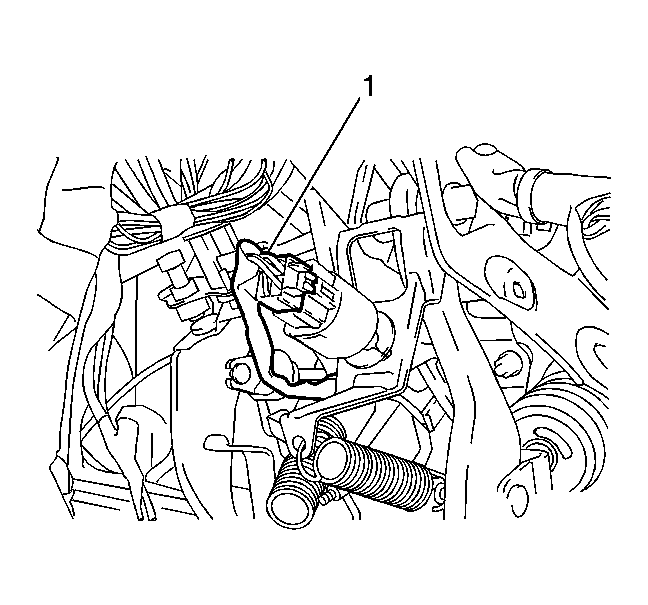

    4. Fig 2: Identifying Stop Lamp Switch Electrical Connector
    GM2009632Courtesy of GENERAL MOTORS CORP.
  4. Connect the stop lamp switch electrical connector (1).
  5. Connect the negative battery cable.
