Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

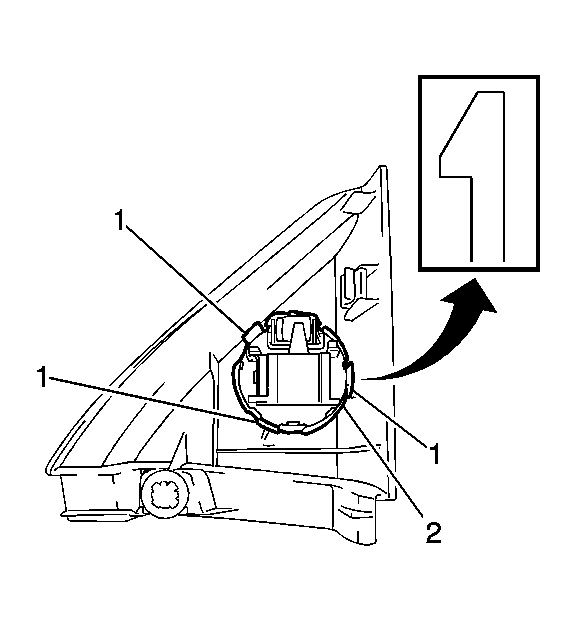

    Fig 1: Identifying Front Upper Speaker
    GM2014976Courtesy of GENERAL MOTORS CORP.
  1. Install the front upper door speaker (2) to the vehicle.
  2. Engage the three retainers (1).
  3. Connect the speaker electrical connector.
  4. Install the front door trim panel applique. Refer to Front Side Door Trim Panel Applique Replacement .
