Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

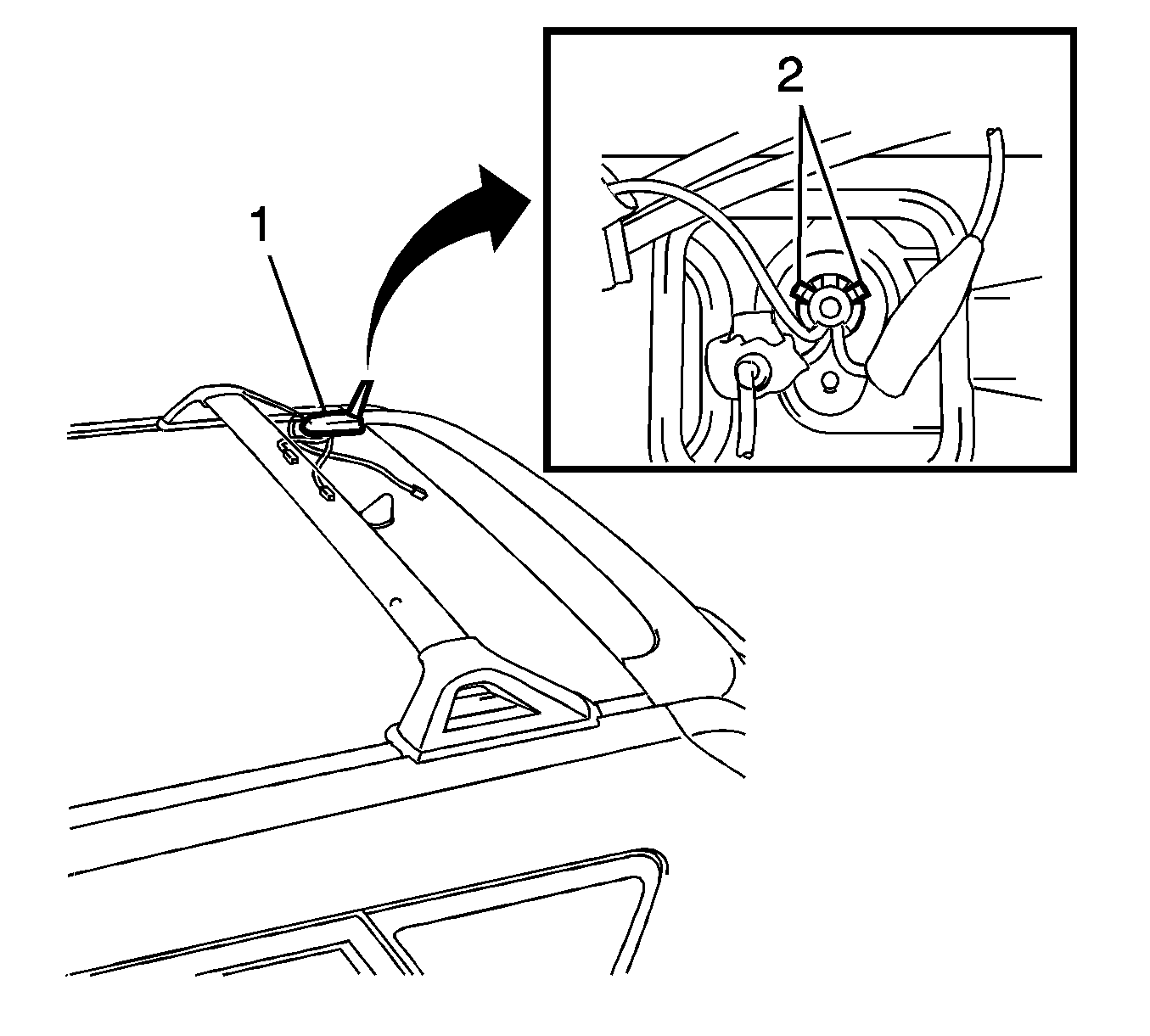

Fig 1: Identifying Antenna Locking Tabs

Courtesy of GENERAL MOTORS CORP.

Engage the antenna locking tabs (2) and install the antenna (1).

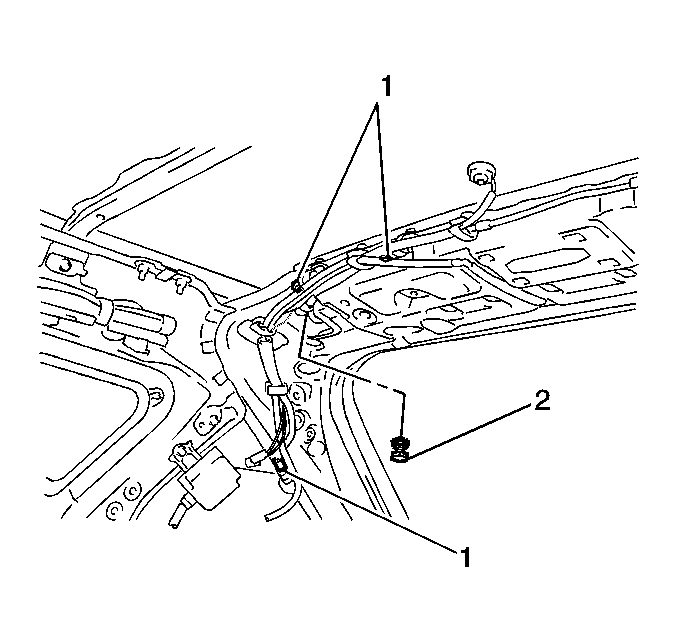

Fig 2: Identifying Cellular & Navigation Antenna Connectors & Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to BATTERY DISCONNECT WARNING .

Install the antenna mounting bolt (2).
Tighten: Tighten the antenna mounting bolt (2) to 9 N.m (80 lb in).
Connect the three antenna connectors (1).
Install the headliner. Refer to Headlining Trim Panel Replacement .
