Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

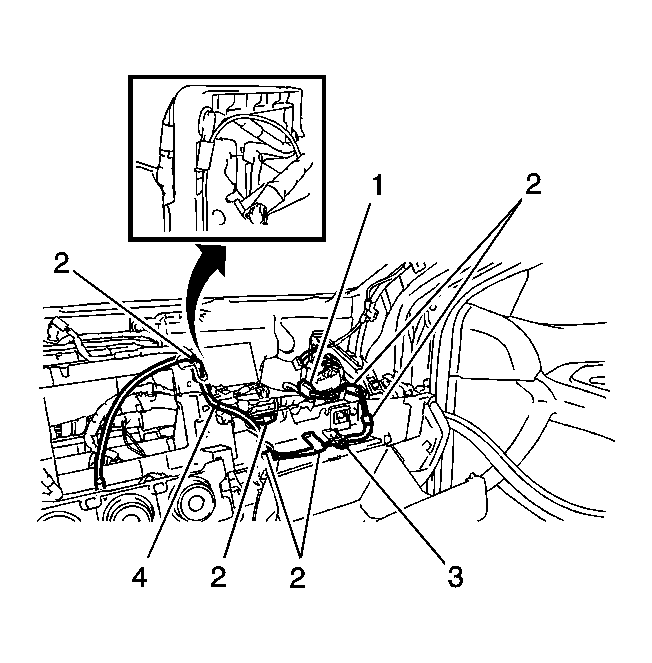

Fig 1: Identifying Antenna Cable Harness & Retainers

Courtesy of GENERAL MOTORS CORP.

Engage the six retainers (2)and install the harness (4).
Install the bolt (3).
Connect the connector (1).
Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement .

Fig 2: Identifying Antenna Cable Connector

Courtesy of GENERAL MOTORS CORP.

Engage the clip (2) and install the connector (1).
Connect the connector (1).
