Data Communication Schematics

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

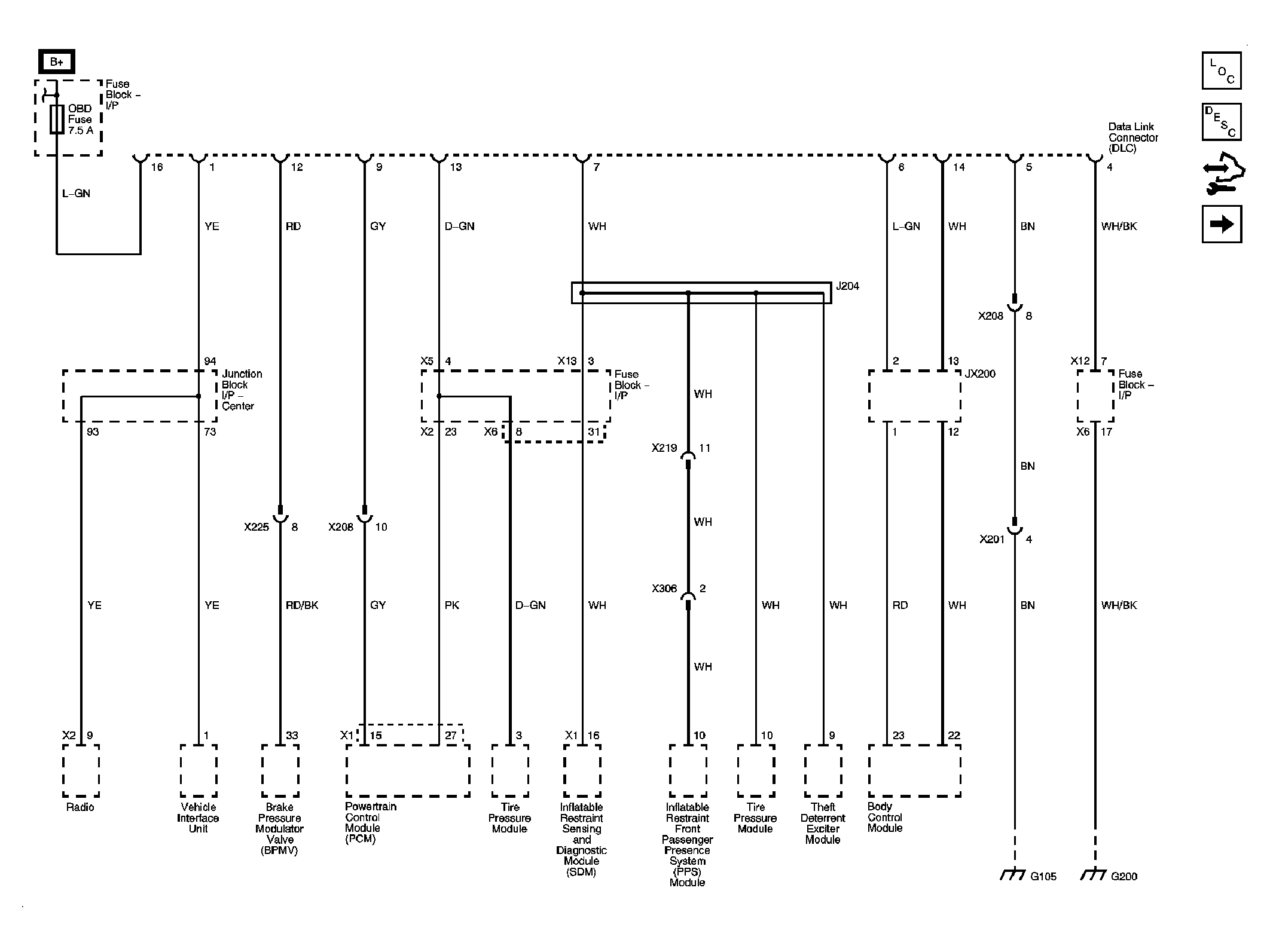

Fig 1: DLC
GM2043944Courtesy of GENERAL MOTORS CORP.

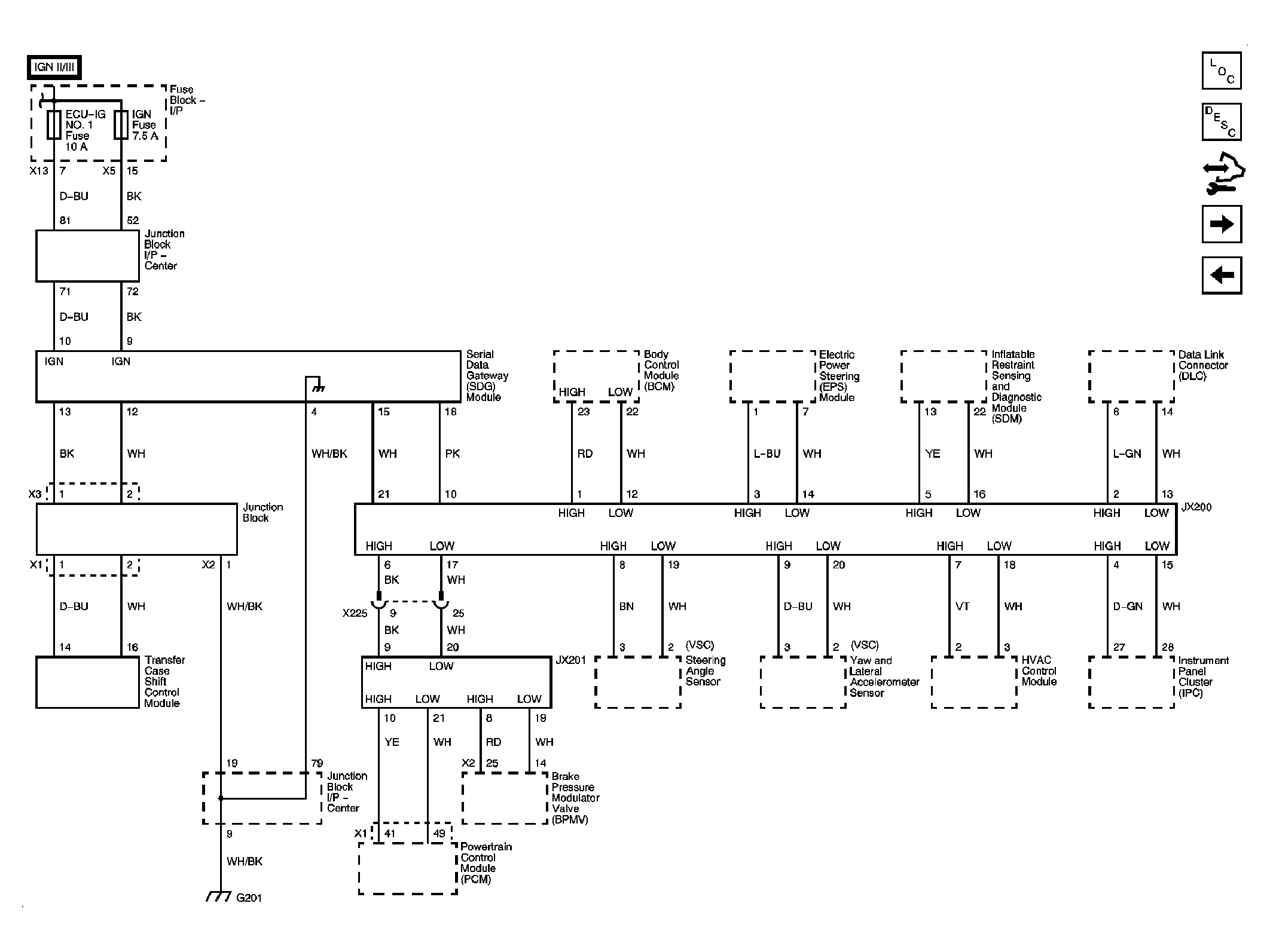

Fig 2: LAN
GM2043946Courtesy of GENERAL MOTORS CORP.
