Antilock Brake System Schematics

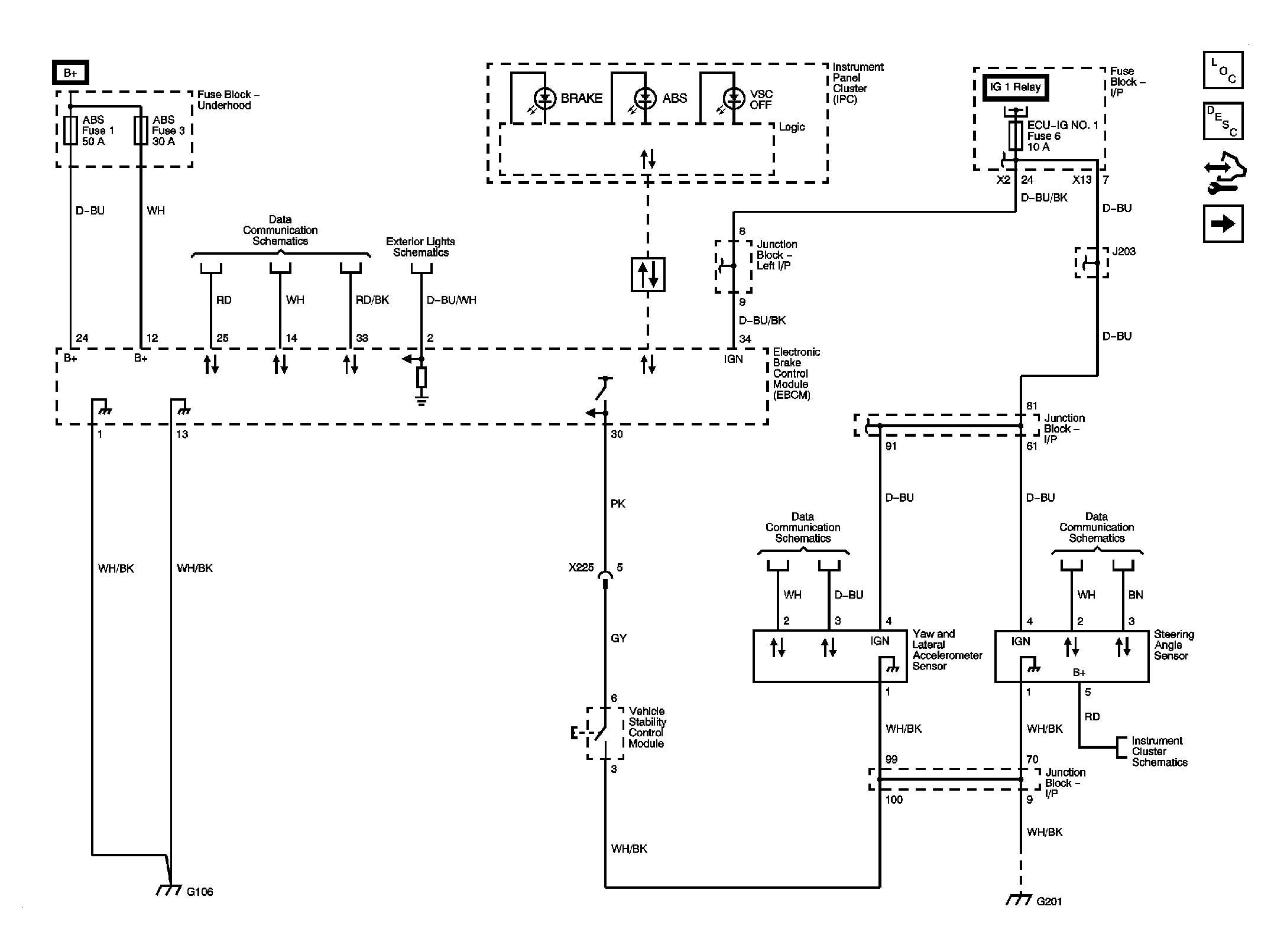

Fig 1: Power, Ground, Indicator/Warning Lamps, Electronic Stability Sensors & Switches
GM2234264Courtesy of GENERAL MOTORS CORP.

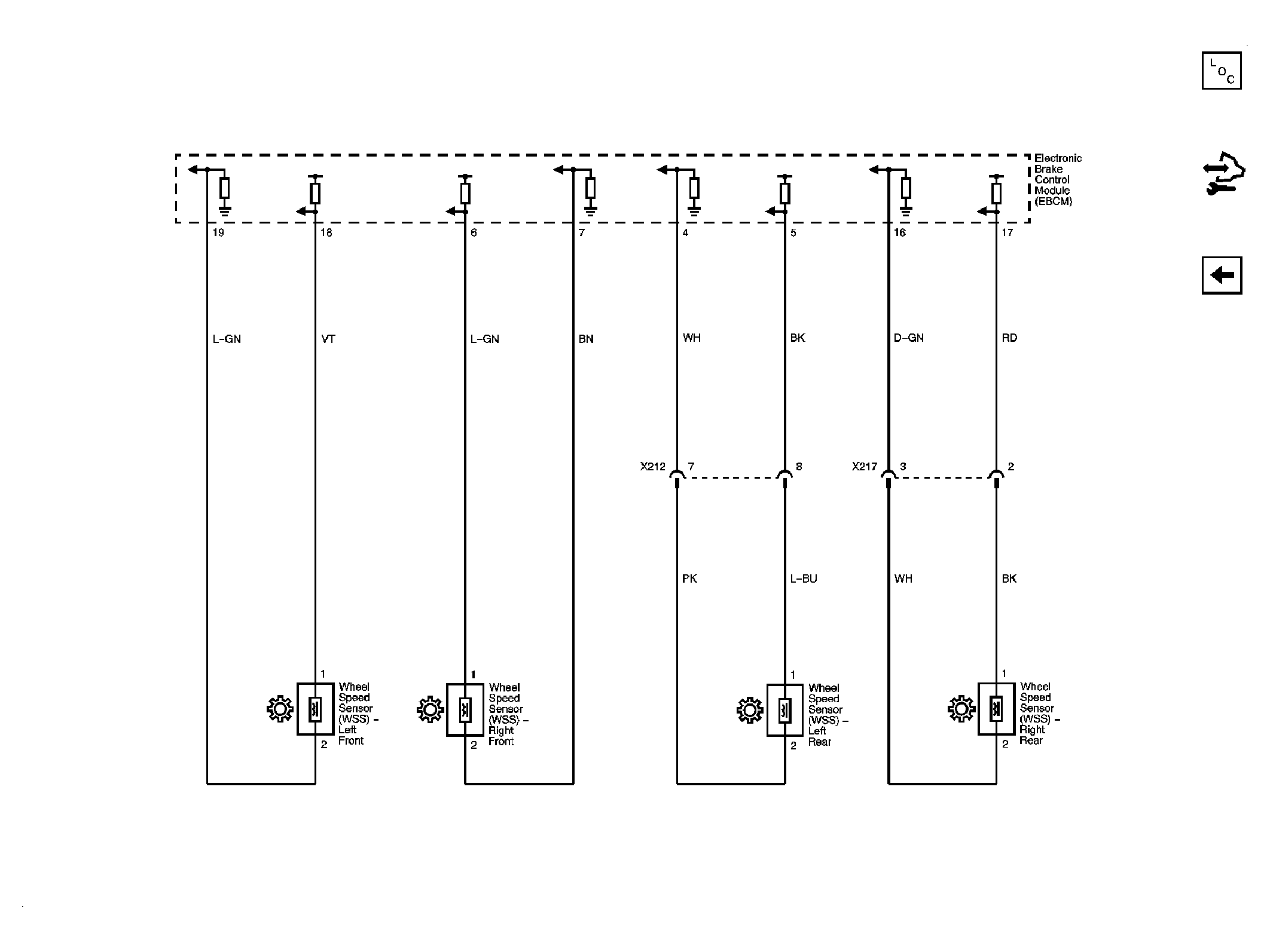

Fig 2: Wheel Speed Sensors
GM2234269Courtesy of GENERAL MOTORS CORP.
