Removal Procedure

  1. Remove the LH front seat. Refer to Front Seat Replacement - Bucket .
    2. Fig 1: Yaw Rate Sensor Bracket & Bolt
    GM839796Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts (1) and the yaw rate sensor bracket (2).

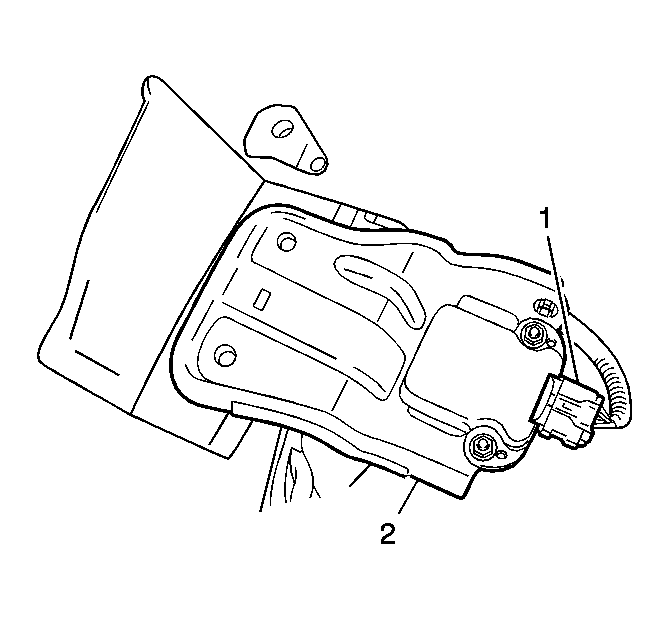

    3. Fig 2: Identifying Yaw Rate Sensor & Electrical Connector
    GM2023078Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the yaw rate sensor electrical connector (1).
  4. Remove the yaw rate sensor (2) from the vehicle.
