Removal Procedure

Fig 1: Fuel Tank Filler Pipe Protector & Protector Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the fuel tank filler pipe protector bolts (2) and remove the fuel tank filler pipe protector (1).
Remove the rear seat bottom and seat back. Refer to Rear Split Folding Seat Back Replacement .

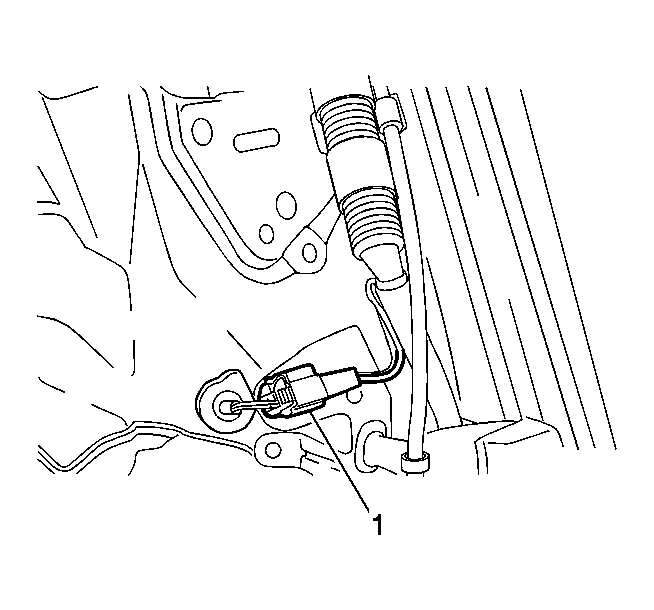

Fig 2: Identifying Wheel Speed Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

NOTE: The wheel speed sensor is serviceable only as an assembly. Do NOT attempt to service the sensor harness pigtail.

Disconnect the electrical connector (1) from the wheel speed sensor.
Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
Pull the sensor harness and grommet out through the body.

Fig 3: Speed Sensor Harness & Bolt

Courtesy of GENERAL MOTORS CORP.

Remove the bolt (2) which retains the wheel speed sensor harness (1) to the vehicle.

Fig 4: Speed Sensor Bolt & Nut

Courtesy of GENERAL MOTORS CORP.

Remove the bolt (1) and nut (2) which retains the wheel speed sensor harness to the upper arm and suspension member.

Fig 5: Speed Sensor & Retaining Bolt

Courtesy of GENERAL MOTORS CORP.

Remove the wheel speed sensor retaining bolt (1) and remove the wheel speed sensor (2) from suspension knuckle.
