Passenger Compartment/Roof Component Views

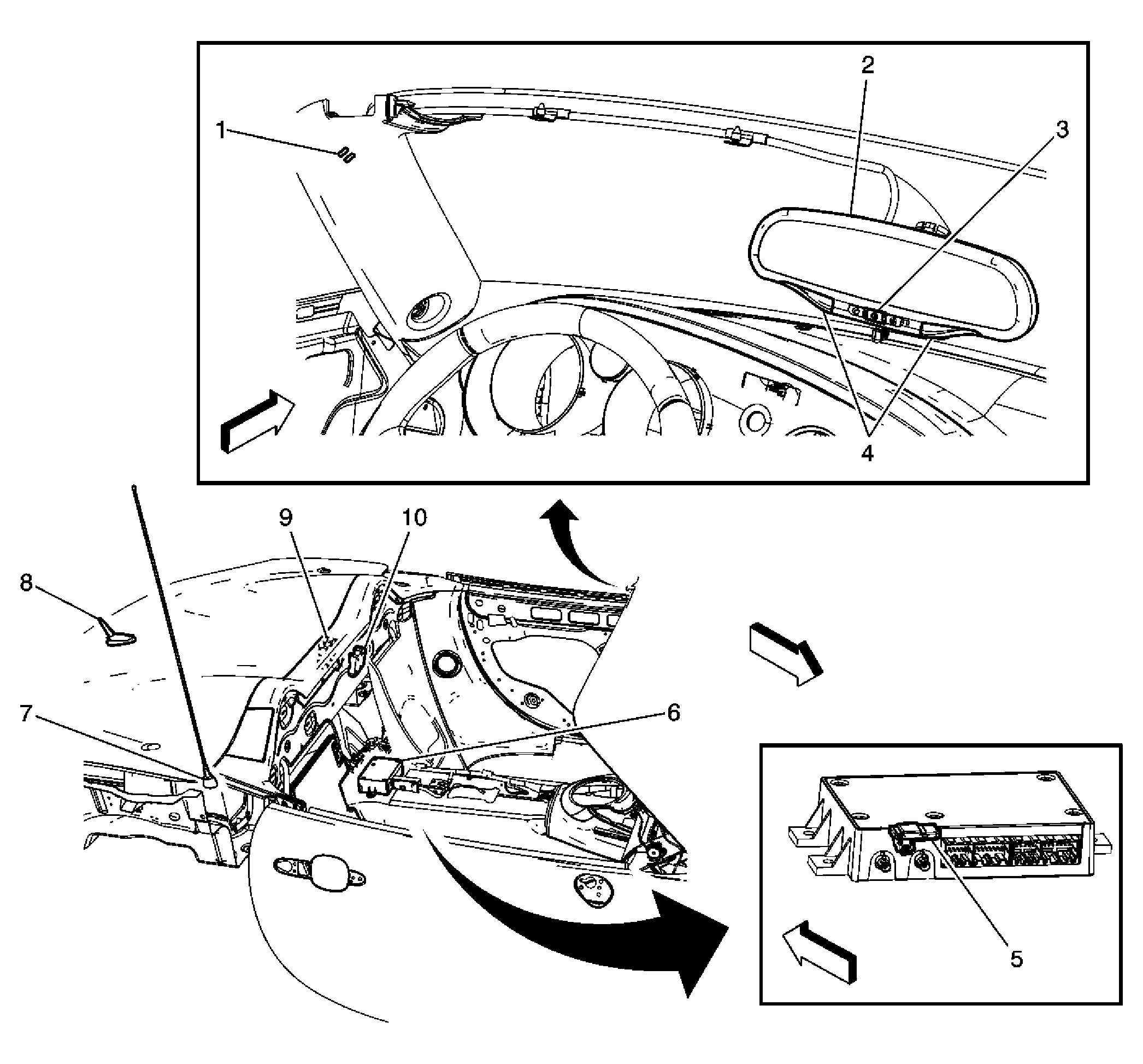

Fig 1: Identifying Cellular Communication Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Telephone Microphone (UE1)
2	Inside Rearview Mirror (ISRVM)
3	OnStar Button Assembly (UE1)
4	Courtesy/Reading Lamps - Left Front/Right Front
5	Wireless Communication Interface Module (UPF)
6	Vehicle Communication Interface Module (VCIM) (UE1)
7	Radio Antenna
8	Cellular and Navigational Antenna (UE1)/Digital Radio Antenna (U2K)
9	Remote Control Door Lock Receiver (RCDLR) (UE1)
10	Rear Compartment Lid Latch Release Actuator (Convertible)

Fig 2: Identifying Cellular Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Antenna

Fig 3: Identifying Entertainment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Left Tweeter
2	Cellular Telephone Microphone (UE1)
3	Steering Wheel Control Switch - Right (UK3)
4	Radio
5	Speaker - Right Tweeter
6	Windshield Side Molding Garnish - Right
7	Speaker - Right Front
8	Digital Radio Receiver (Convertible with U2K)
9	Radio Antenna
10	Speaker - Right Rear
11	Instrument Panel Body Harness
12	Speaker - Subwoofer (UQ3)
13	X401 (U2K)
14	Digital Radio Receiver (U2K)
15	Cellular and Navigational Antenna (UE1)/Digital Radio Antenna (U2K) (Convertible)
16	Digital Radio Receiver (Solstice Removable Hard Top with U2K)
17	Audio Amplifier (UQ3)
18	Speaker - Left Rear
19	Speaker - Left Front
20	Steering Wheel Control Switch - Left (K34)
21	Windshield Side Molding Garnish - Left
22	Horn Switch

Fig 4: Identifying Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X317
2	Seat Belt Switch - Driver Connector
3	Seat Belt Switch - Driver/Seat Belt Buckle - Driver
4	Seat Adjuster Switch - Driver (AF2)
5	Seat Front Vertical Motor - Driver (AF2)
6	J302

Fig 5: Identifying Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch - Passenger/Seat Belt Buckle - Passenger
2	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
3	Inflatable Restraint Passenger Presence System (PPS) Module

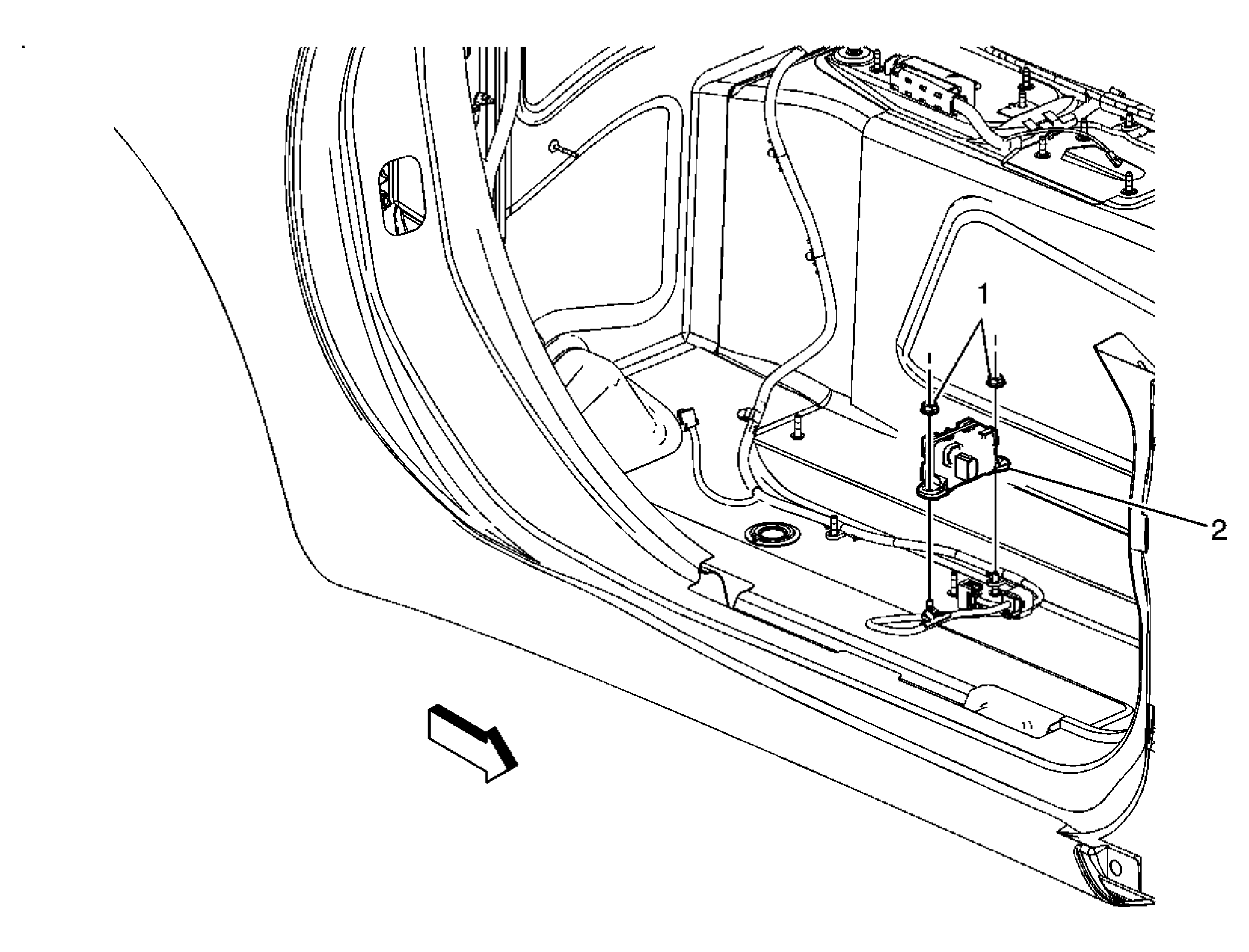

Fig 6: Identifying Yaw & Lateral Accelerometer Sensor Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Yaw and Lateral Accelerometer Sensor mounting Nuts
2	Yaw and Lateral Accelerometer Sensor Assembly

Fig 7: Identifying Driver & Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Retractor Pretensioner - Passenger Connector
2	Seat Belt Retractor Pretensioner - Passenger
3	Seat Belt Retractor Pretensioner - Driver
4	Seat Belt Retractor Pretensioner - Driver Connector
5	Seat Belt Switch - Driver
6	Seat Belt Switch - Passenger

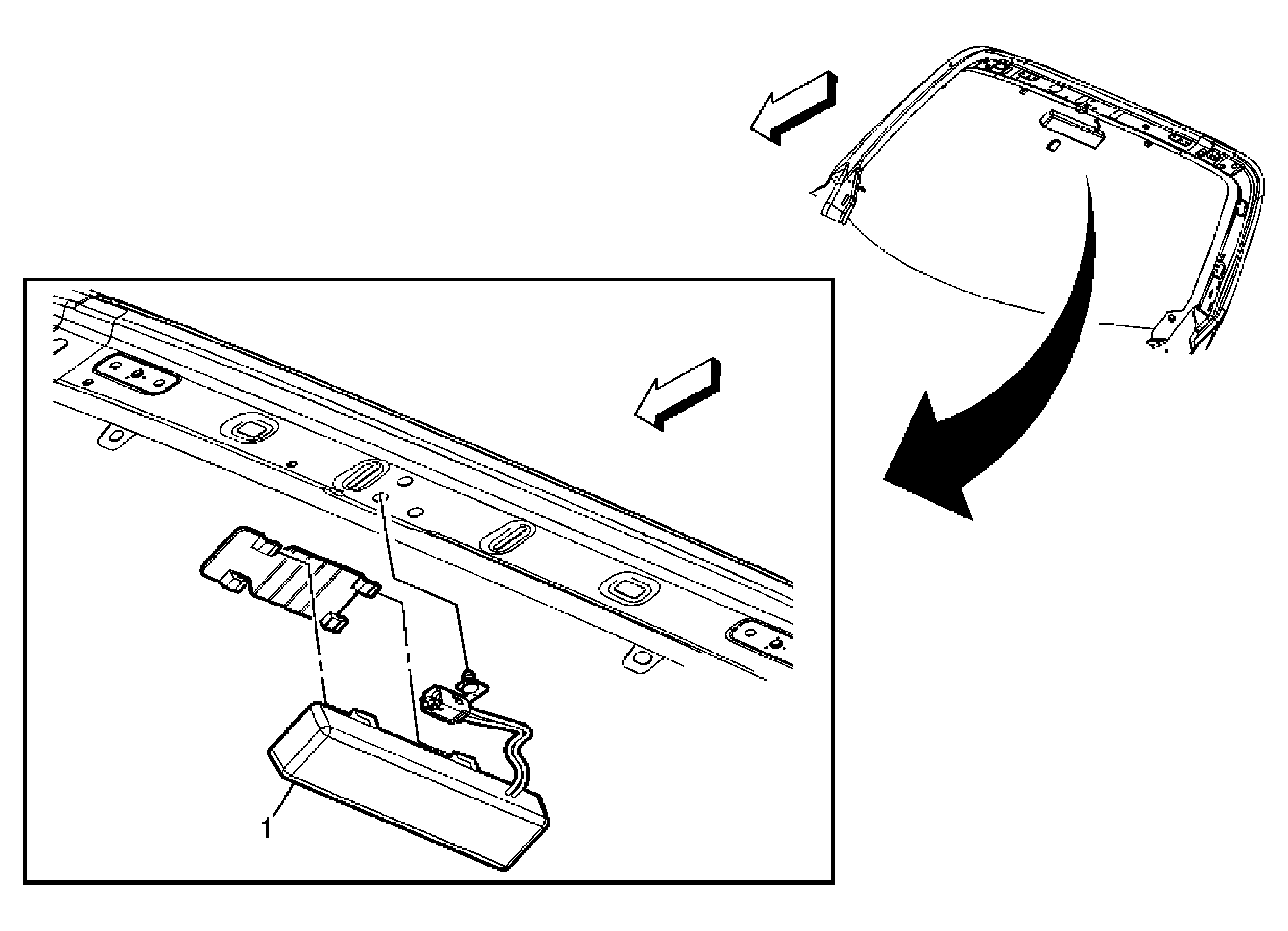

Fig 8: Identifying Center Of Rear Window (Convertible)

Courtesy of GENERAL MOTORS CORP.
