Defogger Schematics

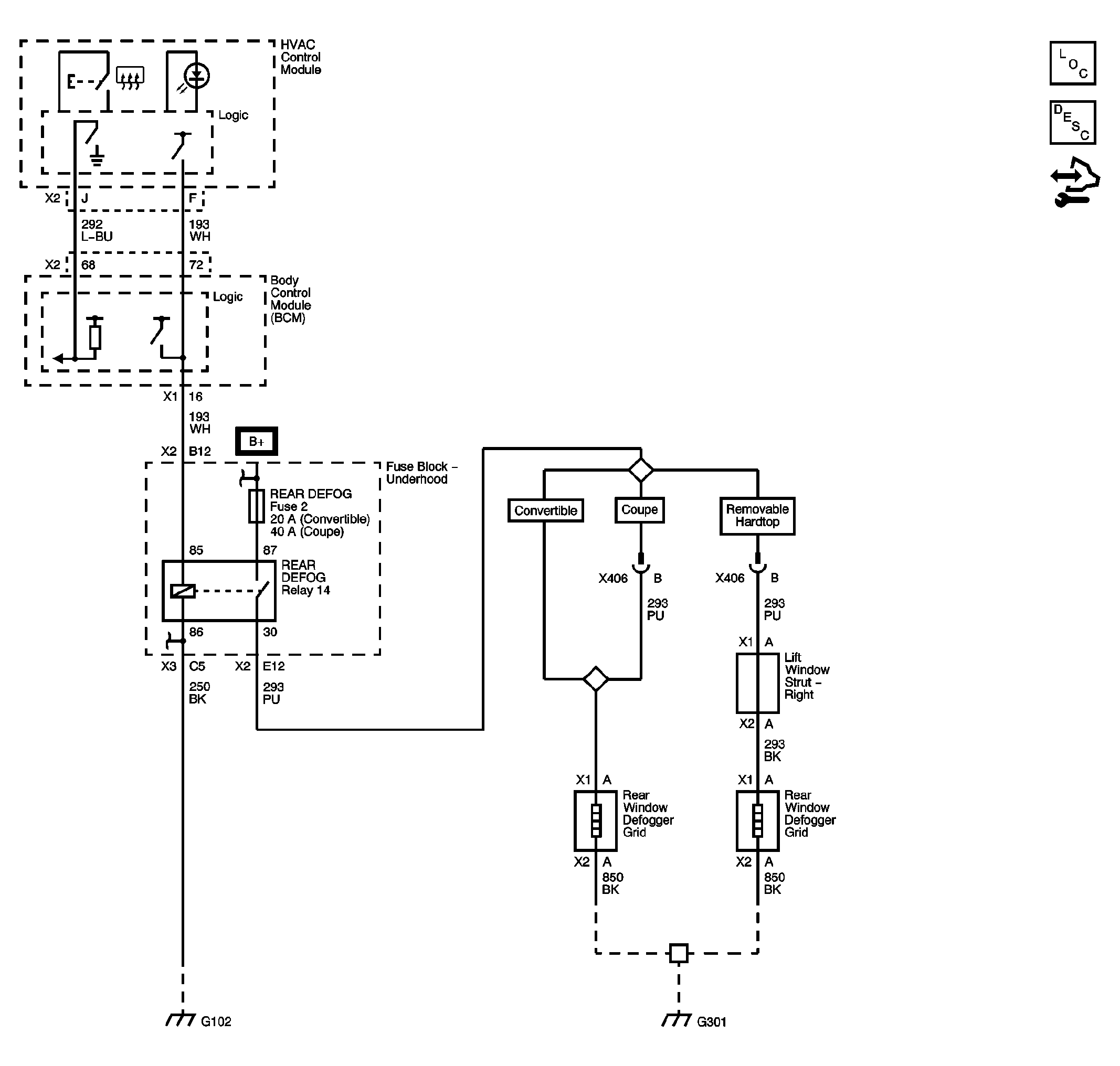

Fig 1: Rear Defogger Circuit Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
