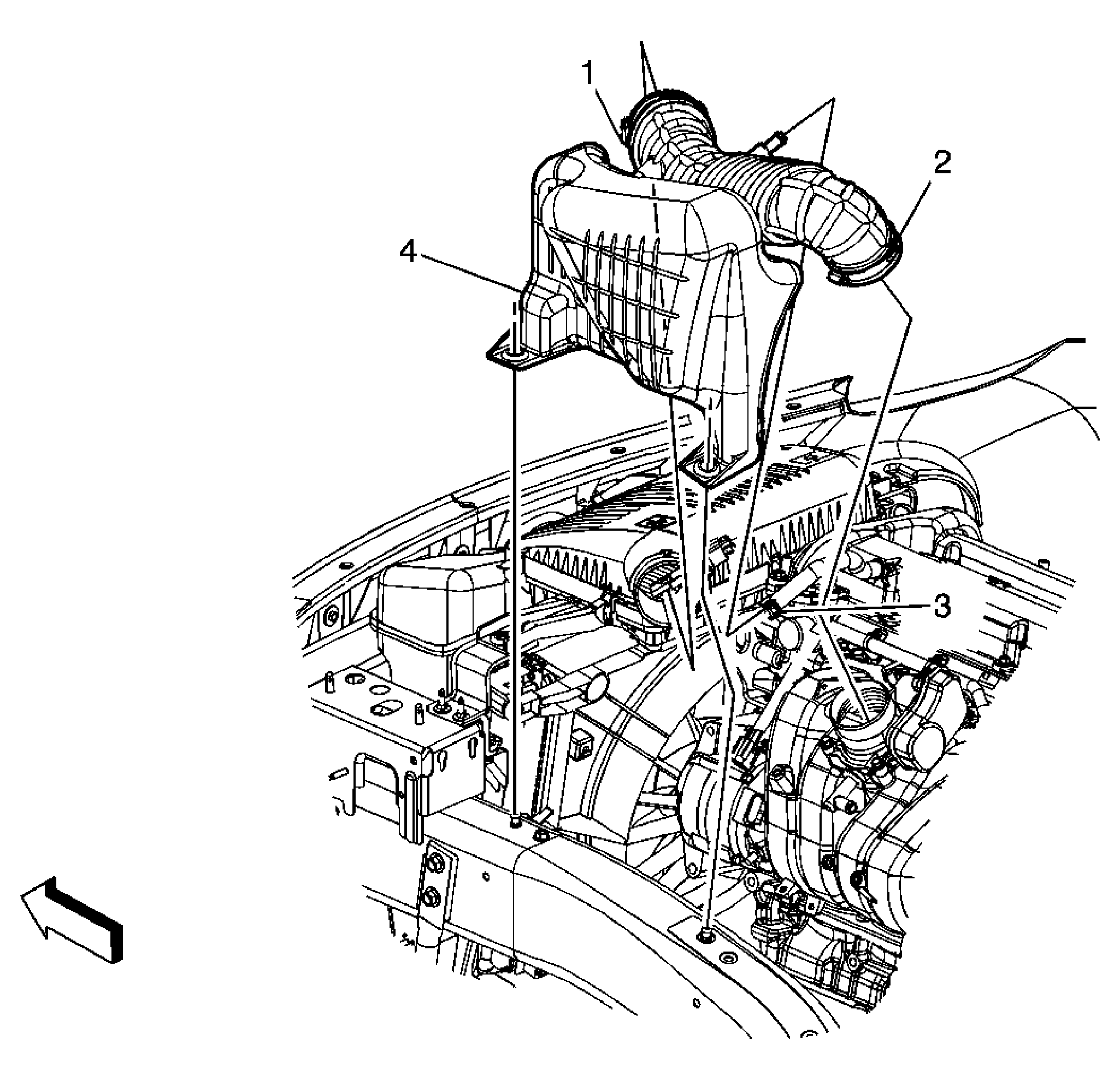

Air Cleaner Outlet Resonator Replacement
| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct Resonator Clamp
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 2 | Air Cleaner Outlet Duct Resonator Clamp Tighten: 9 N.m (80 lb in) |
| 3 | Positive Crankcase Ventilation Hose Clamp |
| 4 | Air Cleaner Outlet Duct Resonator Tip: Pull up on the outlet duct assembly in order to disengage the assembly from the studs. |
